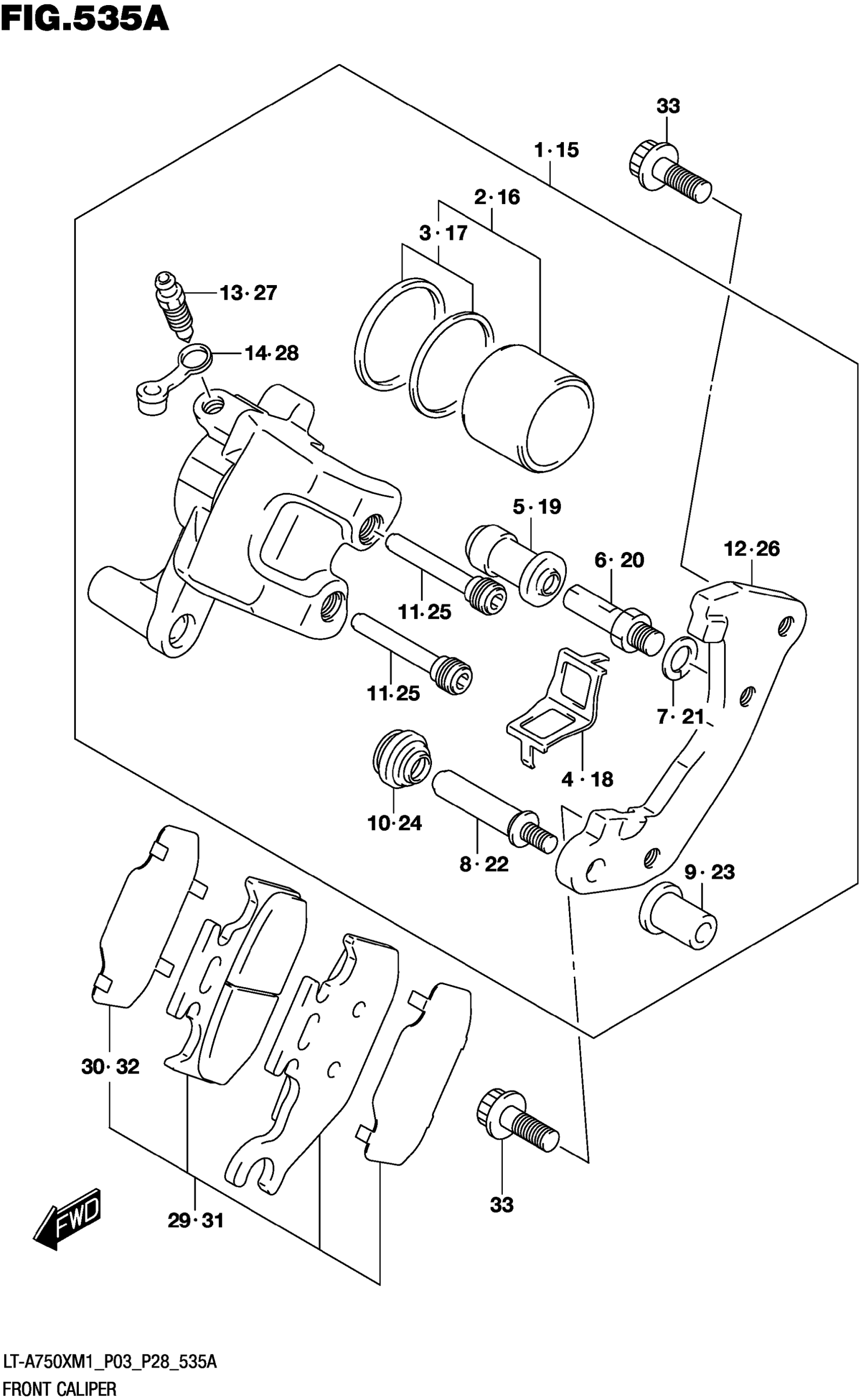

Suzuki LT-A750XM1 (2021) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-31G20-999

$377.22

2

.PISTON SET

59300-13810

$42.57

3

..SEAL SET,PISTON

69100-13820

$8.02

4

.SPRING

59315-27C00

$15.83

5

.BOOT

59386-13A00

$7.28

6

.BOLT

59382-13A00

$7.24

7

.WASHER

59314-13A00

$2.28

8

.PIN

59387-00B20

$17.46

9

.NUT

59388-00B20

$20.13

10

.BOOT

59303-14500

$5.06

11

.PIN,HANGER

59145-39D00

$24.33

12

.BRACKET RH

59151-31G20

Unavailable

13

.BLEEDER

59121-01A00

$7.99

14

.CAP,BLEEDER

59122-46H00

$4.17

15

CALIPER ASSY, FRONT LH

59300-31G20-999

$363.38

16

.PISTON SET

59300-13810

$42.57

17

..SEAL SET,PISTON

69100-13820

$8.02

18

.SPRING

59315-27C00

$15.83

19

.BOOT

59386-13A00

$7.28

20

.BOLT

59382-13A00

$7.24

21

.WASHER

59314-13A00

$2.28

22

.PIN

59387-00B20

$17.46

23

.NUT

59388-00B20

$20.13

24

.BOOT

59303-14500

$5.06

25

.PIN,HANGER

59145-39D00

$24.33

26

.BRACKET LH

59351-31G20

Unavailable

27

.BLEEDER

59121-01A00

$7.99

28

.CAP,BLEEDER

59122-46H00

$4.17

29

PAD & SHIM SET RH

59100-31890

$44.29

30

.SHIM

69132-28C00

$10.68

31

PAD & SHIM SET LH

59100-31800

$61.55

32

.SHIM

69132-28C00

$10.68

33

BOLT (8X20)

09106-08176

$4.42
