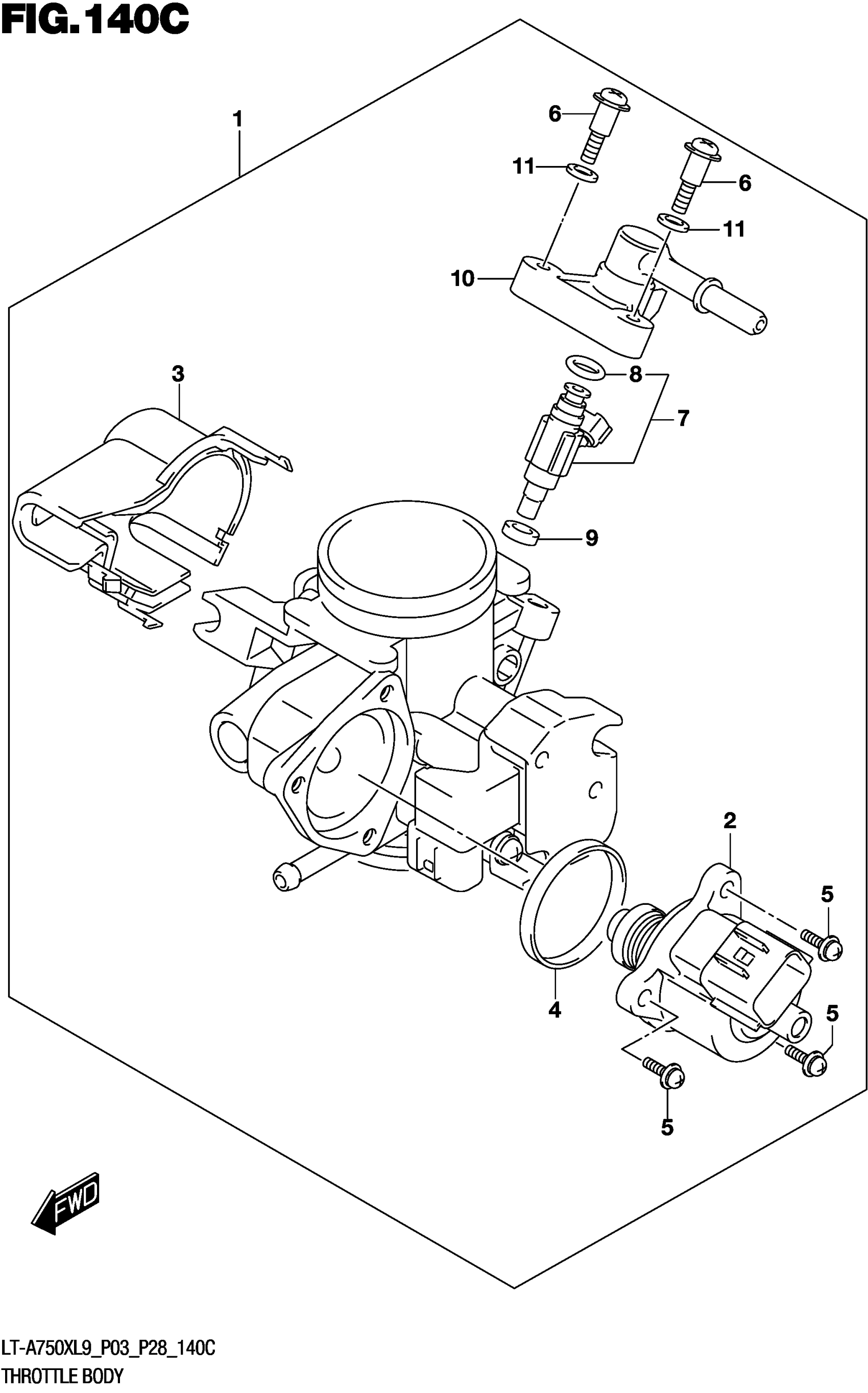

Suzuki LT-A750XL9 (2019) THROTTLE BODY (LT-A750XL9 P33) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-34K10

$695.33

2

.MOTER, ISC STEPPING

13520-31G00

$188.05

3

.COVER

13578-31G00

$18.22

4

.GASKET

18139-82K00

$11.53

5

.SCREW

13601-13G00

$3.33

6

SCREW

13601-11J00

$4.51

7

.INJECTOR ASSY

15710-31G10

$281.52

8

..O RING

15717-31G00

$11.66

9

SEAL

15722-29G00

$10.01

10

.DELIVERY PIPE

15731-31G10

$228.95

11

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52
