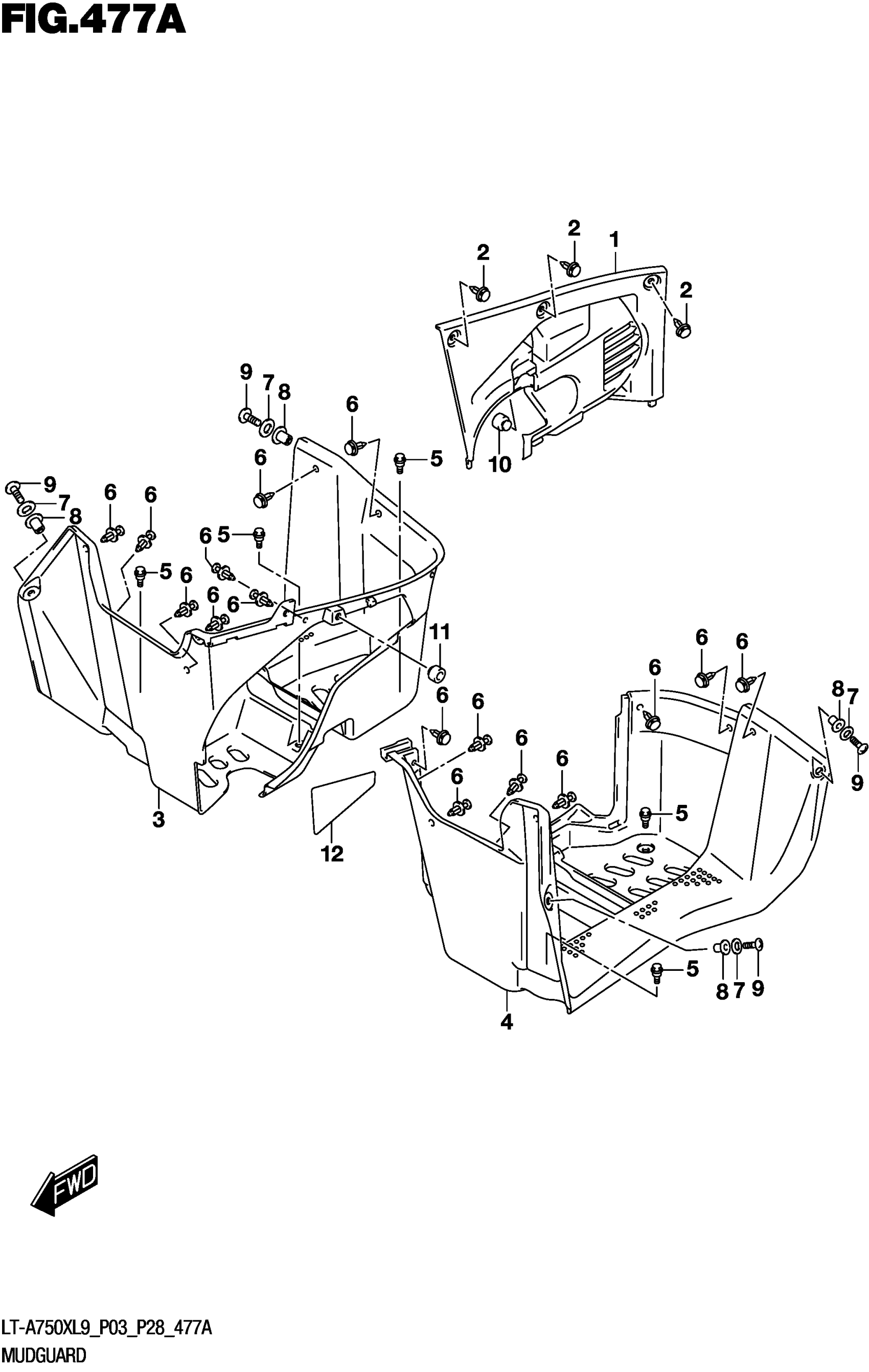

Suzuki LT-A750XL9 (2019) MUDGUARD Diagram

#

Description
Price

1

LID,FOOTREST GU This part replaces 63342-34K00.

63342-34K01-291

$77.62

2

CLIP

09409-08008

$1.87

3

MUDGUARD,FOOTRE This part replaces 63331-34K00.

63331-34K02-291

$31.71

4

MUDGUARD,FOOTRE This part replaces 63341-34K00.

63341-34K02-291

$68.50

5

BOLT (6X13.5)

09111-06088

$2.03

6

CLIP

09409-08008

$1.87

7

WASHER (5.5X20X1.4)

09160-05046

$1.92

8

NUT (M5)

09159-05019

$7.14

9

SCREW

02142-0520B

$1.78

10

CUSHION

09321-10019

$4.90

11

CUSHION

09321-10019

$4.90

12

SHIELD, SIDE COVER NO.1

63268-34K00

$14.28
