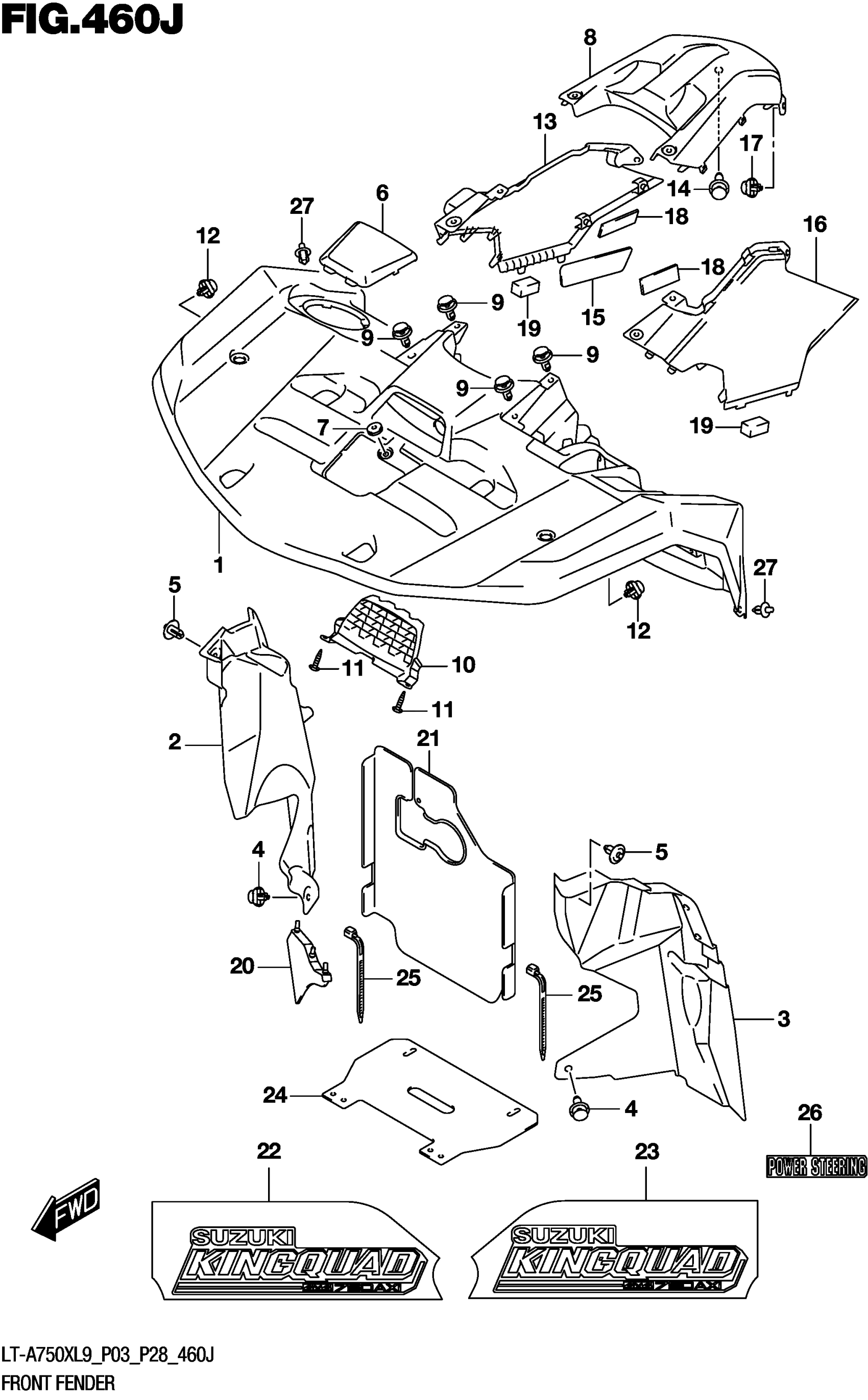

Suzuki LT-A750XL9 (2019) FRONT FENDER (LT-A750XPZL9 P33) Diagram

#

Description
Price

1-1

FENDER, FRONT (GREEN) This part replaces 53111-34K00-YLG.

53111-34K01-YLG

$676.98

1-2

FENDER, FRONT (WHITE)

53111-34K00-30H

$620.73

1-3

FENDER, FRONT (RED) This part replaces 53111-34K00-YT9.

53111-34K01-YT9

$686.78

1-4

FENDER, FRONT (BLACK)

53111-34K40-QFA

$931.10

1-5

FENDER, FRONT (BRONZE)

53111-34K40-QMA

$931.10

2

MUDFLAP, INNER RH This part replaces 53411-34K00.

53411-34K01

$22.53

3

MUDFLAP, INNER LH This part replaces 53421-34K00.

53421-34K01

$22.40

4

CLIP

09409-08008

$1.74

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

6-1

LID, FENDER FRONT (GREEN) This part replaces 53341-31G03-YLG.

53341-31G06-YLG

$9.28

6-2

LID,FRONT FENDE This part replaces 53341-31G03-30H.

53341-31G06-30H

$14.15

6-3

LID, FENDER FRONT (RED) This part replaces 53341-31G03-YT9.

53341-31G06-YT9

$9.57

6-4

LID (BLACK) This part replaces 53341-31G52-QFA.

53341-31G60-QFA

$134.23

6-5

LID,FENDER FRONT (BRONZE) This part replaces 53341-31G52-QMA.

53341-31G53-QMA

$85.07

7

CUSHION (8x26x7)

09320-08018

$2.80

8

FENDER, CENTER This part replaces 53119-34K00.

53119-34K04

$135.17

9

CLIP

09409-08008

$1.74

10

COVER, INNER

53212-34K00

$12.15

11

SCREW

03541-0516A

$1.37

12

CLIP

09409-08008

$1.74

13-1

COVER, SIDE RH (GREEN)

53112-34K00-YLG

$112.77

13-2

COVER, SIDE RH (RED) This part replaces 53112-34K00-YT9.

53112-34K03-YT9

$90.85

13-3

COVER, SIDE RH (WHITE)

53112-34K00-30H

$123.73

13-4

COVER, SIDE RH (BLACK) This part replaces 53112-34K20-QFA.

53112-34K21-QFA

$232.52

13-5

COVER,SIDE,R (BRONZE) This part replaces 53112-34K20-QMA.

53112-34K21-QMA

$238.60

14

CLIP

09409-08008

$1.74

15

SHIELD, SIDE COVER NO.2

53113-34K00

$9.85

16-1

COVER, SIDE LH (GREEN)

53122-34K00-YLG

Unavailable

16-2

COVER, SIDE LH (RED)

53122-34K00-YT9

Unavailable

16-3

COVER, SIDE LH (WHITE)

53122-34K00-30H

$27.40

16-4

COVER, SIDE LH (BLACK)

53122-34K20-QFA

$199.30

16-5

COVER, SIDE LH (BRONZE)

53122-34K20-QMA

$204.50

17

CLIP

09409-08008

$1.74

18

CUSHION, COVER SIDE NO.2

53115-34K00

Unavailable

19

CUSHION, COVER SIDE

53114-34K00

$1.66

20

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$17.47

21

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$33.97

22

TAPE,COVER SIDE RH (GRAY,GRAY

68151-34K00-BM6

$22.02

23

TAPE,COVER SIDE LH (GRAY,GRAY

68152-34K00-BM6

$22.02

24

GUARD, RADIATOR

53113-31G10

$21.93

25

CLAMP (L:125)

09407-14403

$2.24

26

EMBLEM, POWER-STEERING (GRAY) This part replaces 68151-31GD0-BM7.

68151-31GD1-BM7

$11.32

26

EMBLEM, POWER-STEERING (GRAY) This part replaces 68151-31GD0-BM7.

68151-31GD1-BM7

$11.32

27

CLIP

09409-08008

$1.74
