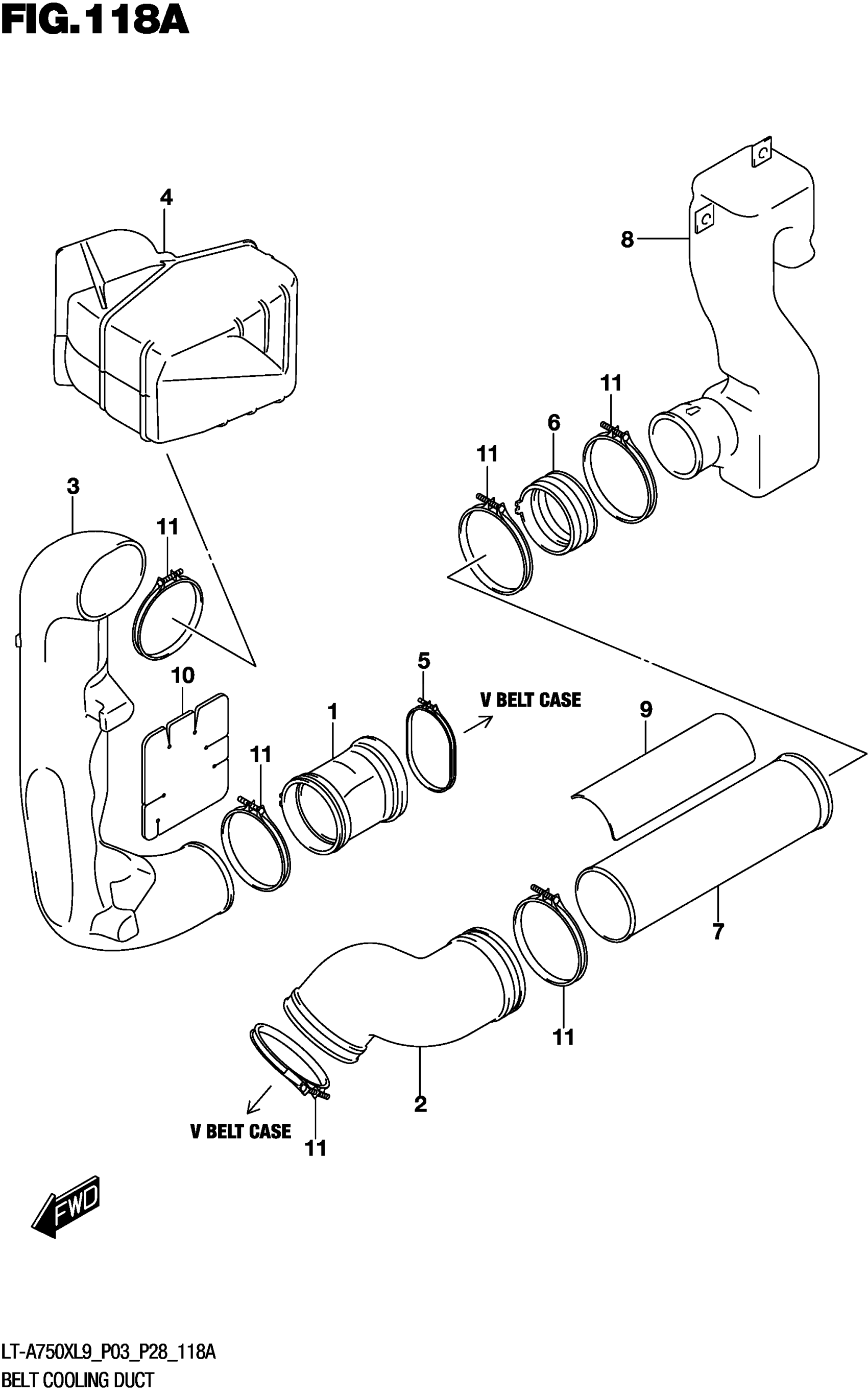

Suzuki LT-A750XL9 (2019) BELT COOLING DUCT Diagram

#

Description

Price

1

CONNECTOR,CLG DUCT FRONT This part replaces 11385-31G00.

11385-31G01

$10.94

2

CONNECTOR, CLG DUCT REAR This part replaces 11386-31G00.

11386-31G01

$16.64

3

DUCT, BELT CLG FR NO.1

11387-31G00

$55.05

4

DUCT, BELT CLG FRONT NO.2

11388-34K00

$38.02

5

CLAMP,BELT CLG DUCT FR

11389-09F50

$7.73

6

CONNECTOR, CLG DUCT RR NO.2 This part replaces 11397-31G00.

11397-31G01

$12.35

7

DUCT, BELT CLG RR NO.1

11398-31G00

$55.95

8

DUCT, BELT CLG REAR NO.2

11399-34K00

$71.70

9

SHIELD, BELT CLG DUCT REAR

11487-31G40

$12.05

10

SHIELD, BELT CLG DUCT FRONT

11488-31G40

$10.62

11

CLAMP This part replaces 09402-82207.

09402-82208

$5.58
