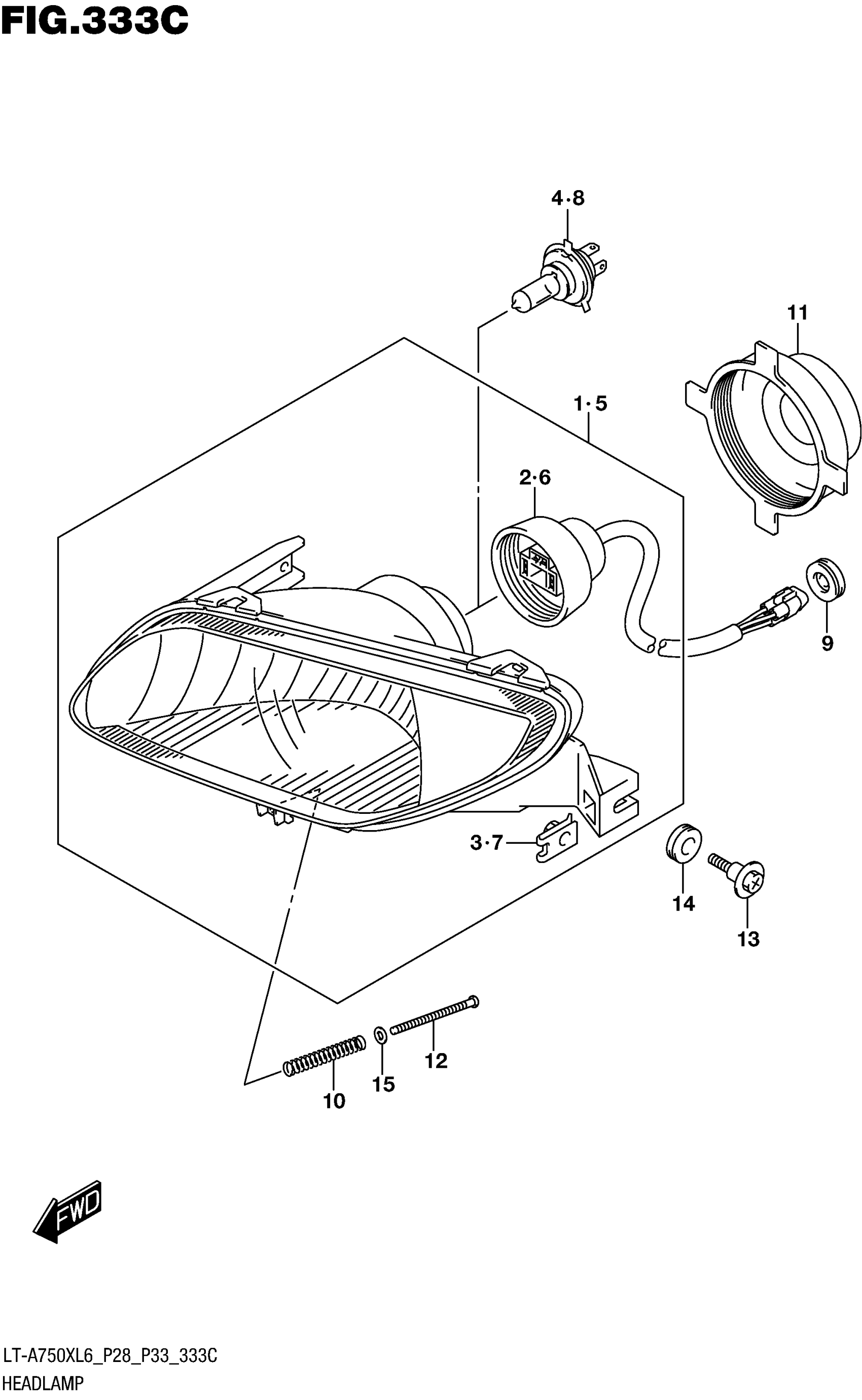

Suzuki LT-A750XL6 (2016) HEADLAMP (LT-A750XZL6 P33) Diagram

#

Description

Price

1

HEADLAMP ASSY RH

35100-31G92-999

$102.70

2

.CORD ASSY RH

35171-31GM1

$30.10

3

.NUT

35157-31G90

$5.30

4

BULB (12V,35/35W)

09471-12101

$64.80

5

HEADLAMP ASSY LH

35300-31G92-999

$102.70

6

.CORD ASSY LH

35171-31GH1

$38.48

7

.NUT

35157-31G90

$5.30

8

BULB (12V,35/35W)

09471-12101

$64.80

9

GROMMET

09308-07011

$2.62

10

SPRING, HEADLAMP ADJUST

35154-31300

$3.70

11

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

12

SCREW (4X50)

09125-04031

$2.28

13

SCREW (6X22.5)

09139-06118

$3.25

14

CUSHION

09320-10501

$6.23

15

WASHER

08322-0104A

$1.91
