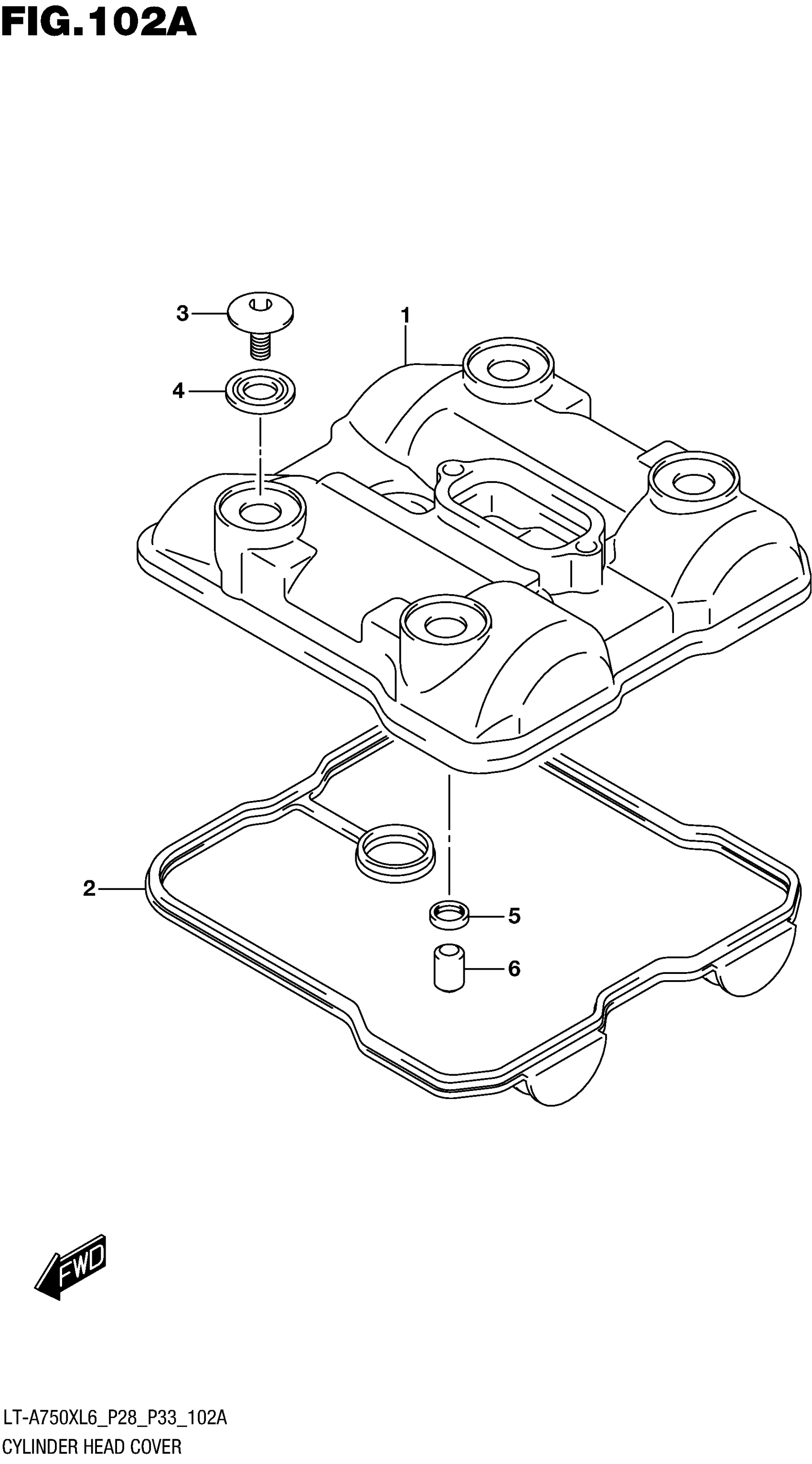

Suzuki LT-A750XL6 (2016) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER,CYLINDER HEAD

11171-31G50

$255.75

2

GASKET, CYLINDER HEAD COVER

11173-31G00

$30.28

3

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.07

4

WASHER, CYL HEAD COVER (L:5.5

11191-27E00

$3.72

5

GASKET, 2ND AIR PASSAGE

11182-35F10

$4.11

6

PIN (8.2X10X13)

09206-10016

$7.36
