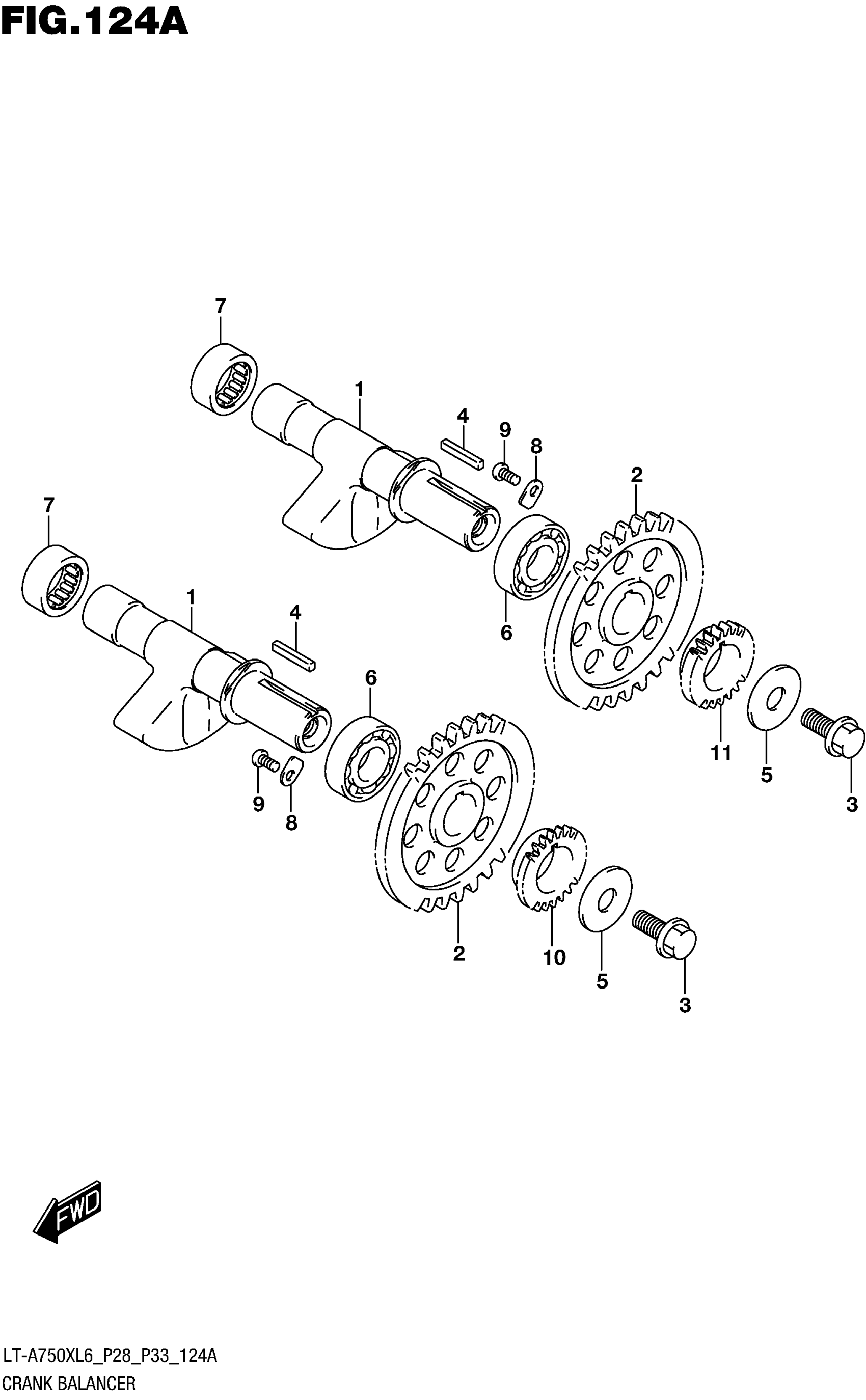

Suzuki LT-A750XL6 (2016) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER,CRANK

12651-31G02

Unavailable

2

GEAR, CRANK BALANCER DRIVEN

12666-31G11

$163.57

2

(NT:43)

12666-31G11

$163.57

3

BOLT (10X20)

09103-10290

$4.32

4

KEY

09421-04005

$3.15

5

WASHER

08211-10305

$4.25

6

BEARING (20X42X12)

09262-20137

$38.93

7

BEARING (20X28X16)

09263-20110

$33.75

8

RETAINER, CRANK BALANCER BRG

24741-21A00

$2.81

9

SCREW (6X12)

09125-06122

$2.44

10

SPROCKET, OIL PUMP DRIVE

16321-31G00

$52.23

10

(NT:21)

16321-31G00

$52.23

11

GEAR, WATER PUMP DRIVE

17451-31G00

Unavailable

11

(NT:17)

17451-31G00

Unavailable
