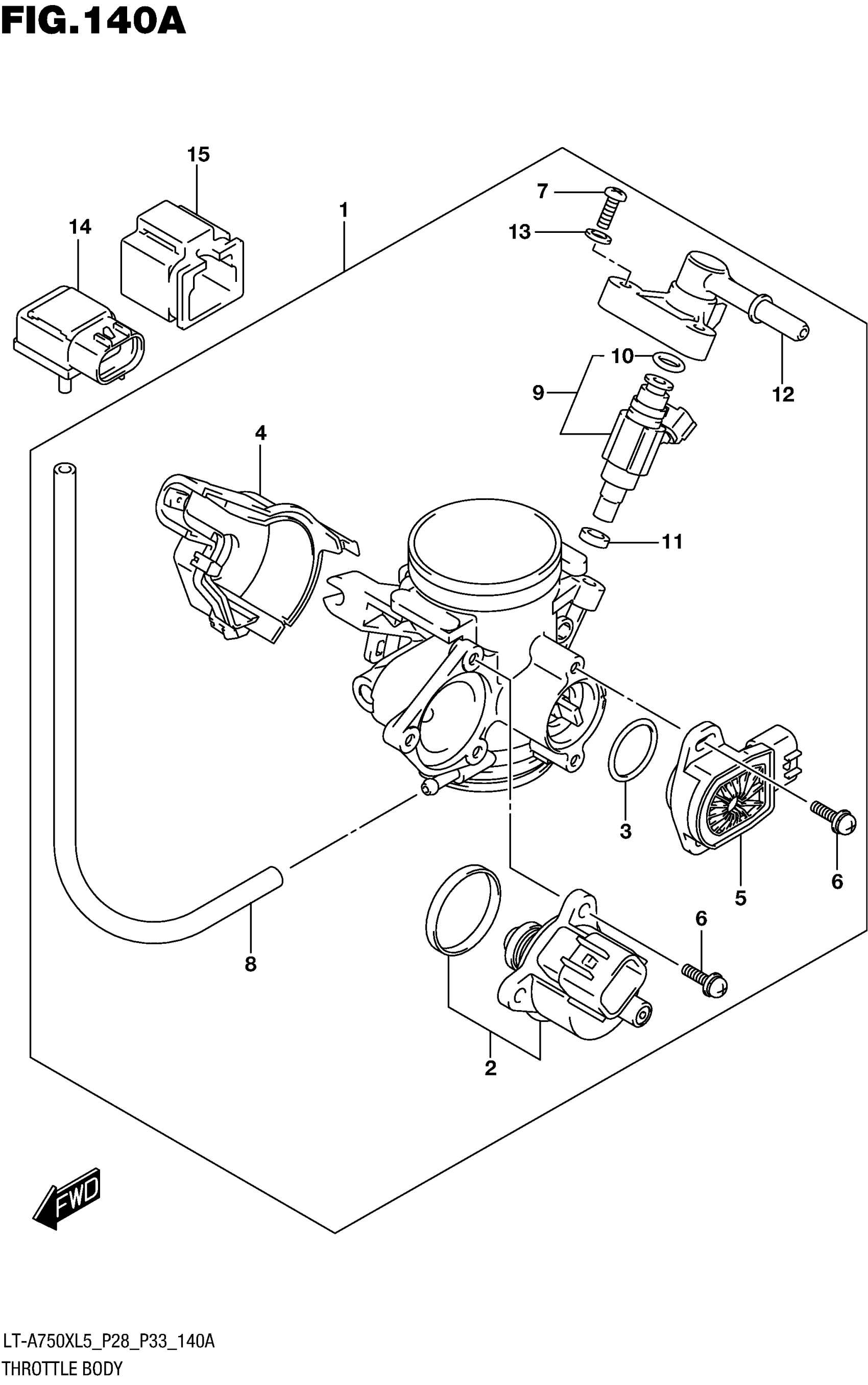

Suzuki LT-A750XL5 (2015) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-31G10

$886.28

2

MOTOR, ISC STEPPING

13520-31G00

$188.05

3

.O-RING

13575-31G00

$9.21

4

COVER

13578-31G00

$18.22

5

SENSOR ASSY

13580-31G00

$188.39

6

SCREW

13601-13G00

$3.33

7

SCREW

13601-11J00

$4.51

8

HOSE This part replaces 13683-10F70.

13683-10F71

$12.53

9

INJECTOR ASSY

15710-31G10

$281.52

10

O RING

15717-31G00

$11.66

11

SEAL

15722-29G00

$10.01

12

DELIVERY PIPE

15731-31G10

$228.95

13

PACKING This part replaces 13602-29G00.

13602-29G01

$2.52

14

SENSOR, AIR PRESSURE

15620-10G00

$250.95

15

HOLDER, AIR PRESSURE

15625-10G00

$14.00
