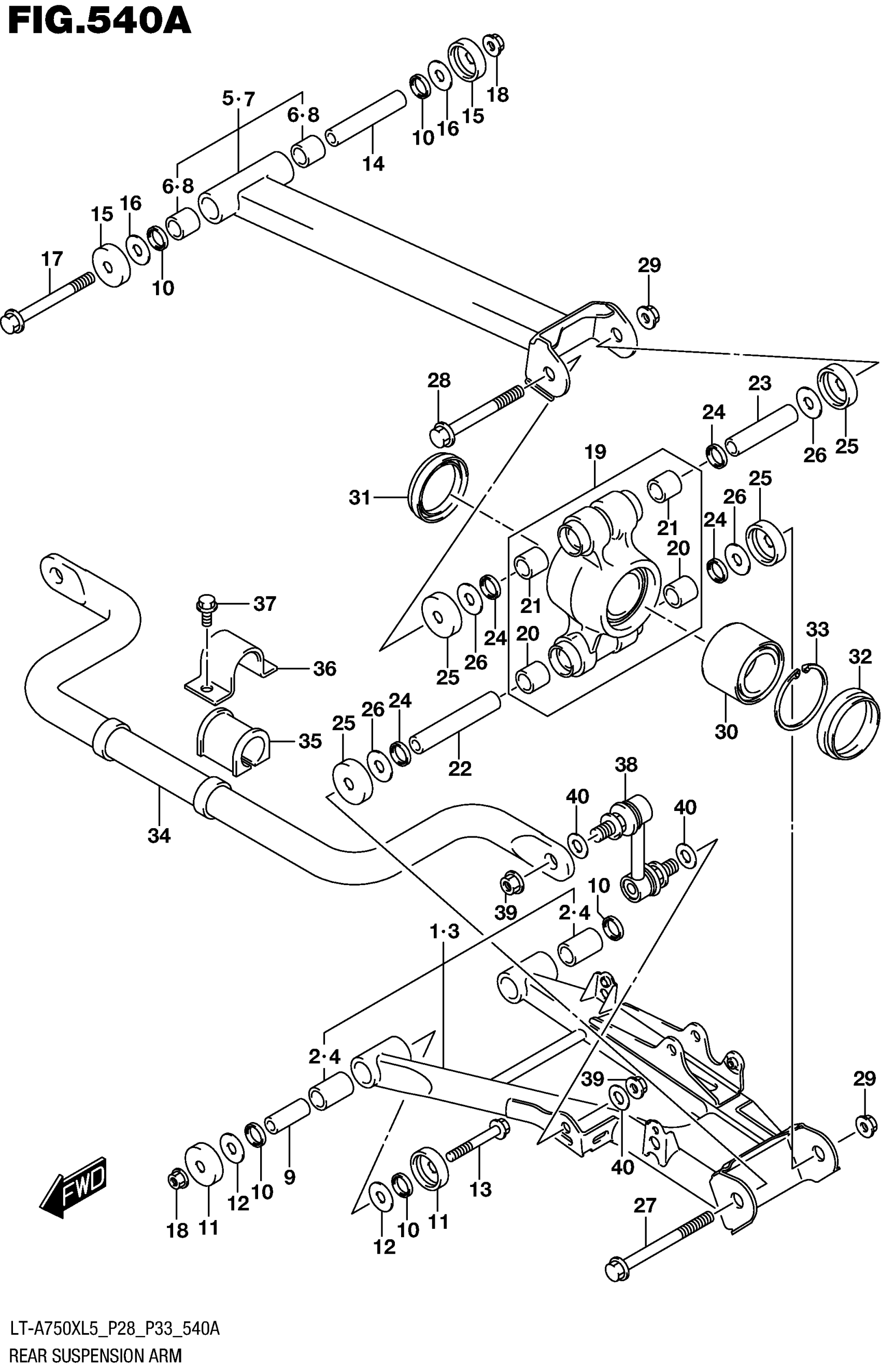

Suzuki LT-A750XL5 (2015) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION LOW, RH

61510-31821

$337.35

2

BUSH, RR KNUCKLE UPPER

51236-31G00

$16.84

3

ARM SET, RR SUSPENSION LOW, LH

61520-31821

$343.73

4

BUSH, RR KNUCKLE UPPER

51236-31G00

$16.84

5

ARM SET, RR SUSPENSION UP, RH

61530-31830

$223.92

6

BUSH, RR KNUCKLE LOWER

51236-31G00

$16.84

7

ARM SET, RR SUSPENSION UP, LH

61540-31830

$219.68

8

BUSH, RR KNUCKLE LOWER

51236-31G00

$16.84

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$15.68

10

SEAL, RR SPNSN ARM INNER DUST

52454-45G00

$7.44

11

SEAL, RR SPNSN ARM LOWER DUST

51255-18900

$4.48

12

WASHER

08211-10281

$2.03

13

BOLT (10X70)

09103-10392

$4.90

14

SPACER, RR SPNSN ARM UPPER

61554-31G00

$19.66

15

SEAL, RR SPNSN ARM UPPER DUST

51255-31G00

$16.82

16

WASHER

08211-10281

$2.03

17

BOLT (10X120)

09103-10388

$5.78

18

NUT

09159-10115

$3.55

19

KNUCKLE SET, RR SUSPENSION

61600-31830

$371.53

20

BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.84

21

BUSH, RR KNUCKLE UPPER

61551-31G10

$12.63

22

SPACER, RR KNUCKLE LOWER

61554-31G00

$19.66

23

SPACER, RR KNUCKLE UPPER

61553-31G10

$20.80

24

SEAL, RR KNUCKLE INNER DUST

52454-45G00

$7.44

25

SEAL, RR KNUCKLE DUST

51255-18900

$4.48

26

WASHER

08211-10281

$2.03

27

BOLT (10X120)

09103-10388

$5.78

28

BOLT (10X96)

09103-10387

$7.58

29

NUT

09159-10115

$3.55

30

BEARING, RR HUB This part replaces 43440-58J00.

43440-58J01

$72.80

31

SEAL, REAR HUB INNER DUST

61615-31G00

$20.96

32

SEAL, REAR HUB OUTER DUST

61616-31G00

$18.59

33

CLIP

08331-4162A

$3.89

34

BAR, RR STABILIZER

61651-31G10

$219.12

35

BUSH, RR STABILIZER This part replaces 61652-31G20.

61652-34K00

$7.22

36

PLATE, RR STABILIZER

42415-66D00

$10.48

37

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

38

JOINT, RR STABILIZER

61660-31G20

$78.81

39

NUT

09159-10223

$4.37

40

WASHER (10.5X22X2.3)

09160-10039

$2.26
