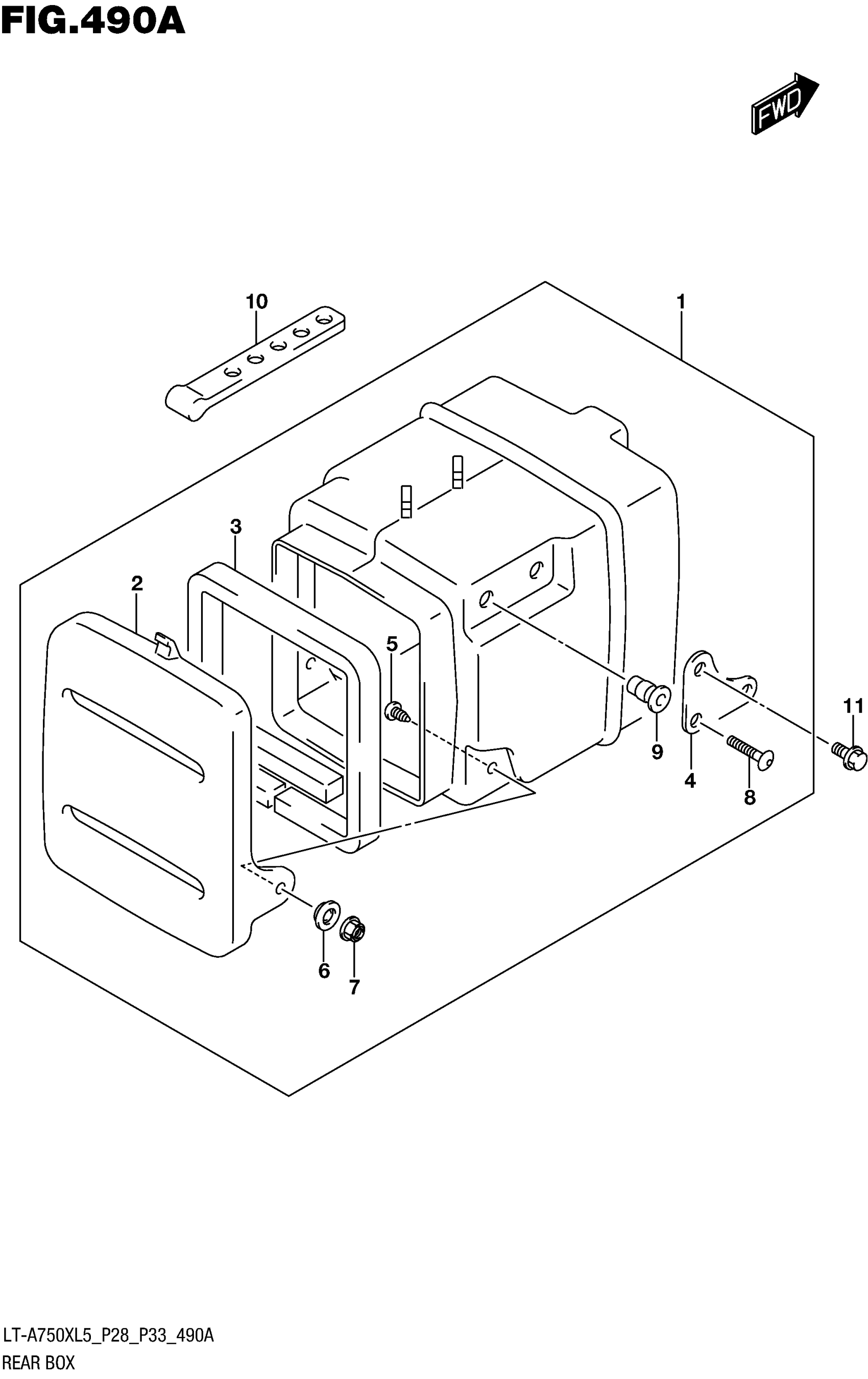

Suzuki LT-A750XL5 (2015) REAR BOX Diagram

#

Description
Price

1

BOX ASSY,REAR This part replaces 93100-31G00.

93100-31GA2

$118.90

2

LID

93112-31G00

$29.48

3

.CUSHION, REAR BOX This part replaces 93114-31G00.

93114-31GA1

$23.13

4

BRACKET

93113-31G00

Unavailable

5

SCREW

02142-0616B

$1.78

6

WASHER This part replaces 09169-06045.

09169-06055

$2.27

7

NUT

08319-3106A

$2.03

8

SCREW

02142-0520B

$1.78

9

NUT

09159-05019

$7.14

10

BAND, BOX

93191-09F20

$12.65

11

BOLT

01547-0610B

$2.45
