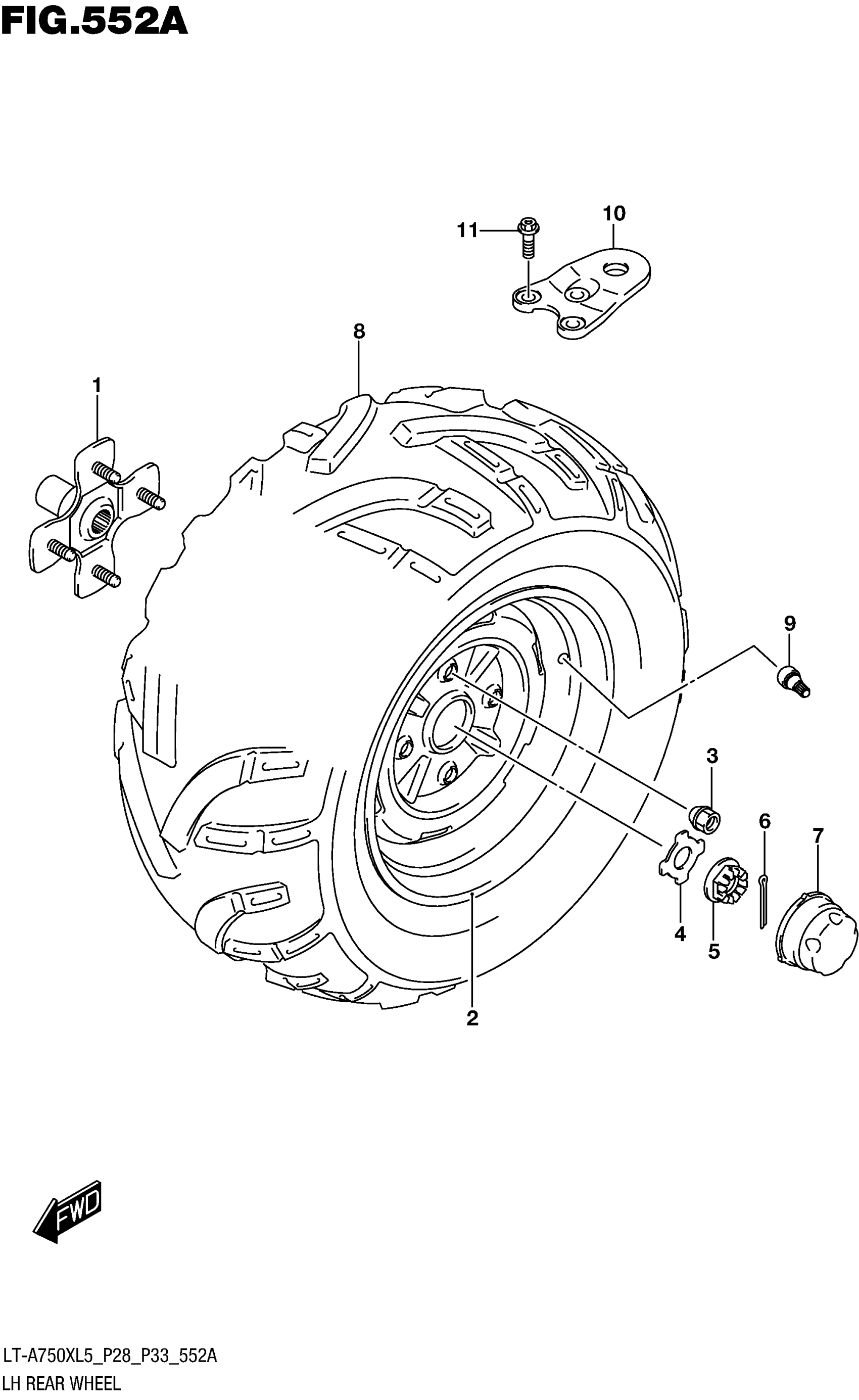

Suzuki LT-A750XL5 (2015) LH REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-31G10

$247.50

2

RIM, REAR WHEEL (12X7.5AT) (BLACK)

65310-31G50-291

Unavailable

3

NUT

09159-10114

$4.67

4

WASHER, HUB

64723-03G00

$23.48

5

NUT

09141-20008

$17.00

6

COTTER PIN

04111-4035A

$1.37

7

CAP,WHEEL CENTER

54725-09F01

$9.11

8

TIRE, REAR (AT25X10-12)

65110-31G20

Unavailable

9

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

10

PLATE, TRAILER TOW

95211-31G00

$43.30

11

BOLT (10X30)

09103-10366

$2.95
