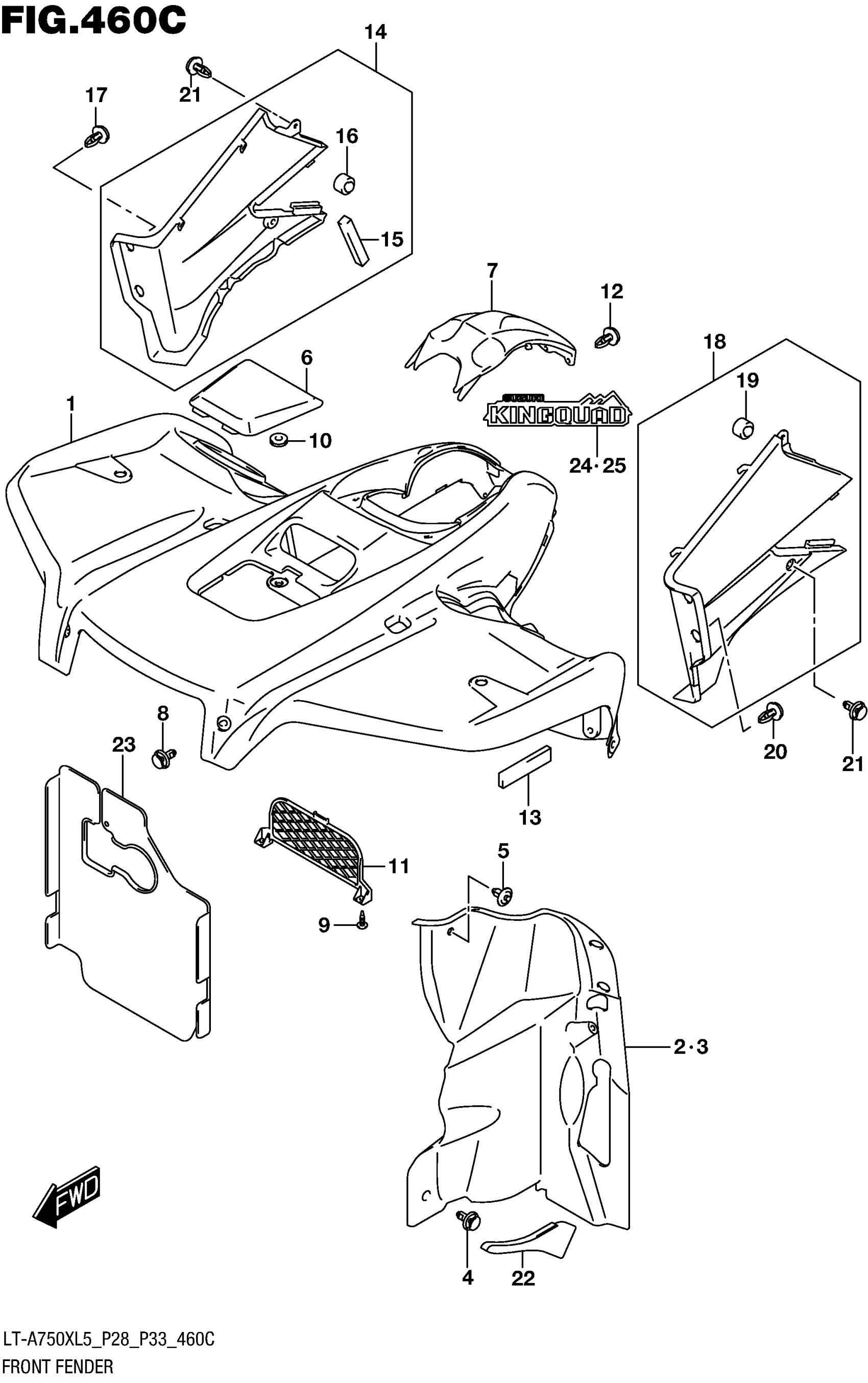

Suzuki LT-A750XL5 (2015) FRONT FENDER (LT-A750XZL5 P28) Diagram

#

Description
Price

1

FENDER, FRONT (CAMOUFLAGE) This part replaces 53111-31GC3-PHW.

53111-31G41-PHW

$816.60

1

FENDER,FRONT This part replaces 53111-31G50-PGR.

53111-31G60-PGR

$535.65

2

MUDFLAP, FENDER INNER RH

53411-31G02

$28.04

3

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$21.07

4

CLIP

09409-08335

$2.44

5

CLIP

09409-07333

$2.29

6

LID (CAMOUFLAGE) This part replaces 53341-31GC2-PHW.

53341-31GC4-PHW

$62.42

6

LID (RED)

53341-31G51-PGR

Unavailable

7

FENDER, CENTER (CAMOUFLAGE)

53119-31GC2-PHW

$104.88

7

FENDER, CENTER (RED)

53119-31G50-PGR

$165.62

8

CLIP

09409-08335

$2.44

9

SCREW

03241-0516A

$1.23

10

CUSHION

09320-08018

$2.80

11

COVER,INNER This part replaces 53212-31G01.

53212-31G03

$17.20

12

CLIP

09409-08335

$2.44

13

CUSHION, FENDER SIDE This part replaces 53145-07G10.

53145-07GA0

$3.18

14

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$38.63

15

CUSHION, COVER SIDE

53146-05G00

$8.21

16

CUSHION

09321-10019

$4.42

17

CLIP

09409-08335

$2.44

18

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$86.55

19

CUSHION, COVER SIDE

53146-05G00

$8.21

20

CLIP

09409-08335

$2.44

21

CLIP

09409-08335

$2.44

22

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$17.47

23

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$33.97

24

EMBLEM,FR FENDE This part replaces 68151-31GC0-EFG.

68151-31GC1-EFG

$53.97

25

EMBLEM,LH This part replaces 68152-31GC0-EFG.

68152-31GC1-EFG

$53.97
