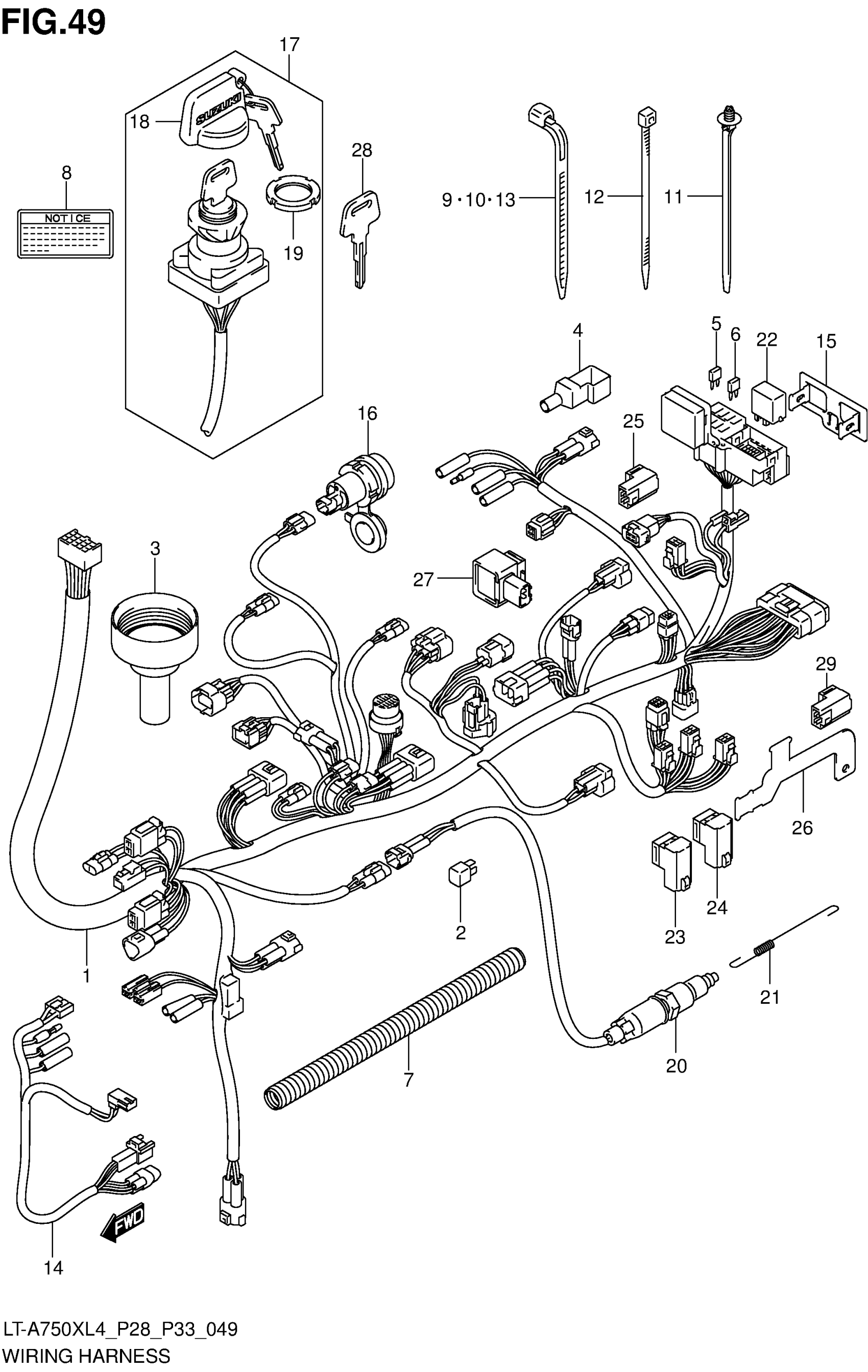

Suzuki LT-A750XL4 (2014) WIRING HARNESS (LT-A750XL4 P33) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-31GD0.

36610-31GD1

$698.70

2

RECTIFIER ASSY

32800-16A00

$23.07

3

COVER, SPEED

36618-31G00

Unavailable

4

COVER, CONNECTOR

36618-31G10

$9.30

5

FUSE (10A)

09481-10501

$2.06

6

FUSE (15A)

09481-15501

$2.02

7

GUIDE, WIRING HARNESS

36619-31G00

$18.08

8

LABEL, POWER SOURCE TERMINAL

38852-09F50

$7.27

9

CLAMP (L:95)

09407-11401

$2.63

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:154)

09407-17403

$4.91

12

CLAMP (L:145)

09407-14407

$3.57

13

CLAMP (L:190)

09407-19401

$3.05

14

WIRE, FRONT BRAKE SW LEAD

36857-31G00

$56.05

15

BRACKET, FUSE BOX

36744-31G00

Unavailable

16

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.81

17

SWITCH ASSY,IGN This part replaces 37110-31G00.

37110-31G20

$91.75

18

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

19

.NUT,IGNITION SWITCH

37112-24500

$11.48

20

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

21

SPRING

09443-06080

$4.73

22

RELAY,NEUTRAL START

38730-09F00

$46.55

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

24

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

25

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

26

BRACKET, RELAY

38741-31G30

Unavailable

27

RELAY ASSY, DRIVE

38750-31G00

$119.65

29

RELAY ASSY This part replaces 38740-31G10.

38740-31G11

$27.46

28

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

28

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07
