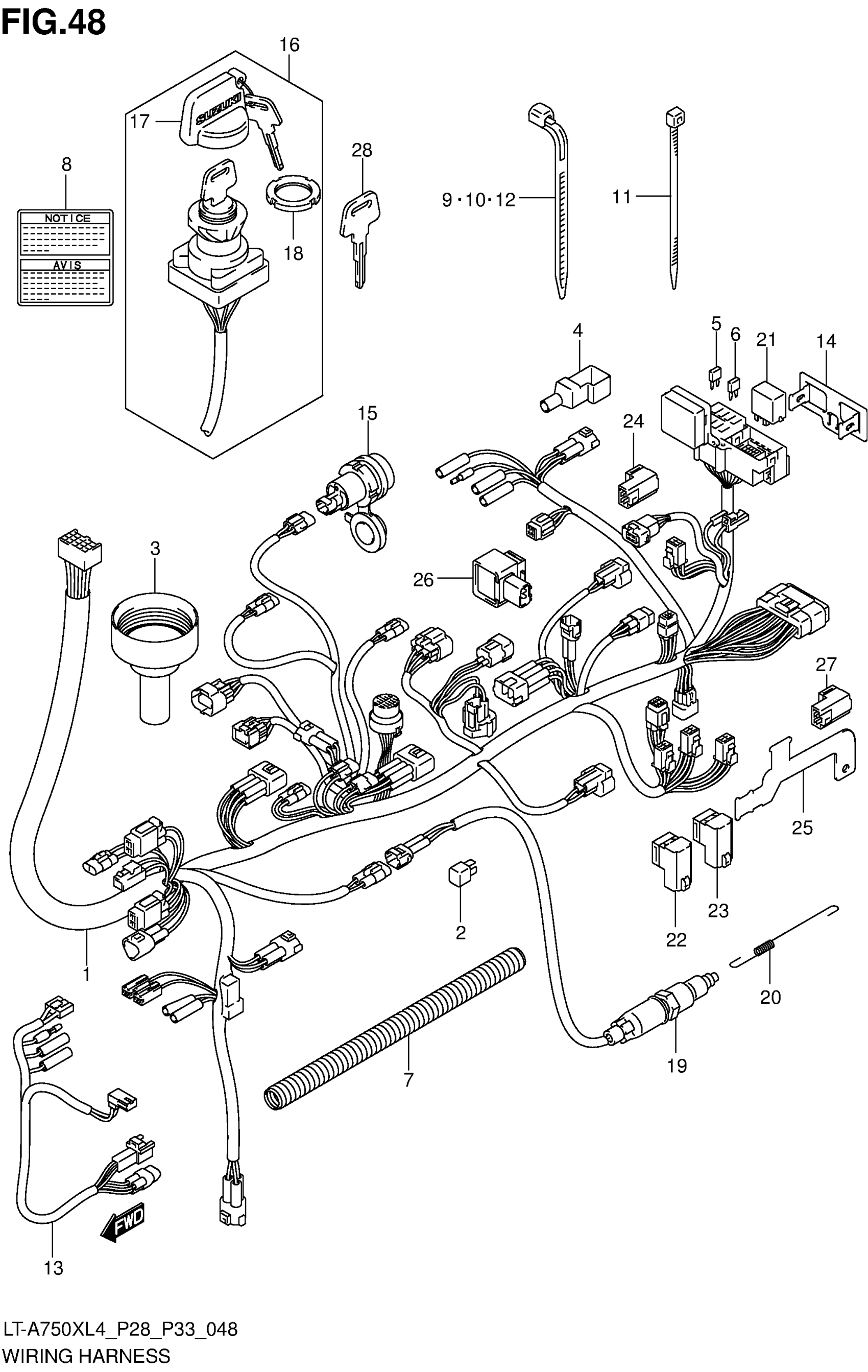

Suzuki LT-A750XL4 (2014) WIRING HARNESS (LT-A750XL4 P28) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-31GD0.

36610-31GD1

$762.83

2

RECTIFIER ASSY

32800-16A00

$22.07

3

COVER, SPEED

36618-31G00

Unavailable

4

COVER, CONNECTOR

36618-31G10

$10.50

5

FUSE (10A)

09481-10501

$2.14

6

FUSE (15A)

09481-15501

$2.14

7

GUIDE, WIRING HARNESS

36619-31G00

$20.42

8

LABEL, POWER SOURCE TERMINAL

38852-03G20

Unavailable

9

CLAMP (L:95)

09407-11401

$2.87

10

CLAMP (L:125)

09407-14403

$2.31

11

CLAMP (L:145)

09407-14407

$2.84

12

CLAMP (L:190)

09407-19401

$3.32

13

WIRE, FRONT BRAKE SW LEAD

36857-31G00

$63.26

14

BRACKET, FUSE BOX

36744-31G00

Unavailable

15

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.03

16

SWITCH ASSY,IGN This part replaces 37110-31G00.

37110-31G20

$87.34

17

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.77

18

.NUT,IGNITION SWITCH

37112-24500

$12.60

19

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

20

SPRING

09443-06080

$6.00

21

RELAY,NEUTRAL START

38730-09F00

$44.54

22

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

24

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

25

BRACKET, RELAY

38741-31G30

Unavailable

26

RELAY ASSY, DRIVE

38750-31G00

$116.07

27

RELAY ASSY This part replaces 38740-31G10.

38740-31G11

$27.01

28

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.71

28

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.71
