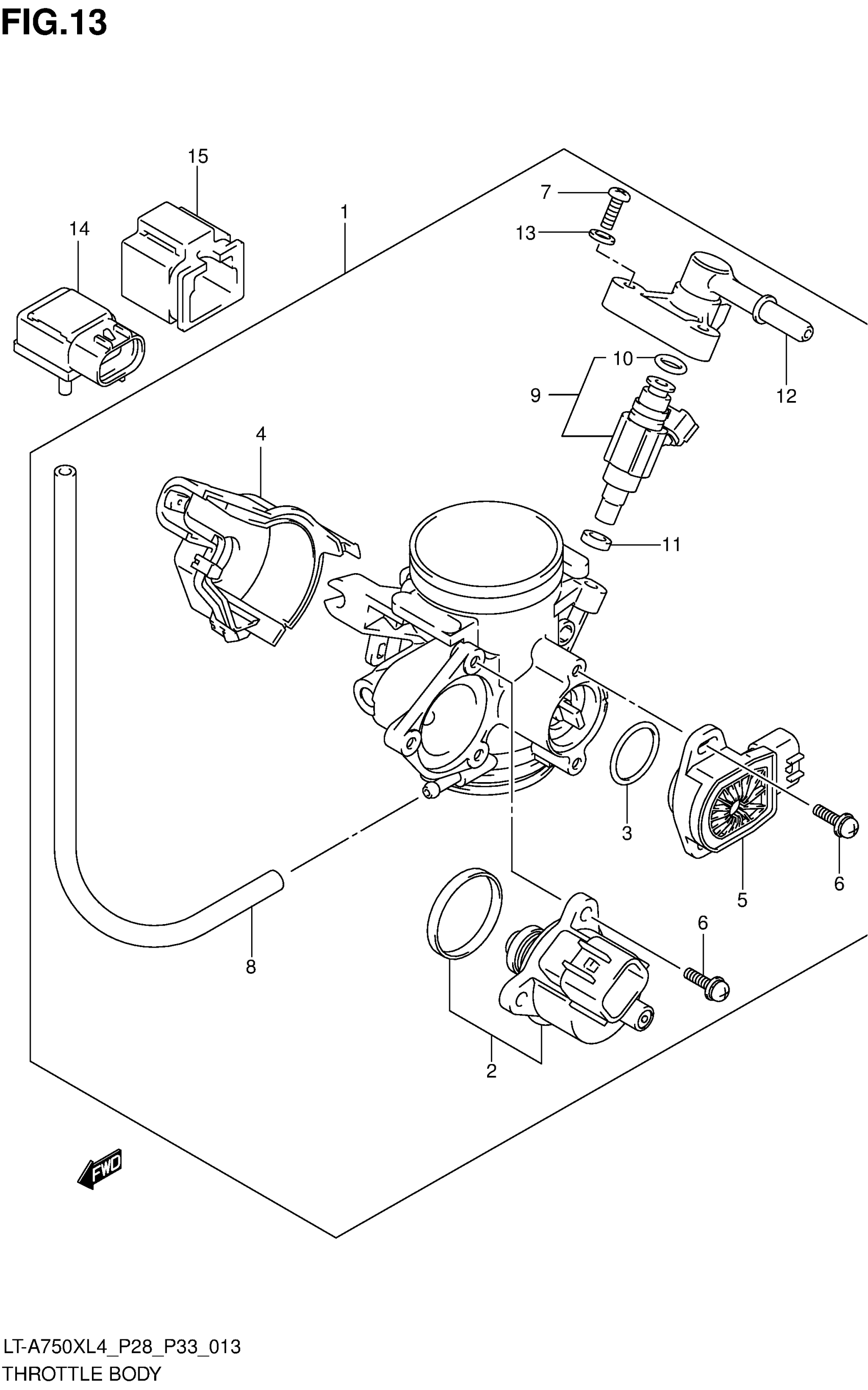

Suzuki LT-A750XL4 (2014) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-31G10

$811.77

2

MOTOR, ISC STEPPING

13520-31G00

$205.44

3

.O-RING

13575-31G00

$11.50

4

COVER

13578-31G00

$16.13

5

SENSOR ASSY

13580-31G00

$205.80

6

SCREW

13601-13G00

$2.95

7

SCREW

13601-11J00

$4.79

8

HOSE This part replaces 13683-10F70.

13683-10F71

$11.10

9

INJECTOR ASSY

15710-31G10

$252.98

10

O RING

15717-31G00

$10.33

11

SEAL

15722-29G00

$10.93

12

DELIVERY PIPE

15731-31G10

$205.73

13

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

14

SENSOR, AIR PRESSURE

15620-10G00

$225.50

15

HOLDER, AIR PRESSURE

15625-10G00

$12.40
