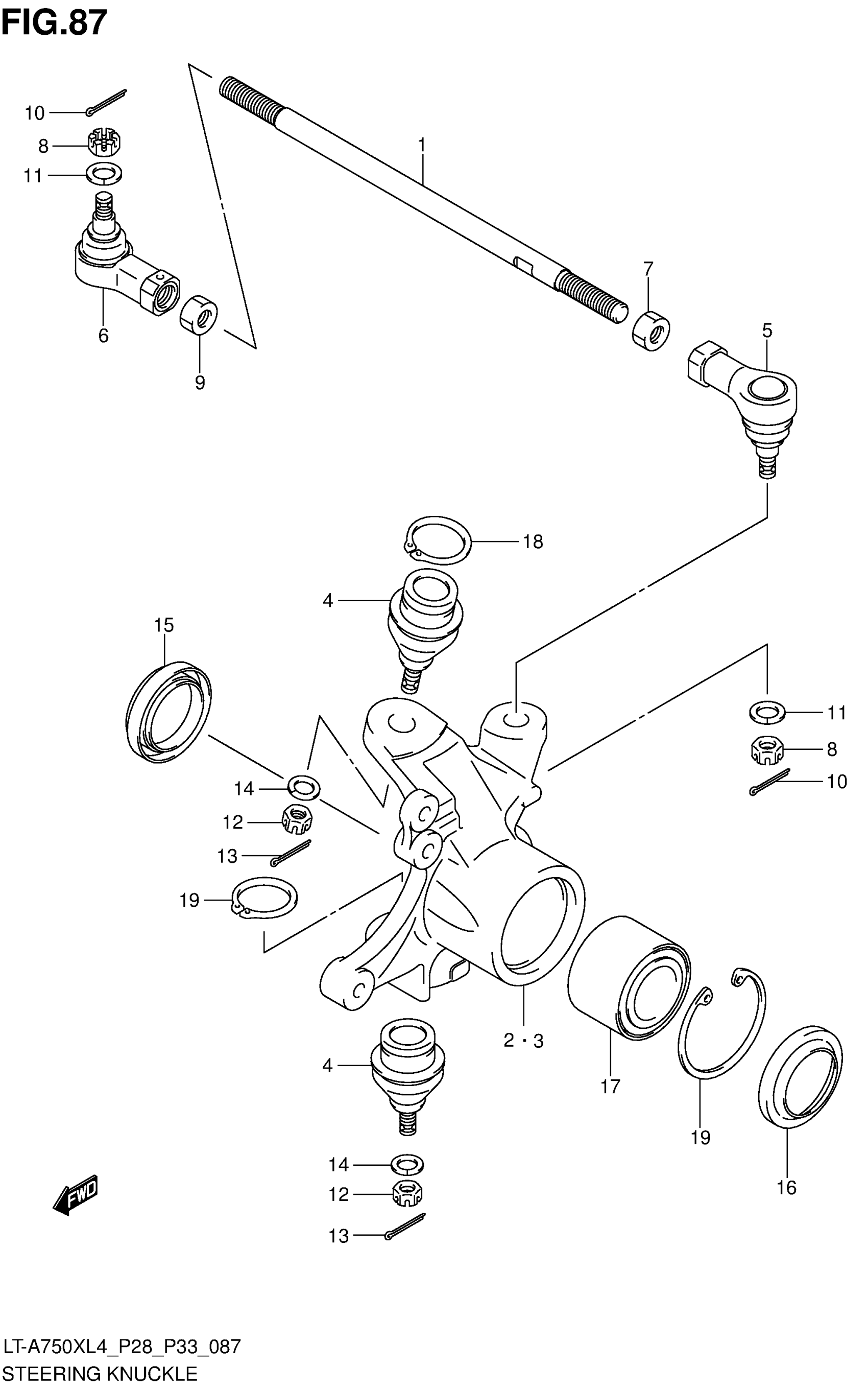

Find the part on the Steering Knuckle diagram for your 2014 Suzuki LT-A750XL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-A750XL4 Steering Knuckle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-31G01

2

$47.39

In stock

2

KNUCKLE, STEERING RH

51231-31G00

1

$405.58

In stock

3

KNUCKLE, STEERING LH

51241-31G00

1

$386.95

In stock

4

END, KNUCKLE STEERING

51210-31G10

4

$65.55

In stock

5

ROD, END, RH

51260-31G10

2

$55.71

In stock

6

ROD, END, LH

51270-31G10

2

$54.16

In stock

7

NUT

09140-12030

2

$2.92

In stock

8

NUT

08314-4010B

4
Out of stock

9

NUT

09140-12035

2

$2.92

In stock

10

PIN

04111-2020A

4
Out of stock

11

WASHER (10.5X19X2)

09160-10082

4
Out of stock

12

NUT

08314-4010B

4
Out of stock

13

PIN

04111-2020A

4
Out of stock

14

WASHER (10.5X19X2)

09160-10082

4
Out of stock

15

OIL SEAL (38X55X8)

09283-38012

2
Out of stock

16

OIL SEAL (38X55X6)

09285-38002

2

$13.51

In stock

17

2

$101.37

In stock

18

CIRCLIP

08331-31309

4
Out of stock

19

CLIP

08331-41559

2

$3.63

In stock
