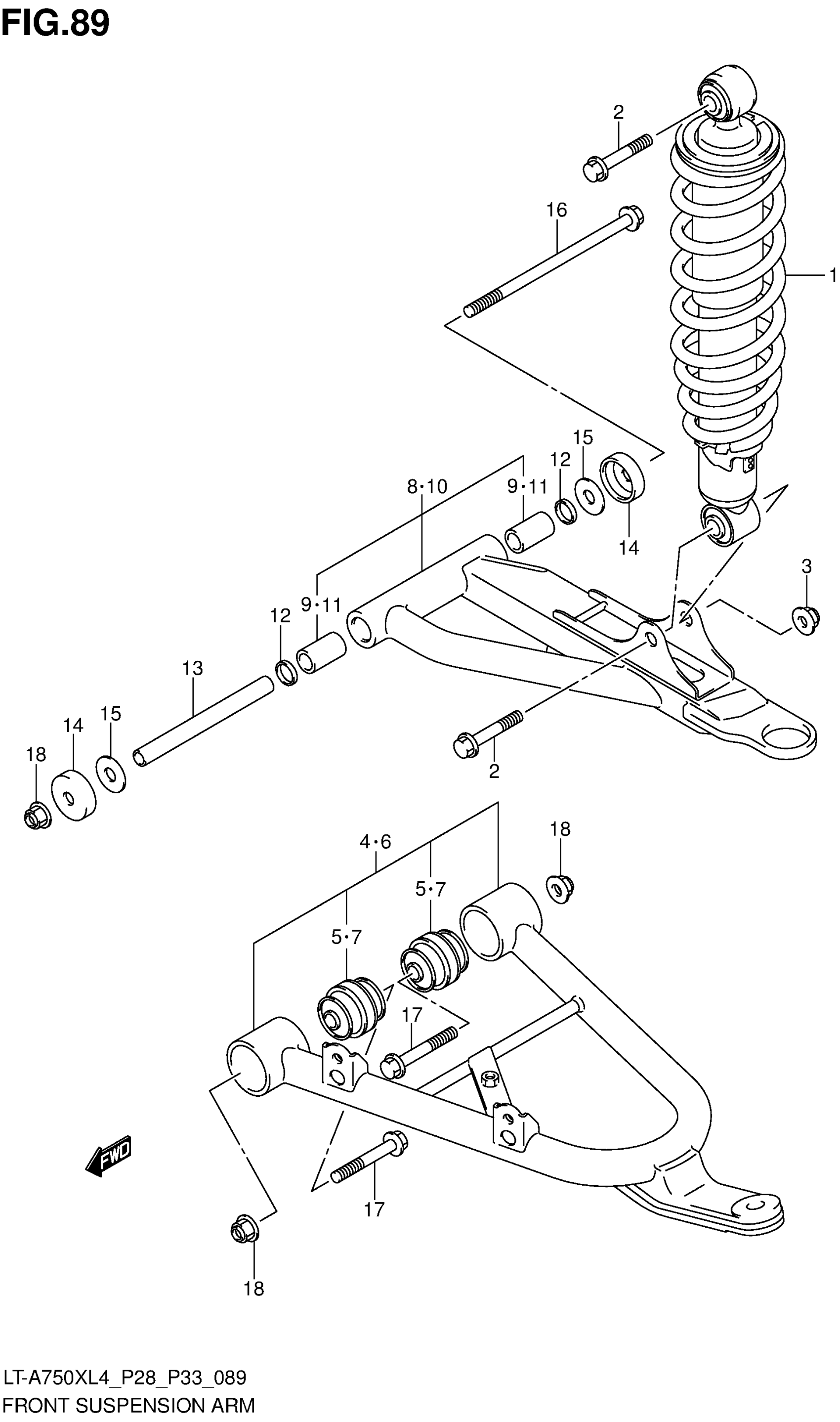

Suzuki LT-A750XL4 (2014) FRONT SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-31G20-019

$184.82

2

BOLT (10X48)

09103-10126

$4.07

3

NUT

09159-10115

$3.21

4

ARM SET, SUSPENSION LOWER RH

52410-31820

$346.68

5

BUSH

09319-10055

$19.25

6

ARM SET, SUSPENSION LOWER LH

52420-31820

$343.47

7

BUSH

09319-10055

$19.25

8

ARM SET, SUSPENSION UPPER RH

52430-31820

$335.48

9

BUSH

51236-31G00

$15.85

10

ARM SET, SUSPENSION UPPER LH

52440-31820

$323.18

11

BUSH

51236-31G00

$15.85

12

SEAL

52454-45G00

$7.00

13

SPACER, FR SUSPENSION ARM

52455-31G10

$25.62

14

SEAL, FR SUSPENSION ARM PIVOT

51255-18900

$4.09

15

WASHER

08211-10281

$2.06

16

BOLT (10X160)

09103-10389

$9.21

17

BOLT (10X57)

09103-10255

$8.47

18

NUT

09159-10115

$3.21
