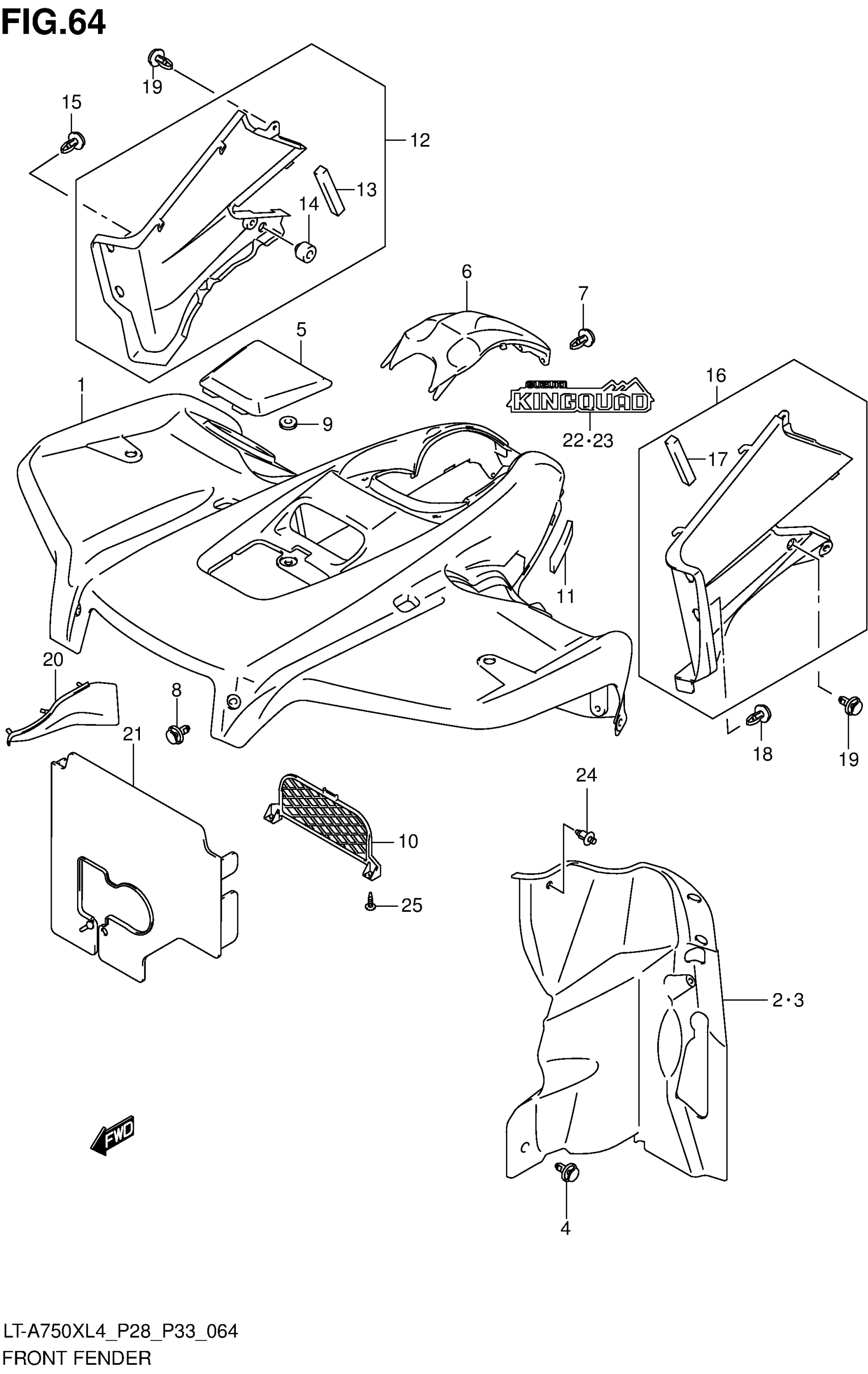

Suzuki LT-A750XL4 (2014) FRONT FENDER (LT-A750XL4 P28) Diagram

#

Description
Price

1

FENDER, FRONT (GREEN)

53111-31G03-YLG

$336.15

1

FENDER, FRONT (BLACK)

53111-31G03-YLZ

$328.18

1

FENDER,FRT(BLUE This part replaces 53111-31G03-YPW.

53111-31G13-YPW

$472.82

1

FENDER, FRONT (RED) This part replaces 53111-31G03-YT9.

53111-31G13-YT9

$434.97

1

FENDER, FRONT (YELLOW)

53111-31G03-YU1

Unavailable

2

MUDFLAP, FENDER INNER RH

53411-31G02

$29.30

3

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$22.01

4

CLIP

09409-08335

$2.44

5

LID, FENDER FRONT (GREEN) This part replaces 53341-31G01-YLG.

53341-31G06-YLG

$9.69

5

LID,FENDER FRON This part replaces 53341-31G01-YLZ.

53341-31G05-YLZ

$58.22

5

LID,FENDER FRONT (BLUE) This part replaces 53341-31G01-YPW.

53341-31G06-YPW

$54.52

5

LID, FENDER FRONT (RED) This part replaces 53341-31G01-YT9.

53341-31G06-YT9

$9.99

5

LID,FRONT FENDE This part replaces 53341-31G01-YU1.

53341-31G04-YU1

$34.25

6

FENDER,CENTER This part replaces 53119-31G02-YLG.

53119-31G05-YLG

$25.82

6

FENDER,CENTER This part replaces 53119-31G02-YLZ.

53119-31G05-YLZ

$27.15

6

FENDER, CENTER (BLUE)

53119-31G02-YPW

$47.60

6

FENDER,CENTER This part replaces 53119-31G02-YT9.

53119-31G05-YT9

$21.77

6

FENDER,CENTER This part replaces 53119-31G02-YU1.

53119-31G03-YU1

$30.03

7

CLIP

09409-08335

$2.44

8

CLIP

09409-08335

$2.44

9

CUSHION

09320-08018

$2.82

10

COVER,INNER This part replaces 53212-31G01.

53212-31G03

$17.20

11

CUSHION, FENDER SIDE

53145-07G01

$7.99

12

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$40.18

13

CUSHION, COVER SIDE, RH

53146-05G00

$8.21

14

CUSHION

09321-10019

$4.55

15

CLIP

09409-08335

$2.44

16

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$90.01

17

CUSHION, COVER SIDE, LH

53146-05G00

$8.21

18

CLIP

09409-08335

$2.44

19

CLIP

09409-08335

$2.44

20

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$17.47

21

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$33.97

22

EMBLEM,FR FENDE This part replaces 68151-31GC0-EFG.

68151-31GC1-EFG

$53.97

23

EMBLEM,LH This part replaces 68152-31GC0-EFG.

68152-31GC1-EFG

$53.97

24

CLIP

09409-07333

$2.37

25

SCREW

03541-0516A

$1.41
