2014 Suzuki LT-A750XL4 Footrest Diagram

← All diagrams

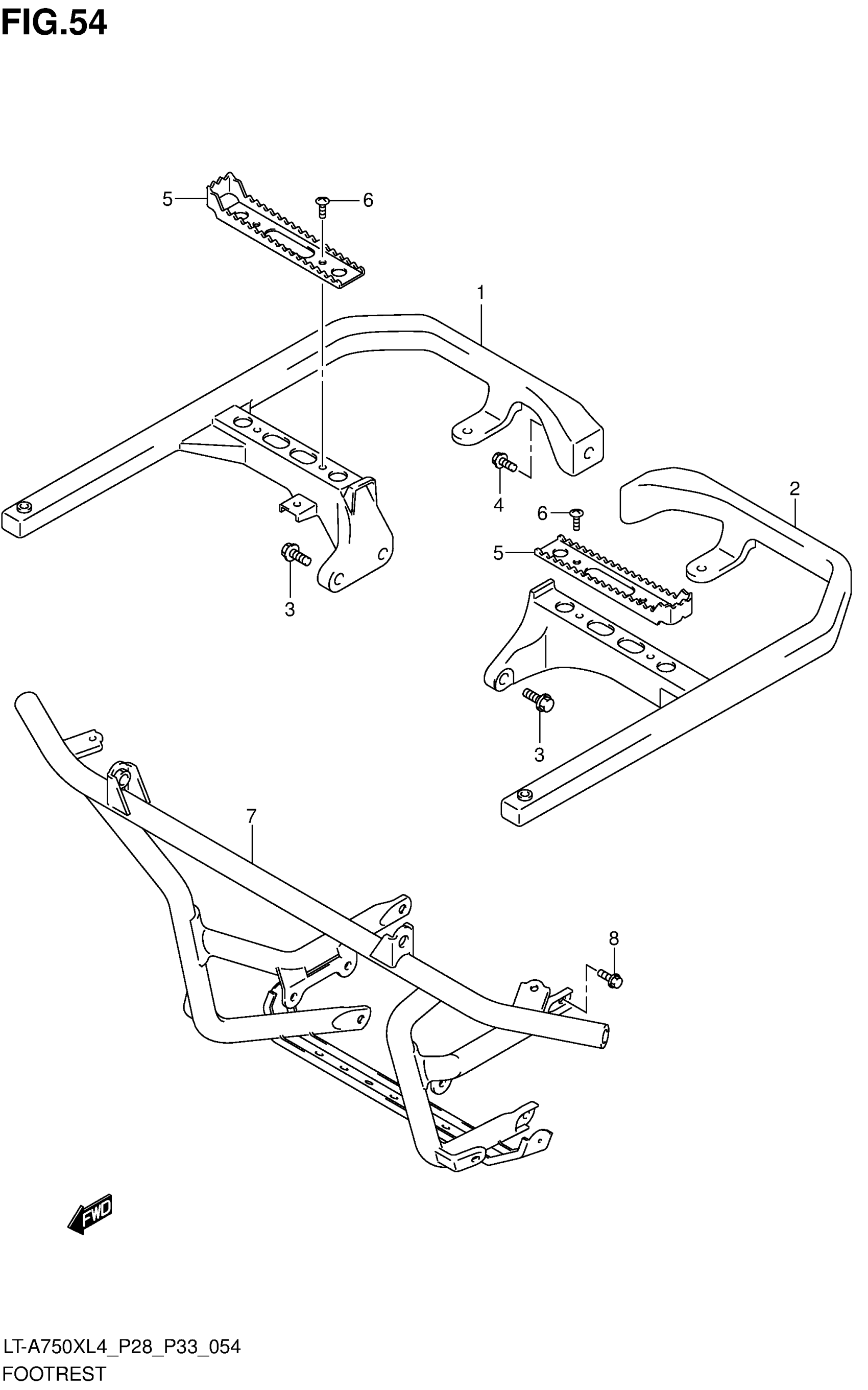

Find the part on the Footrest diagram for your 2014 Suzuki LT-A750XL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-A750XL4 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$158.05

In stock

2

1

$157.50

In stock

3

BOLT (10X25)

09103-10378

4
Out of stock

4

BOLT (8X20)

09103-08286

2

$4.12

In stock

5

PLATE, FOOTREST

43511-31G01

2
Out of stock

6

SCREW

02142-0612B

4
Out of stock

7

GRIP, FRONT

43990-31GB0

1

$217.12

In stock

8

BOLT (8X16) This part replaces 09103-08283.

09103-08570

4
Out of stock
