Description

Price

1

HEAD ASSY,CYLINDER

11100-31G50

$1,196.98

2

BOLT (6X40)

09103-06266

$2.12

3

PIN (8X11)

09206-08001

$1.78

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

$33.35

5

GASKET, CYLINDER HEAD

11141-31G50

$43.16

6

BOLT,CYLINDER HEAD (L:200)

11161-31G00

$13.73

7

BOLT (6X100)

09103-06060

$2.50

8

BOLT (6X70)

09103-06103

$2.53

9

PIN

04211-13189

$2.19

10

BOLT (6X12)

09103-06222

$2.26

11

GASKET (5.8X13X1.2)

09168-06023

$2.35

12

SPARK PLUG (LMAR7A-9) | NGK

09482-00624

$25.95

12

SPARK PLUG (LMAR6A-9) | OPT NGK

09482-00623

$34.92

12

SPARK PLUG (LMAR8A-9) | OPT NGK

09482-00625

Unavailable

13

PIPE ASSY,INTAKE This part replaces 13101-31G00.

13101-31G01

$49.57

14

O RING

13118-31G00

$5.30

15

BOLT (6X18)

09106-06105

$2.85

16

CLAMP

09402-62208

$6.58

17

SENSOR, WATER TEMP

13650-10G00

$87.24

18

GASKET (12X17X1)

09168-12017

$1.95

19

COVER THERMOSTAT

17661-31G00

$47.48

20

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$25.77

21

BOLT

07130-0825A

$3.04

22

PLATE,ENG MTG DAMPER

11653-31G02

$20.25

23

DAMPER, ENG MTG

11654-31G00

$3.25

24

STOPPER, ENG MTG

11655-31G10

$16.77

25

BOLT (8X12)

01550-0812A

$2.32

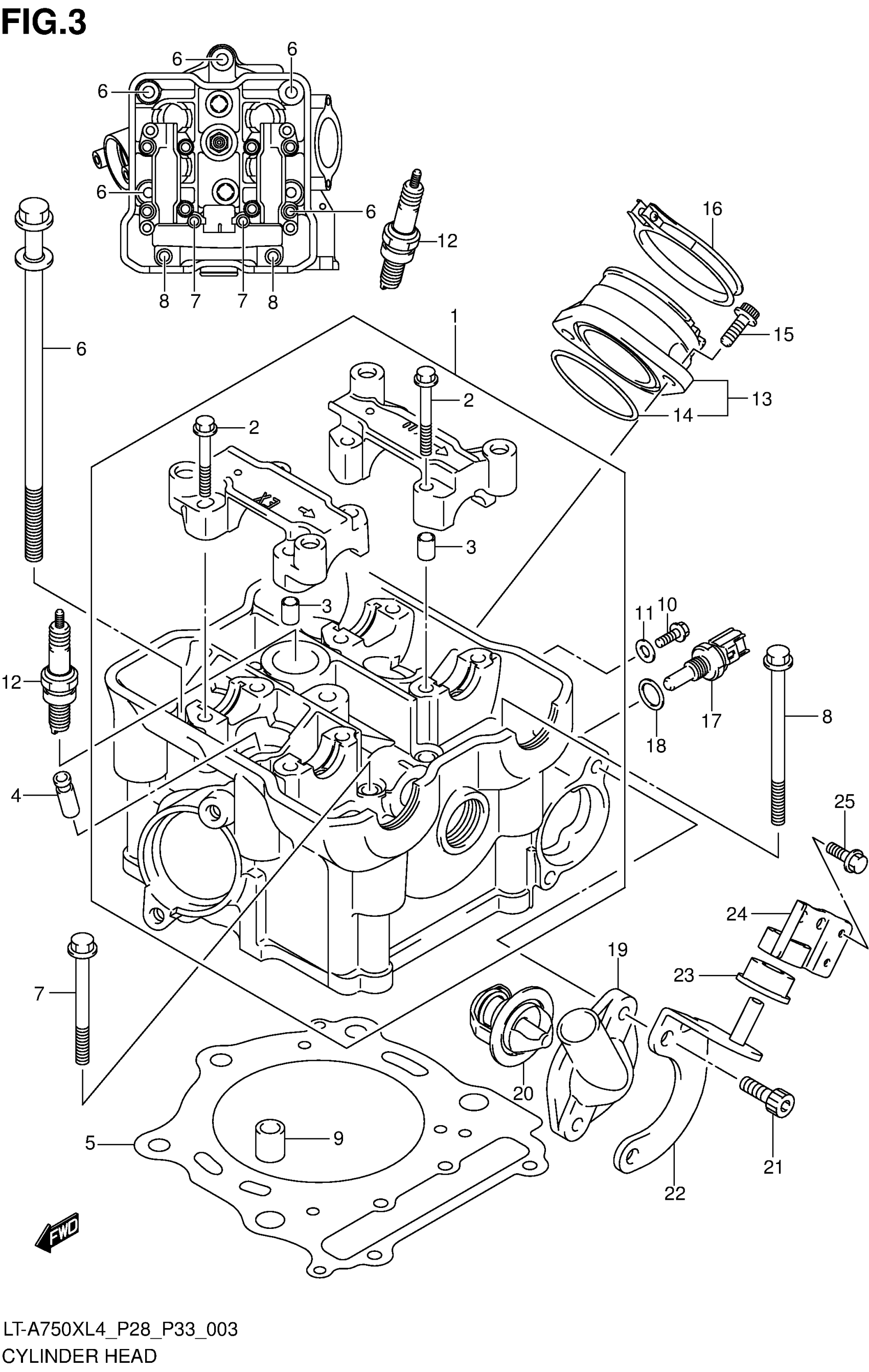

Suzuki LT-A750XL4 (2014) CYLINDER HEAD Diagram
