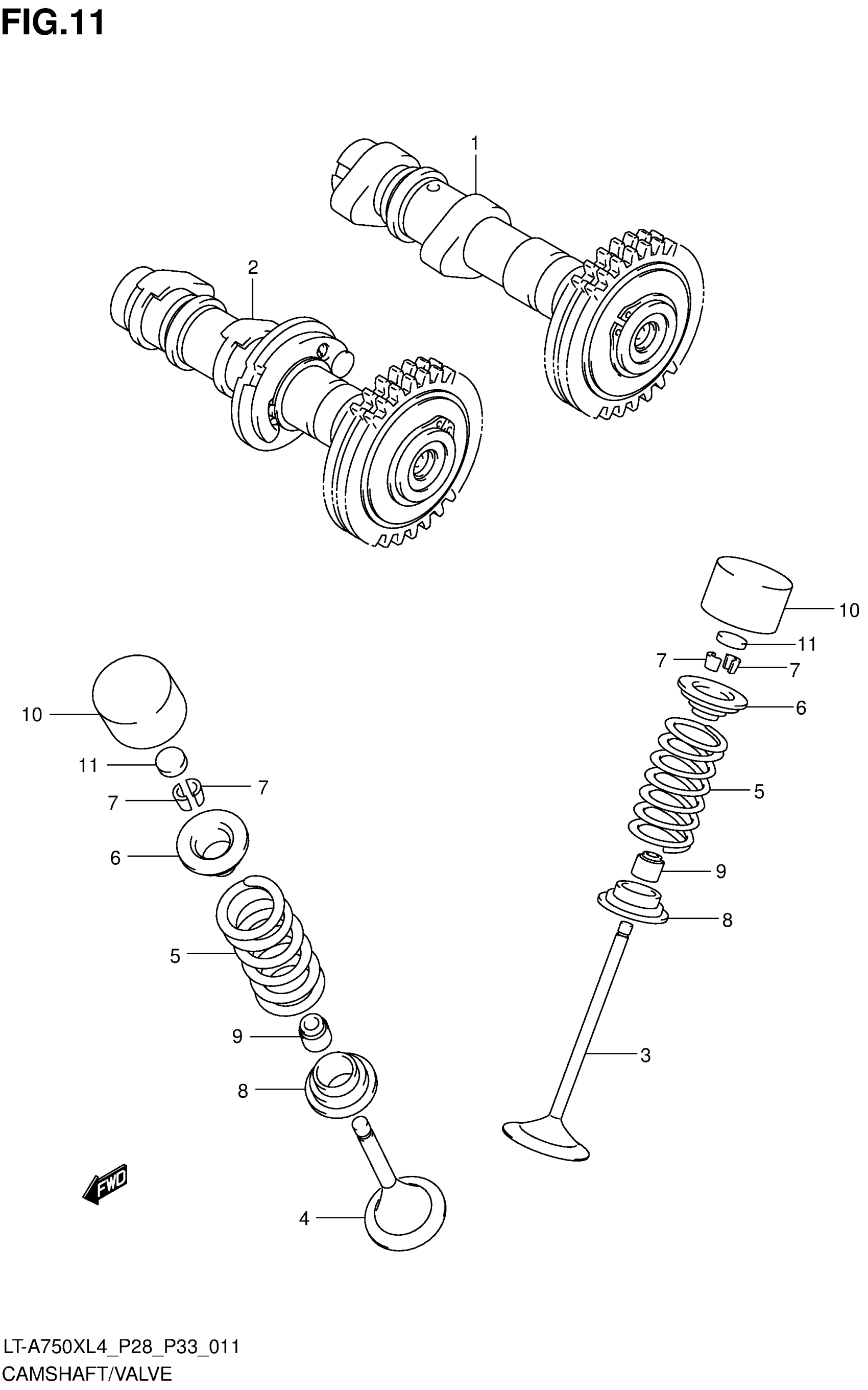

Suzuki LT-A750XL4 (2014) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE (NT:41)

12710-31G10

$444.93

2

CAMSHAFT,EXHAUST (NT:41)

12720-31G10

$574.03

3

VALVE,INTAKE

12911-31G00

$53.68

4

VALVE,EXHAUST

12912-31G00

$84.50

5

SPRING,VALVE

12921-31G00

$17.12

6

RETAINER,VALVE SPRING

12931-02F10

$13.89

7

COTTER, VALVE

12932-24400

$1.98

8

SEAT,VALVE SPRING

12933-38400

$4.98

9

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04

10

TAPPET This part replaces 12891-02F00.

12891-02F10

$48.15

11

SHIM, TAPPET (T:2.300)

12892-41C00-230

$12.85

11

SHIM, TAPPET (T:2.325)

12892-41C00-232

Unavailable

11

SHIM, TAPPET (T:2.350)

12892-41C00-235

$13.35

11

SHIM, TAPPET (T:2.375)

12892-41C00-238

$13.35

11

SHIM, TAPPET (T:2.400)

12892-41C00-240

$13.35

11

SHIM, TAPPET (T:2.425)

12892-41C00-242

Unavailable

11

SHIM, TAPPET (T:2.450)

12892-41C00-245

$13.35

11

SHIM, TAPPET (T:2.475)

12892-41C00-248

Unavailable

11

SHIM, TAPPET (T:2.500)

12892-41C00-250

$13.35

11

SHIM, TAPPET (T:2.525)

12892-41C00-252

Unavailable

11

SHIM, TAPPET (T:2.550)

12892-41C00-255

$13.35

11

SHIM, TAPPET (T:2.575)

12892-41C00-258

Unavailable

11

SHIM, TAPPET (T:2.600)

12892-41C00-260

$12.85

11

SHIM, TAPPET (T:2.625)

12892-41C00-262

Unavailable

11

SHIM, TAPPET (T:2.650)

12892-41C00-265

$12.85

11

SHIM, TAPPET (T:2.675)

12892-41C00-268

Unavailable

11

SHIM, TAPPET (T:2.700)

12892-41C00-270

$12.85

11

SHIM, TAPPET (T:2.725)

12892-41C00-272

Unavailable

11

SHIM, TAPPET (T:2.750)

12892-41C00-275

$9.12

11

SHIM, TAPPET (T:2.775)

12892-41C00-278

Unavailable

11

SHIM, TAPPET (T:2.800)

12892-41C00-280

$12.85

11

SHIM, TAPPET (T:2.825)

12892-41C00-282

Unavailable

11

SHIM, TAPPET (T:2.850)

12892-41C00-285

$13.35

11

SHIM, TAPPET (T:2.875)

12892-41C00-288

Unavailable

11

SHIM, TAPPET (T:2.900)

12892-41C00-290

$12.85

11

SHIM, TAPPET (T:2.925)

12892-41C00-292

Unavailable

11

SHIM, TAPPET (T:2.950)

12892-41C00-295

$13.35

11

SHIM, TAPPET (T:2.975)

12892-41C00-298

Unavailable

11

SHIM, TAPPET (T:3.000)

12892-41C00-300

$13.10

11

SHIM, TAPPET (T:3.025)

12892-41C00-302

Unavailable

11

SHIM, TAPPET (T:3.050)

12892-41C00-305

$13.35

11

SHIM, TAPPET (T:3.075)

12892-41C00-308

Unavailable

11

SHIM, TAPPET (T:3.100)

12892-41C00-310

$12.85

11

SHIM, TAPPET (T:3.125)

12892-41C00-312

Unavailable

11

SHIM, TAPPET (T:3.150)

12892-41C00-315

Unavailable

11

SHIM, TAPPET (T:3.175)

12892-41C00-318

Unavailable

11

SHIM, TAPPET (T:3.200)

12892-41C00-320

$13.10

11

SHIM, TAPPET (T:3.225)

12892-41C00-322

Unavailable

11

SHIM, TAPPET (T:3.250)

12892-41C00-325

$13.35

11

SHIM, TAPPET (T:3.275)

12892-41C00-328

Unavailable

11

SHIM, TAPPET (T:3.300)

12892-41C00-330

$13.35

11

SHIM, TAPPET (T:3.325)

12892-41C00-332

Unavailable

11

SHIM, TAPPET (T:3.350)

12892-41C00-335

$13.35

11

SHIM, TAPPET (T:3.375)

12892-41C00-338

Unavailable

11

SHIM, TAPPET (T:3.400)

12892-41C00-340

$13.35

11

SHIM, TAPPET (T:3.425)

12892-41C00-342

Unavailable

11

SHIM, TAPPET (T:3.450)

12892-41C00-345

Unavailable

11

SHIM, TAPPET (T:3.475)

12892-41C00-348

Unavailable

11

SHIM, TAPPET (T:3.500)

12892-41C00-350

$13.35

12

SHIM SET, TAPPET T:2.50, 2.55...3.45, 3.50 (5PCS.EACH) & CASE | OPT NOT ILLUSTRATED

12800-41810

$1,242.87

13

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69471

Unavailable
