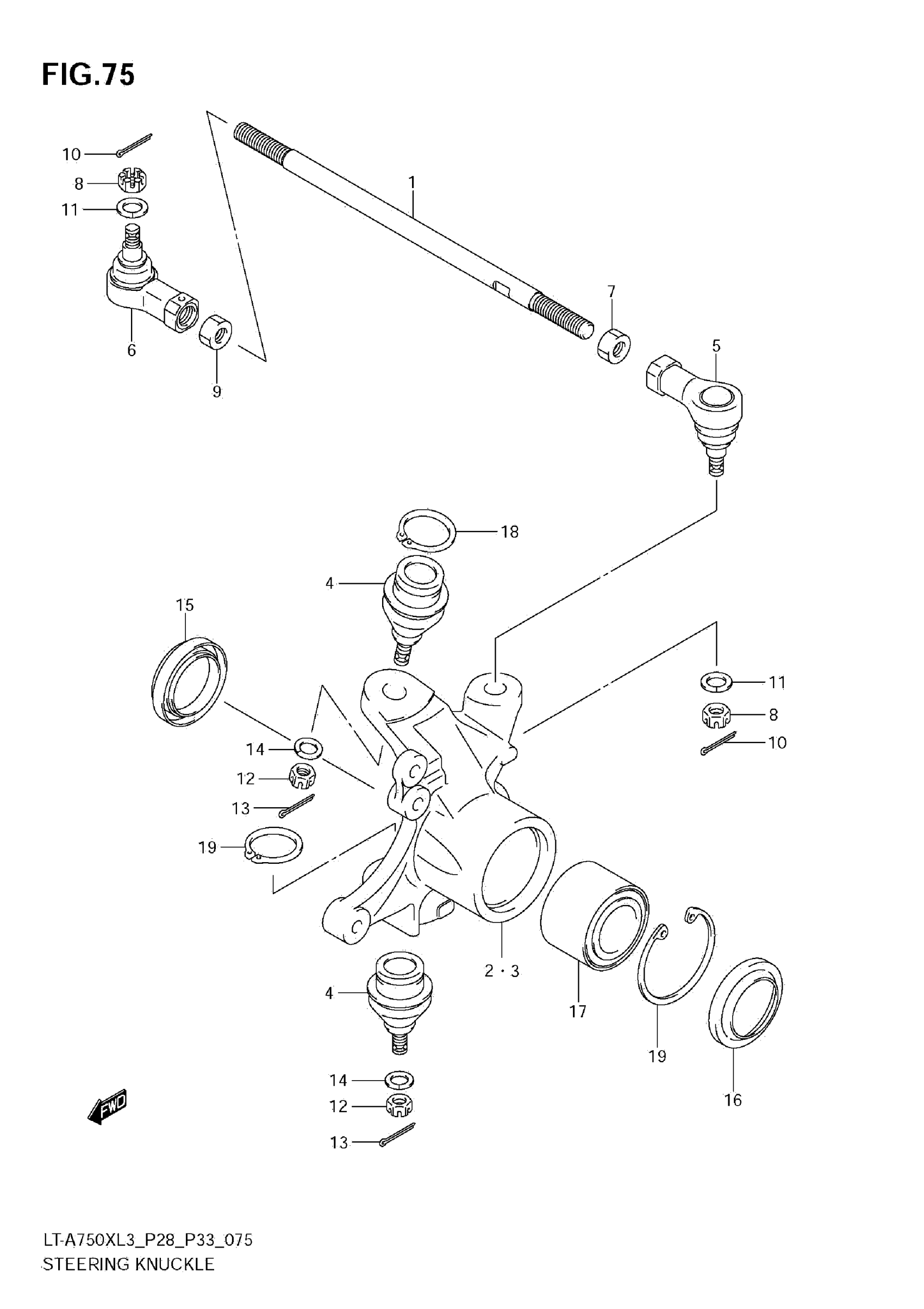

Suzuki LT-A750XL3 (2013) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-31G01

$46.22

2

KNUCKLE, STEERING RH

51231-31G00

$364.47

3

KNUCKLE, STEERING LH

51241-31G00

$351.10

4

END, KNUCKLE STEERING

51210-31G10

$65.76

5

ROD, END, RH

51260-31G10

$54.33

6

ROD, END, LH

51270-31G10

$54.33

7

NUT

09140-12030

$2.92

8

NUT

08314-4010B

$2.50

9

NUT

09140-12035

$2.92

10

PIN

04111-2020A

$1.49

11

WASHER (10.5X19X2)

09160-10082

$1.61

12

NUT

08314-4010B

$2.50

13

PIN

04111-2020A

$1.49

14

WASHER (10.5X19X2)

09160-10082

$1.61

15

OIL SEAL (38X55X8)

09283-38012

$14.74

16

OIL SEAL (38X55X6)

09285-38002

$13.30

17

BEARING This part replaces 51259-31G00.

51259-31G10

$99.34

18

CIRCLIP

08331-31309

$2.57

19

CLIP

08331-41559

$3.70
