Description

Price

1

FENDER, REAR (GREEN) This part replaces 63111-31G02-YLG.

63111-31G03-YLG

$531.38

1

FENDER, REAR (BLACK) This part replaces 63111-31G02-YLZ.

63111-31G03-YLZ

$529.80

1

FENDER,REAR(BLU This part replaces 63111-31G02-YPW.

63111-31G03-YPW

$360.32

1

FENDER, REAR (RED) This part replaces 63111-31G02-YT9.

63111-31G03-YT9

$544.78

1

FENDER, REAR This part replaces 63111-31G02-YU1.

63111-31G03-YU1

$407.55

2

BOLT

01547-0625A

$2.01

3

WASHER

09169-06074

$7.95

4

CUSHION (11.5X32X12.2)

09320-11021

$4.17

5

COVER,REAR This part replaces 63251-31G00.

63251-31G01

$18.55

6

CLIP

09409-07333

$2.31

7

SCREW

02142-0520B

$1.78

8

NUT

09159-05019

$7.14

9

SHIELD, REAR FENDER This part replaces 63122-31G10.

63122-31G20

$26.92

10

SHIELD, REAR FENDER This part replaces 63123-31G10.

63123-31G20

$23.47

11

SHIELD, REAR FENDER This part replaces 63124-31G10.

63124-31G20

$17.32

12

SHIELD, REAR FENDER This part replaces 63128-31G10.

63128-31G20

$14.67

13

SHIELD, REAR FENDER This part replaces 63126-31G10.

63126-31G20

$12.98

14

SHIELD, REAR FENDER This part replaces 63127-31G10.

63127-31G20

$12.98

15

PLUG,RR BOX This part replaces 93115-03G00.

93115-03G01

$2.92

16

EMBLEM,RR FENDE This part replaces 68171-31GE0-JLJ.

68171-31GE1-JLJ

$16.93

17

EMBLEM,"SUZUKI" This part replaces 68171-31GA0-1ZZ.

68171-31GA1-1ZZ

$4.42

18

CUSHION, TOOL This part replaces 47437-31G00.

47437-31GA0

$10.38

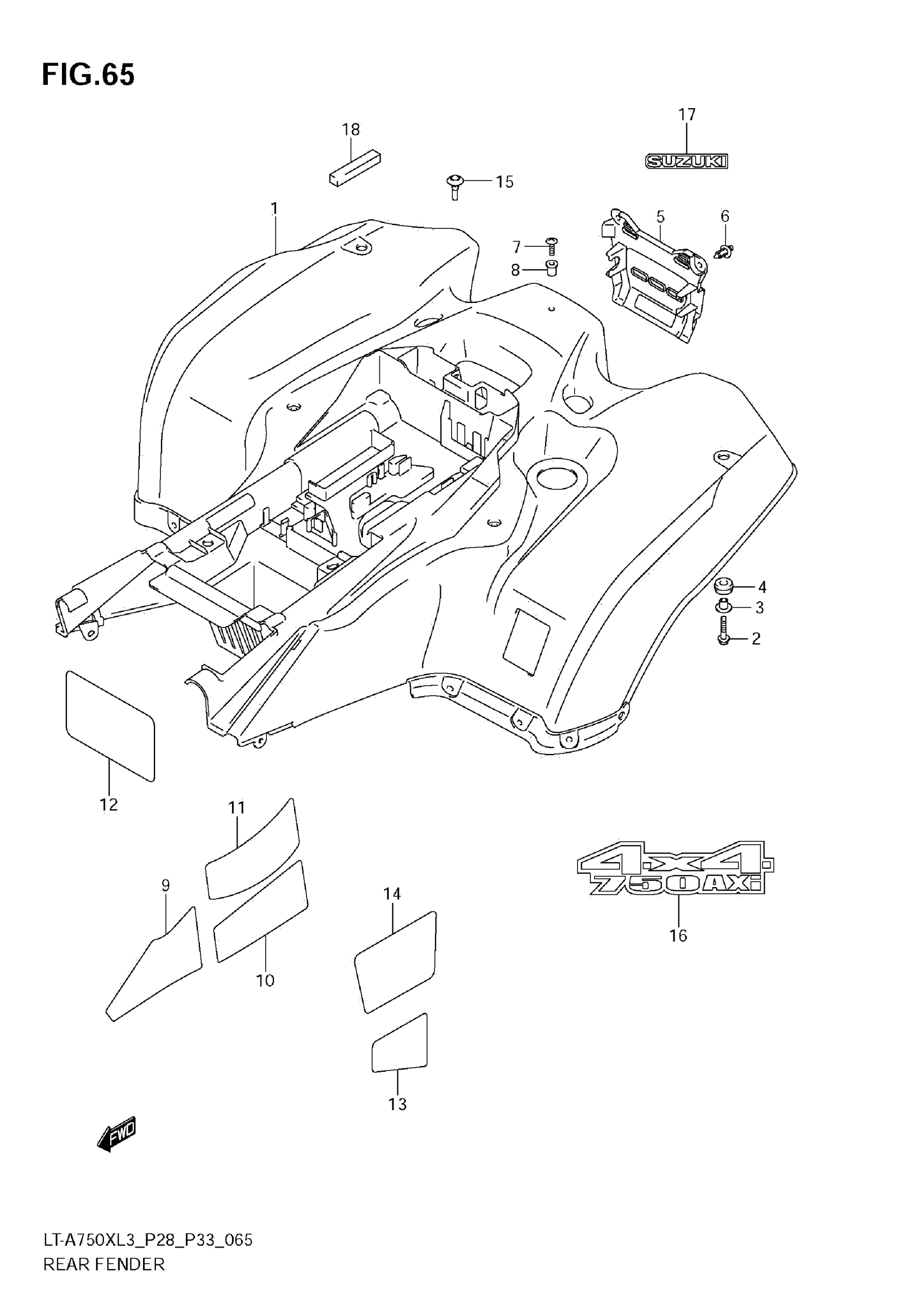

Suzuki LT-A750XL3 (2013) REAR FENDER (LT-A750XL3 E28) Diagram
