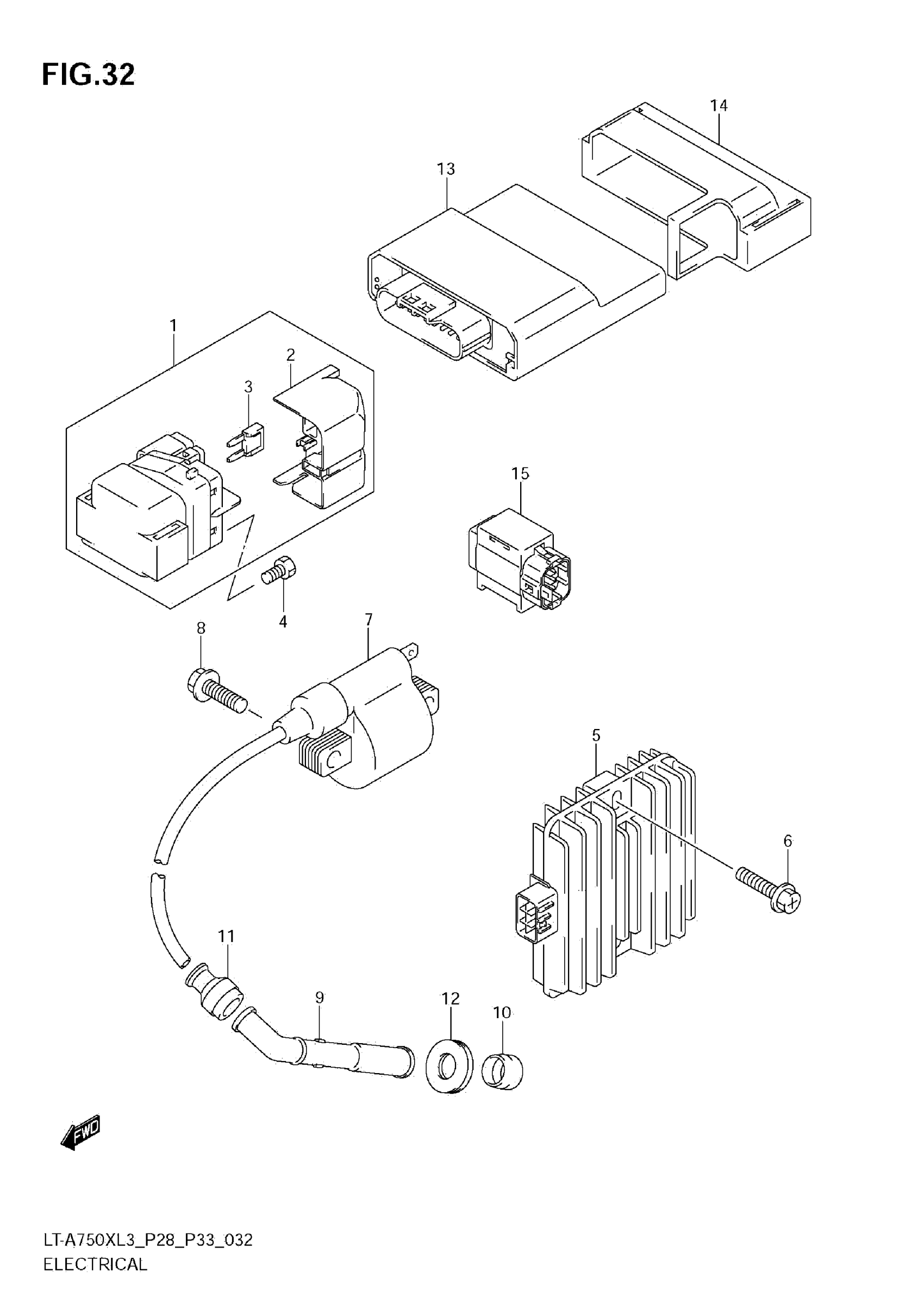

Suzuki LT-A750XL3 (2013) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

2

COVER

31861-38G00

$4.88

3

FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-42F00

$237.18

6

BOLT

02162-0625B

$2.10

7

COIL ASSY, IGNITION

33410-19B10

$98.83

8

BOLT

01550-0620B

$2.39

9

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

10

SEAL, SPARK PLUG CAP

33541-23E10

$6.54

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

12

COVER,SPARK PLUG CAP

33543-33E01

$4.54

13

CONTROL UNIT,FI This part replaces 32920-31G20.

32920-31G21

$772.02

14

HOLDER, FI CONTROL UNIT

32980-31G00

$15.25

15

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
