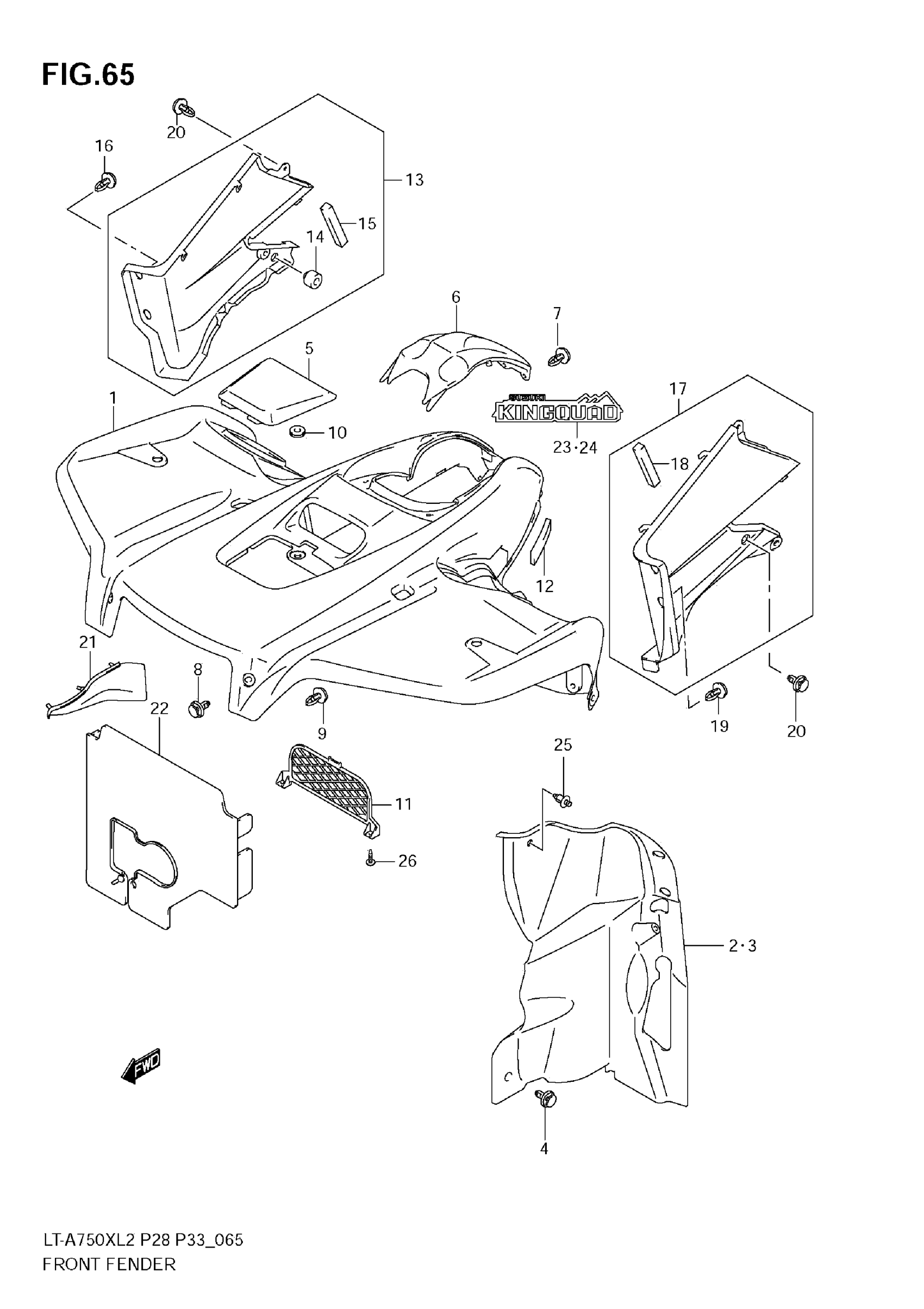

Suzuki LT-A750XL2 (2012) FRONT FENDER (LT-A750XZ L2 E28) Diagram

#

Description
Price

1

FENDER, FRONT (CAMOUFLAGE)

53111-31GC3-YVA

Unavailable

2

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$21.07

3

MUDFLAP, FENDER INNER RH

53411-31G02

$28.04

4

CLIP

09409-08335

$2.44

5

LID,FR FENDER This part replaces 53341-31GC1-YVA.

53341-31GC3-YVA

Unavailable

6

FENDER, CENTER (CAMOUFLAGE)

53119-31GC2-YVA

Unavailable

7

CLIP

09409-08335

$2.44

8

CLIP

09409-08335

$2.44

9

CLIP

09409-08335

$2.44

10

CUSHION

09320-08018

$2.80

11

COVER,INNER This part replaces 53212-31G01.

53212-31G03

$17.20

12

CUSHION, FENDER SIDE

53145-07G01

$7.65

13

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$38.63

14

CUSHION

09321-10019

$4.42

15

CUSHION, COVER SIDE, RH

53146-05G00

$8.21

16

CLIP

09409-08335

$2.44

17

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$86.55

18

CUSHION, COVER SIDE, LH

53146-05G00

$8.21

19

CLIP

09409-08335

$2.44

20

CLIP

09409-08335

$2.44

21

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$17.47

22

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$33.97

23

EMBLEM,FR FENDE This part replaces 68151-31GC0-EFG.

68151-31GC1-EFG

$53.97

24

EMBLEM,LH This part replaces 68152-31GC0-EFG.

68152-31GC1-EFG

$53.97

25

CLIP

09409-07333

$2.29

26

SCREW

03241-0516A

$1.23
