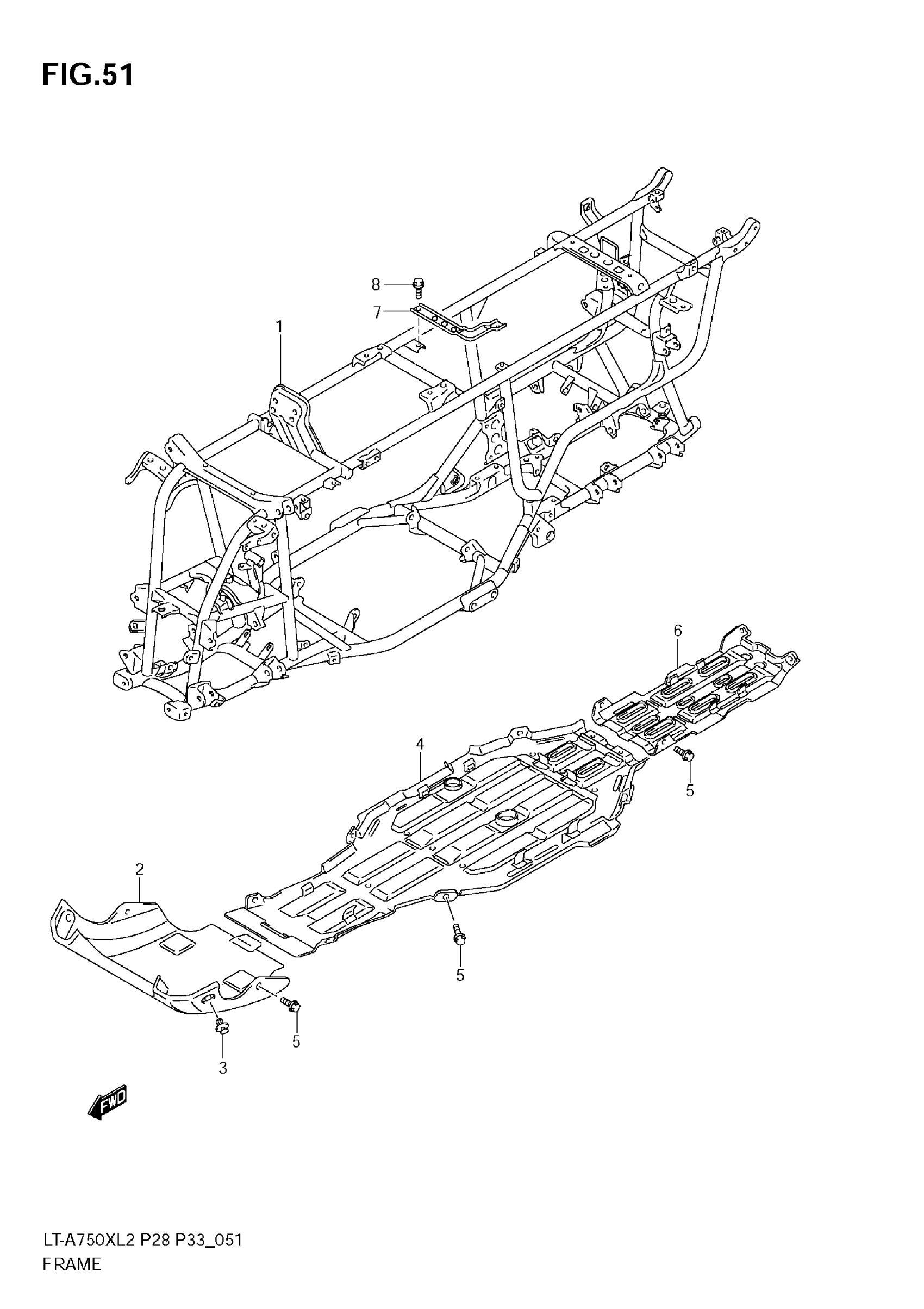

Suzuki LT-A750XL2 (2012) FRAME Diagram

#

Description

Price

1

FRAME (BLACK)

41100-31GD0-019

$1,721.15

2

PROTECTOR, FRONT (BLACK)

42521-31G00-291

$62.85

3

CLIP

09409-08335

$2.47

4

PROTECTOR, ENGINE This part replaces 42511-31G02.

42511-31G04

$45.99

5

BOLT (6X12)

09111-06085

$4.54

6

PROTECTOR, REAR This part replaces 42531-31G01.

42531-31G01-291

$31.88

7

PLATE, BATTERY This part replaces 41561-31G00.

41561-31G01

$8.30

8

BOLT

01550-0616A

$1.97
