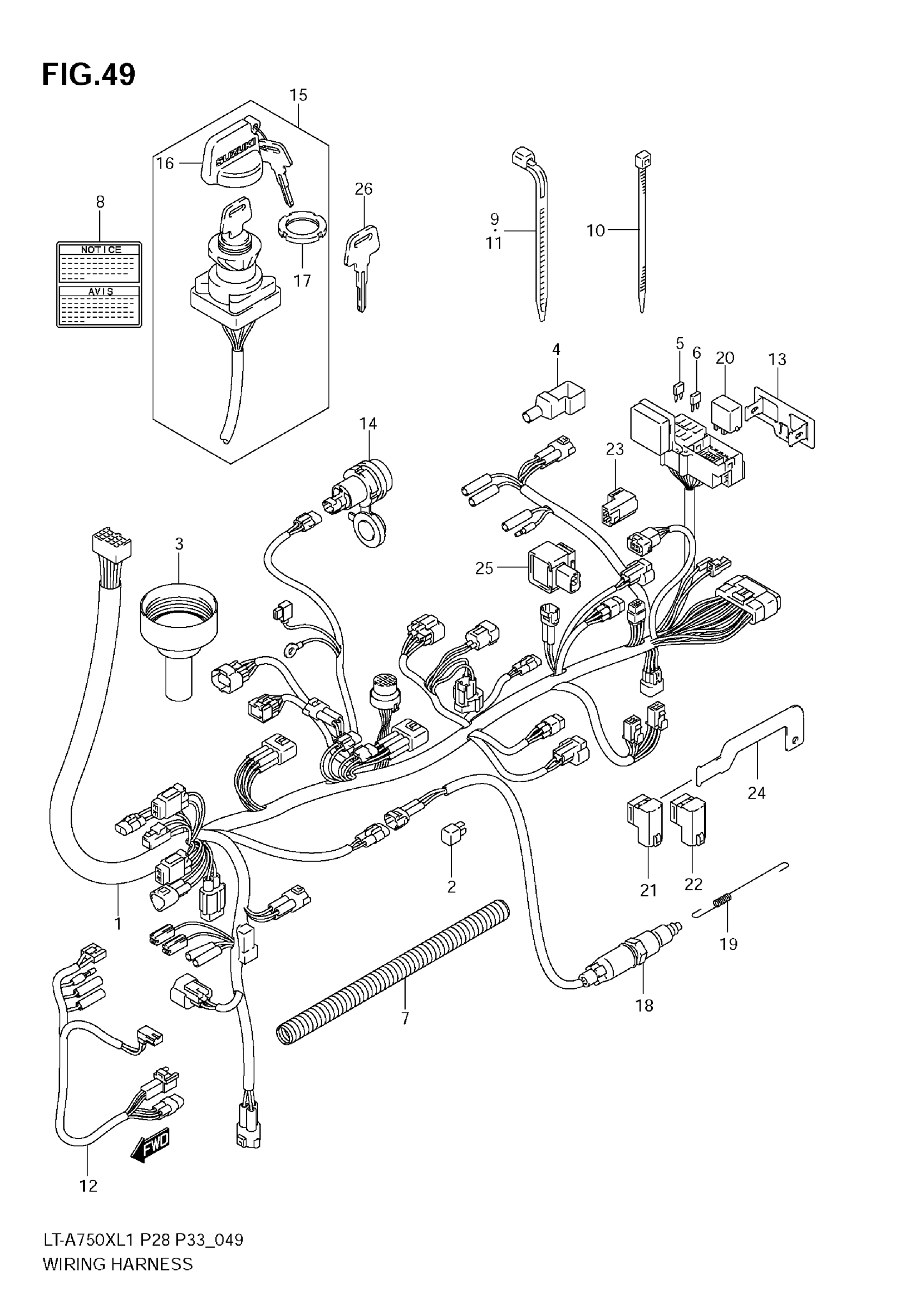

Suzuki LT-A750XL1 (2011) WIRING HARNESS (LT-A750XZL1 E28) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-31G81.

36610-31G83

$652.28

2

RECTIFIER

32800-16A00

$23.07

3

COVER, SPEEDO

36618-31G00

Unavailable

4

COVER, CONNECTOR

36618-31G10

$9.30

5

FUSE (10A)

09481-10501

$2.06

6

FUSE (15A)

09481-15501

$2.02

7

GUIDE, WIRING HARNESS

36619-31G00

$18.08

8

LABEL, CAUTION MAX AMP

38852-03G20

Unavailable

9

CLAMP (L:95)

09407-11401

$2.63

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:235)

09407-25401

$4.66

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:190)

09407-19401

$3.05

12

WIRE, FRONT BRAKE SW LEAD

36857-31G00

$56.05

13

BRACKET, FUSE

36744-31G00

Unavailable

14

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.81

15

SWITCH ASSY,IGN This part replaces 37110-31G00.

37110-31G20

$91.75

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

17

.NUT,IGNITION SWITCH

37112-24500

$11.48

18

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

19

SPRING

09443-06080

$4.73

20

RELAY,NEUTRAL START

38730-09F00

$46.55

21

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

22

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$38.13

24

BRACKET, RELAY

38741-31G20

Unavailable

25

RELAY ASSY, DRIVE

38750-31G00

$119.65

26

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

26

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07
