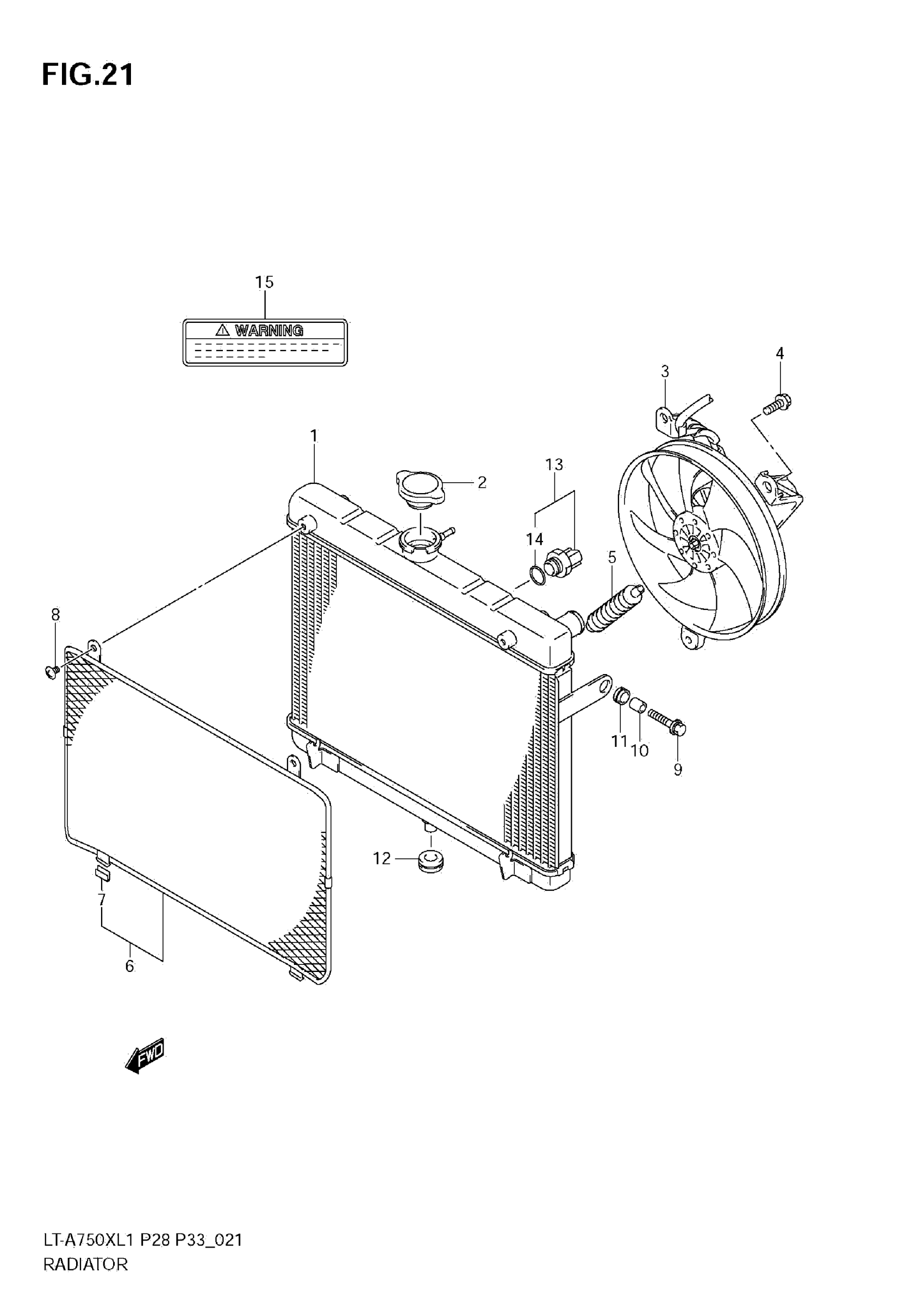

Suzuki LT-A750XL1 (2011) RADIATOR (LT-A750XL1 E33) Diagram

#

Description

Price

1

RADIATOR ASSY This part replaces 17710-31G20.

17710-31G40

$195.71

2

CAP, RADIATOR

17730-14G00

$40.97

3

FAN ASSY, RADIATOR

17800-31G10

$221.07

4

BOLT

01550-0610B

$2.53

5

.BOOT,RDTR FAN MOTOR

17820-07G10

$7.36

6

COVER, RADIATOR This part replaces 17760-09F00.

17760-09F01

$69.87

7

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.82

8

SCREW

02142-0608B

$1.85

9

BOLT (6X25)

09118-06097

$2.57

10

SPACER (6.5X10X12)

09180-06290

$2.09

11

CUSHION

09320-10042

$2.90

12

CUSHION | LOWER

09320-12036

$2.21

13

SWITCH, RADIATOR FAN This part replaces 17680-50F00.

17680-50F01

$63.57

14

O RING

17689-50F00

$2.63

15

LABEL, COOLING FAN This part replaces 17991-02F01.

17991-02F02

$3.27
