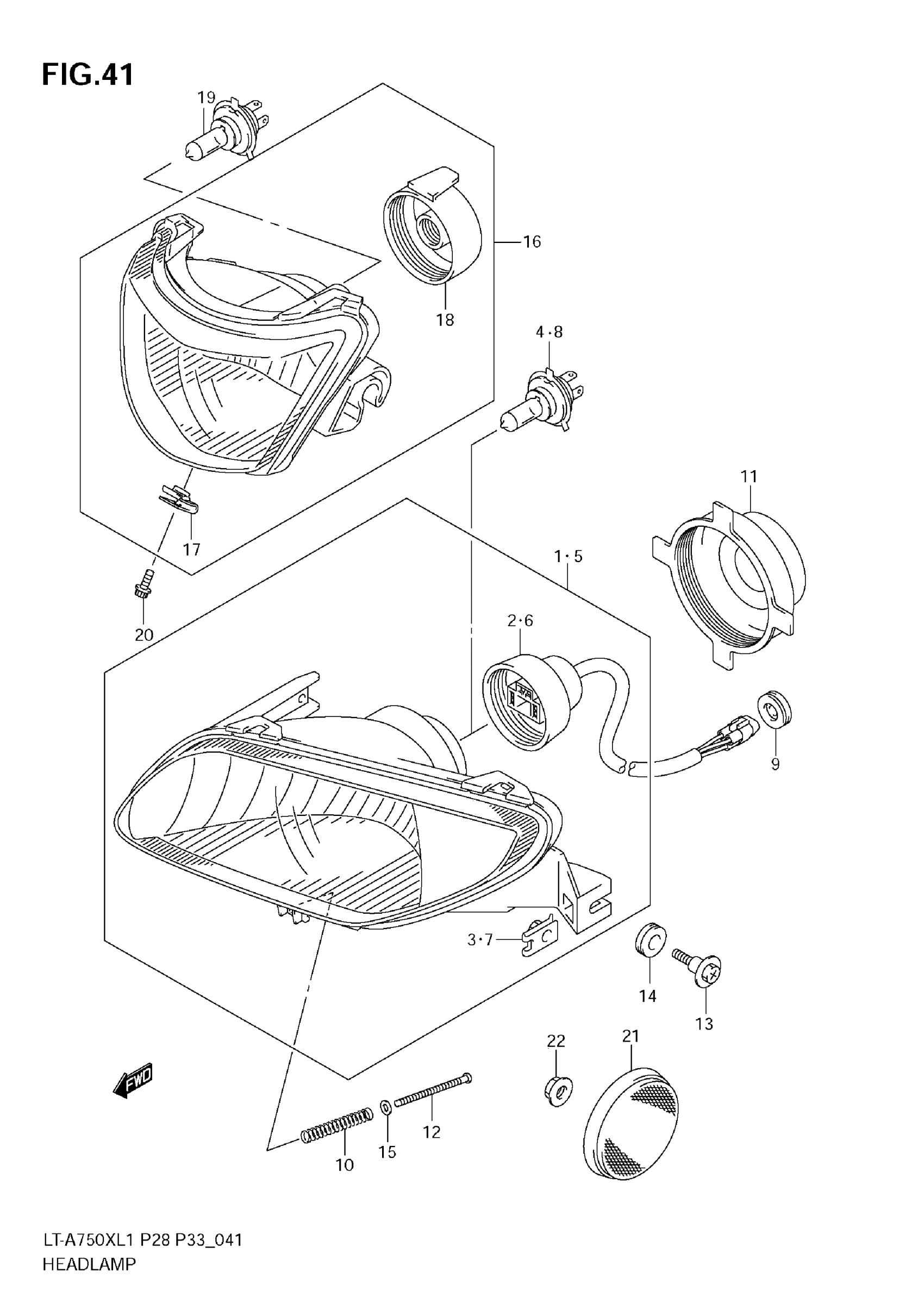

Suzuki LT-A750XL1 (2011) HEADLAMP (LT-A750XZL1 E28) Diagram

HEADLAMP ASSY RH

35100-31G90-999

Unavailable

CORD ASSY RH

35171-31GM1

$33.97

NUT

35157-31G90

$5.22

BULB (12V35/35W) | PHILIPS HS1 12636

09471-12101

$62.83

HEADLAMP ASSY LH This part replaces 35300-31G90-999.

35300-31G92-999

$96.37

CORD ASSY LH

35171-31GH1

$43.43

NUT

35157-31G90

$5.22

BULB (12V35/35W) | PHILIPS HS1 12636

09471-12101

$62.83

GROMMET | HEADLAMP HOUSING

09308-07011

$2.74

SPRING, HEADLAMP ADJUST

35154-31300

$3.64

COVER,HEADLAMP HOUSING

35174-31G00

$10.45

SCREW (4X50) | HEADLAMP ADJUST

09125-04031

$2.38

SCREW (6X22.5)

09139-06118

$3.16

CUSHION

09320-10501

$5.00

WASHER

08322-0104A

$1.99

HEADLAMP ASSY This part replaces 35100-31GB0-999.

35100-31GB3-999

$74.37

NUT, PANEL This part replaces 35157-31GB0.

09148-05052

$3.13

COVER

35174-31GB0

$13.65

BULB (12V,35/35W) | PHILIPS HS1 12636

09471-12101

$62.83

BOLT | HEADLAMP ADJUST

07120-0512B

$2.71

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$14.56

NUT, FRONT SIDE RR

08316-1005B

$2.58
