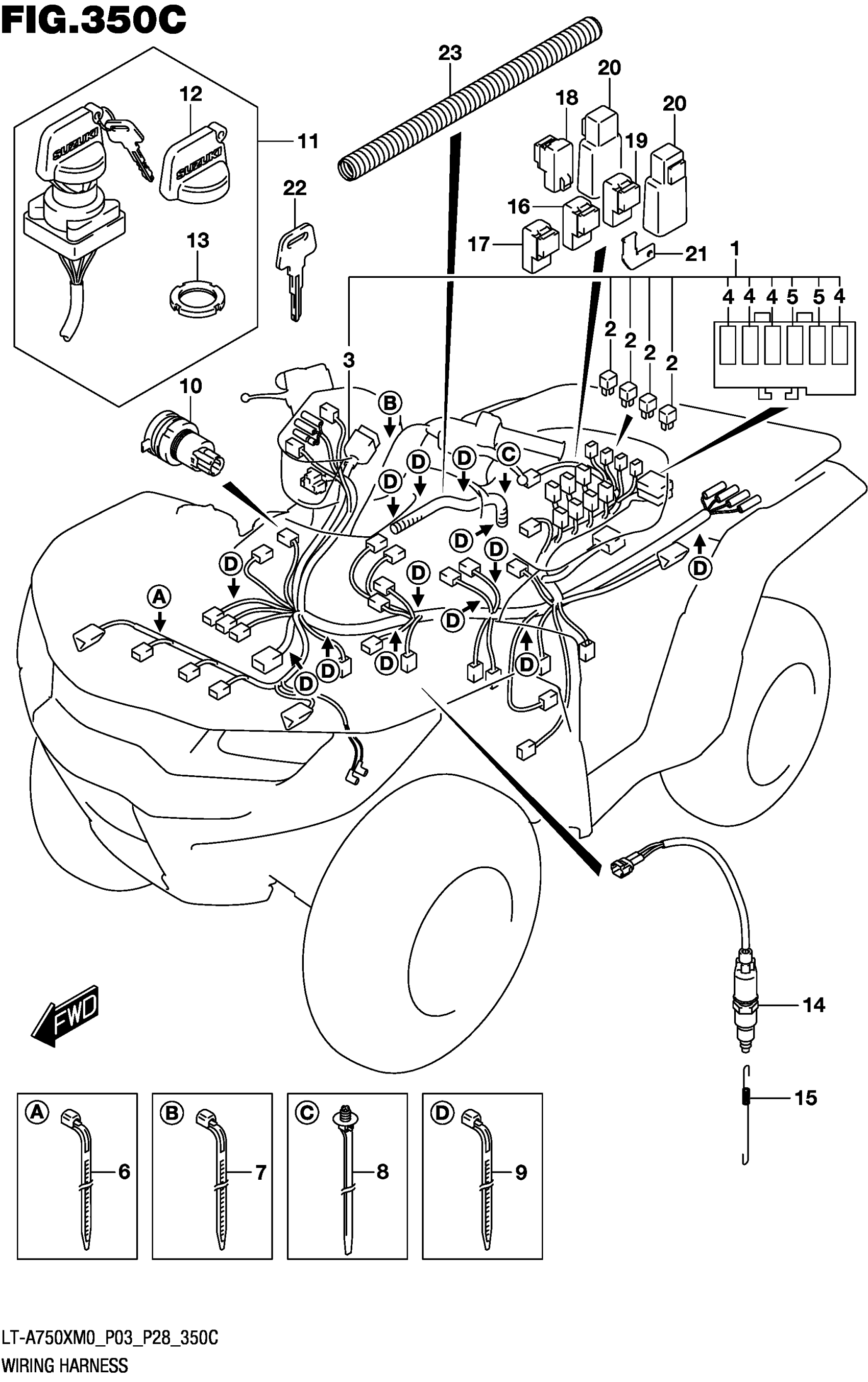

Suzuki LT-A750X M0 (2020) WIRING HARNESS (LT-A750XM0 P33) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-34K00

Unavailable

2

.RECTIFIER ASSY

32800-16A00

$23.07

3

.COVER, SPEED

36618-31G00

Unavailable

4

.FUSE (10A)

09481-10501

$2.06

5

.FUSE (15A)

09481-15501

$2.02

6

CLAMP (L:95)

09407-11401

$2.63

7

CLAMP (L:120)

09407-12402

$3.04

8

CLAMP (L:170)

09407-17403

$4.91

9

CLAMP (L:190)

09407-19401

$3.05

10

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.81

11

SWITCH ASSY,IGNITION This part replaces 37110-34K00.

37110-34K10

$68.91

12

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

13

.NUT,IGNITION SWITCH

37112-24500

$11.48

14

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

15

SPRING

09443-06080

$4.73

16

RELAY ASSY | FOR FUEL PUMP This part replaces 38740-31G10.

38740-31G11

$27.46

17

RELAY ASSY | FOR BRAKE PARKING This part replaces 38740-31G10.

38740-31G11

$27.46

18

RELAY ASSY | FOR DEF LOCK This part replaces 38740-31G10.

38740-31G11

$27.46

19

RELAY ASSY | FOR BACKUP LAMP This part replaces 38740-31G10.

38740-31G11

$27.46

20

RELAY ASSY | FOR DRIVE

38860-65G00

$45.80

21

BRACKET, SIDE STAND RELAY | OPT

38741-05300

Unavailable

22-1

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

22-2

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

22-3

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

22-4

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

23

GUIDE, WIRING HARNESS

36619-31G00

$18.08
