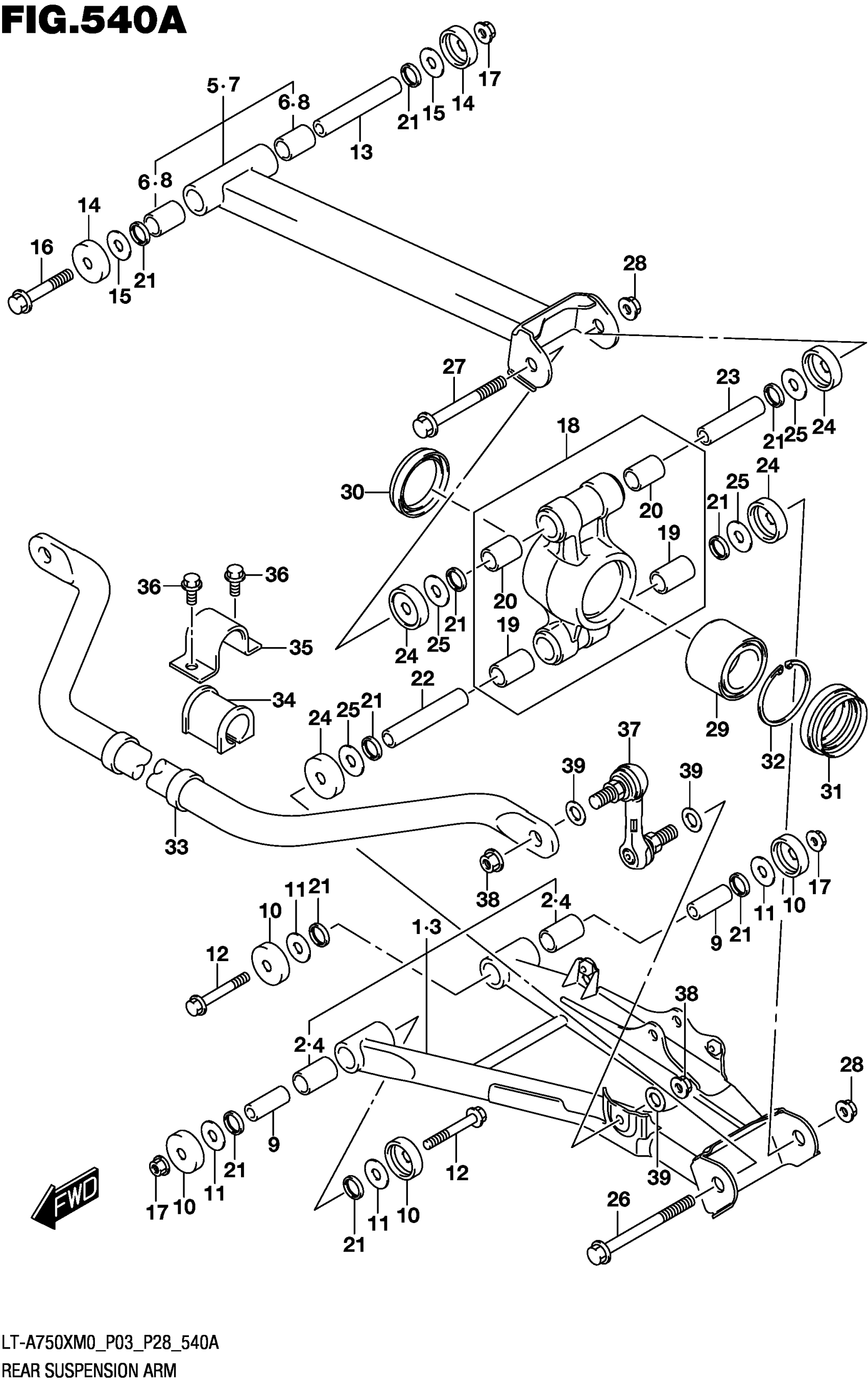

Suzuki LT-A750X M0 (2020) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION LOWER | LOWER, RH

61510-34810

$36.90

2

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$15.85

3

ARM SET, RR SUSPENSION LOWER | LOWER, LH

61520-34810

$38.32

4

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$15.85

5

ARM SET, RR SUSPENSION UP RH | UPPER, RH

61530-31830

$249.18

6

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$15.85

7

ARM SET, RR SUSPENSION UP LH | UPPER, LH

61540-31830

$244.46

8

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$15.85

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$20.82

10

SEAL, FR SPNSN ARM PIVOT

51255-31G10

$15.84

11

WASHER

08211-10281

$2.06

12

BOLT (10X70)

09103-10392

$4.42

13

SPACER

61554-31G00

$18.51

14

SEAL, FR SPNSN ARM PIVOT

51255-31G10

$15.84

15

WASHER

08211-10281

$2.06

16

BOLT (10X120)

09103-10388

$5.44

17

NUT (M10)

09159-10115

$3.21

18

KNUCKLE SET, RR SUSPENSION

61600-11820

$368.62

19

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$15.85

20

.BUSH, RR KNUCKLE UPPER

61551-31G10

$16.77

21

SEAL, SPNSN ARM PVT INNER DUS

52454-45G00

$7.00

22

SPACER

61554-31G00

$18.51

23

SPACER, RR KNUCKLE UPPER

61553-31G10

$23.48

24

SEAL, FR SPNSN ARM PIVOT

51255-31G10

$15.84

25

WASHER

08211-10281

$2.06

26

BOLT (10X120)

09103-10388

$5.44

27

BOLT (10X96)

09103-10387

$8.48

28

NUT (M10)

09159-10115

$3.21

29

BEARING, RR HUB This part replaces 43440-58J00.

43440-58J01

$68.54

30

SEAL, REAR HUB INNER DUST

61615-31G00

$19.19

31

SEAL, REAR HUB OUTER DUST

61616-31G00

$17.02

32

CIRCLIP

08331-4162A

$3.56

33

BAR, RR STABILIZER

61651-34K00

$195.12

34

BUSH, RR STABILIZER

61652-34K00

$6.61

35

PLATE, RR STABILIZER

61653-34K00

$13.72

36

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.32

37

JOINT, RR STABILIZER

61660-31G20

$74.20

38

NUT

09159-10223

$4.90

39

WASHER (10.5X22X2.3)

09160-10039

$2.24
