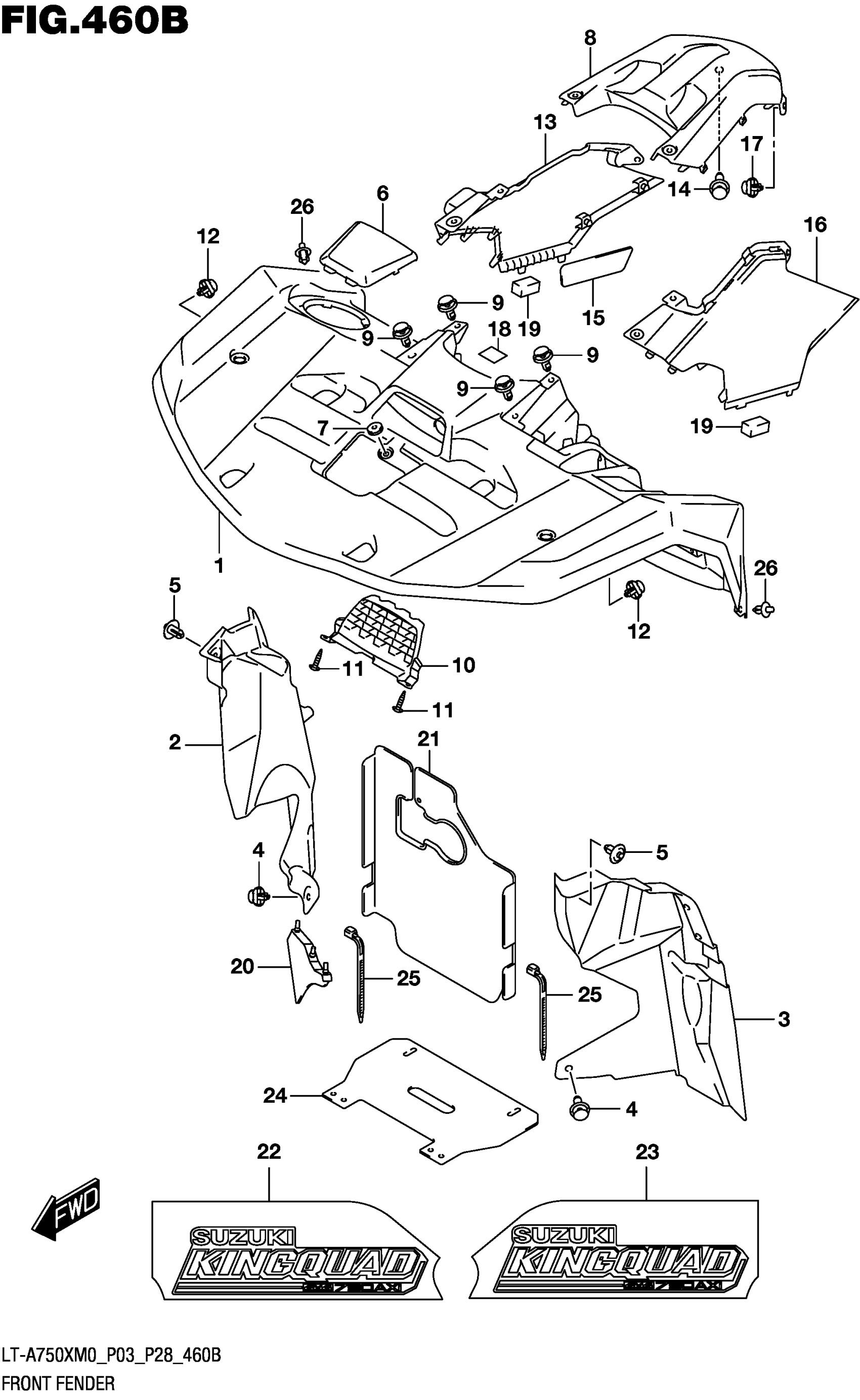

Suzuki LT-A750X M0 (2020) FRONT FENDER (LT-A750XM0 P28) Diagram

#

Description
Price

1-1

FENDER, FRONT (GREEN) This part replaces 53111-34K00-YLG.

53111-34K01-YLG

$635.03

1-2

FENDER, FRONT (RED) This part replaces 53111-34K00-YT9.

53111-34K01-YT9

$635.03

1-3

FENDER, FRONT (CAMOUFLAGE)

53111-34K20-PHW

$877.17

2

MUDFLAP, INNER RH This part replaces 53411-34K00.

53411-34K01

$20.83

3

MUDFLAP, INNER LH This part replaces 53421-34K00.

53421-34K01

$20.72

4

CLIP

09409-08008

$1.87

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

6-1

LID, FENDER FRONT (GREEN) This part replaces 53341-31G04-YLG.

53341-31G06-YLG

$10.28

6-2

LID, FENDER FRONT (RED) This part replaces 53341-31G04-YT9.

53341-31G06-YT9

$10.61

6-3

LID (CAMOUFLAGE)

53341-31GC4-PHW

$55.30

7

CUSHION (8x26x7)

09320-08018

$3.04

8

FENDER, CENTER This part replaces 53119-34K01.

53119-34K04

$120.33

9

CLIP

09409-08008

$1.87

10

COVER, INNER

53212-34K00

$77.47

11

SCREW

03541-0516A

$1.49

12

CLIP

09409-08008

$1.87

13-1

COVER, SIDE RH (GREEN)

53112-34K01-YLG

$80.30

13-2

COVER, SIDE RH (RED)

53112-34K01-YT9

$104.70

13-3

COVER, SIDE RH (CAMOUFLAGE)

53112-34K11-PHW

$293.42

14

CLIP

09409-08008

$1.87

15

SHIELD, SIDE COVER NO.2

53113-34K00

$8.72

16-1

COVER, SIDE LH (GREEN) This part replaces 53122-34K01-YLG.

53122-34K03-YLG

$123.17

16-2

COVER, SIDE LH (RED)

53122-34K01-YT9

$84.00

16-3

COVER, SIDE LH (CAMOUFLAGE)

53122-34K11-PHW

$293.42

17

CLIP

09409-08008

$1.87

18

CUSHION (25X35X4) | CUT AS REQUIRED

44612-13600

$4.65

19

CUSHION, COVER SIDE

53114-34K00

$1.70

20

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$15.47

21

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$30.10

22

TAPE,COVER SIDE RH (GRAY,GRAY

68151-34K00-BM6

$19.43

23

TAPE,COVER SIDE LH (GRAY,GRAY

68152-34K00-BM6

$19.43

24

GUARD, RADIATOR

53113-31G10

$19.43

25

CLAMP (L:125)

09407-14403

$2.26

26

CLIP

09409-08008

$1.87
