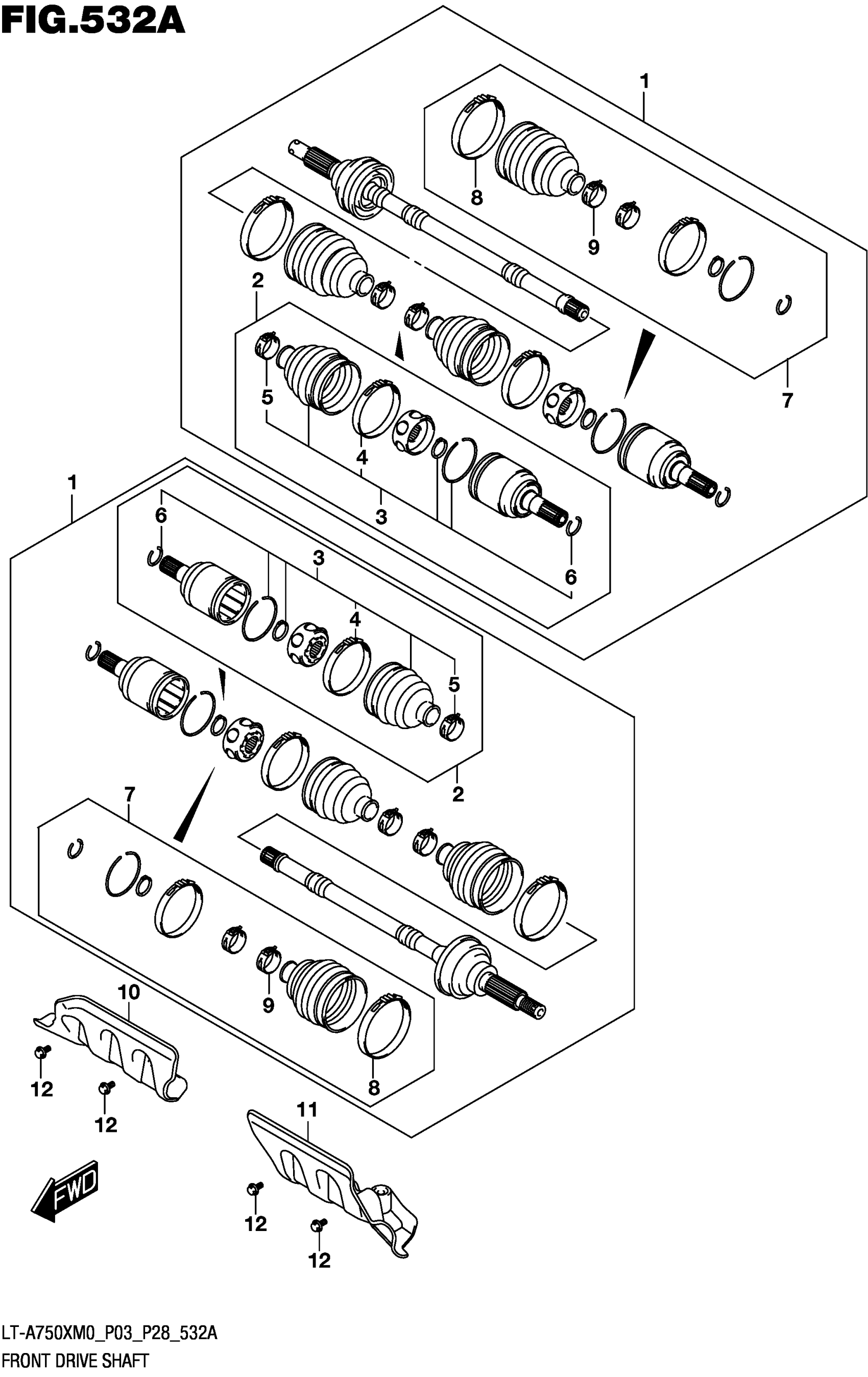

Suzuki LT-A750X M0 (2020) FRONT DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, FRONT DRIVE

54901-31G31

$368.83

2

.JOINT SET

54933-31G21

$300.88

3

..BOOT SET, INNER

54931-31G21

$119.03

4

...BAND, BOOT

44121-31G50

$5.46

5

...BAND, BOOT

44124-31G20

$8.41

6

...CIRCLIP

54925-19B01

$7.22

7

.BOOT SET, OUTER

54930-31G21

$152.95

8

..BAND, BOOT

44121-31G40

$10.62

9

...BAND, BOOT

44124-31G20

$8.41

10

PROTECTOR,FR DRIVE SHAFT,R This part replaces 54903-31G00.

54903-31G01

$20.59

11

PROTECTOR,FR DRIVE SHAFT,L This part replaces 54904-31G00.

54904-31G01

$29.42

12

BOLT (6X12)

09111-06085

$4.16
