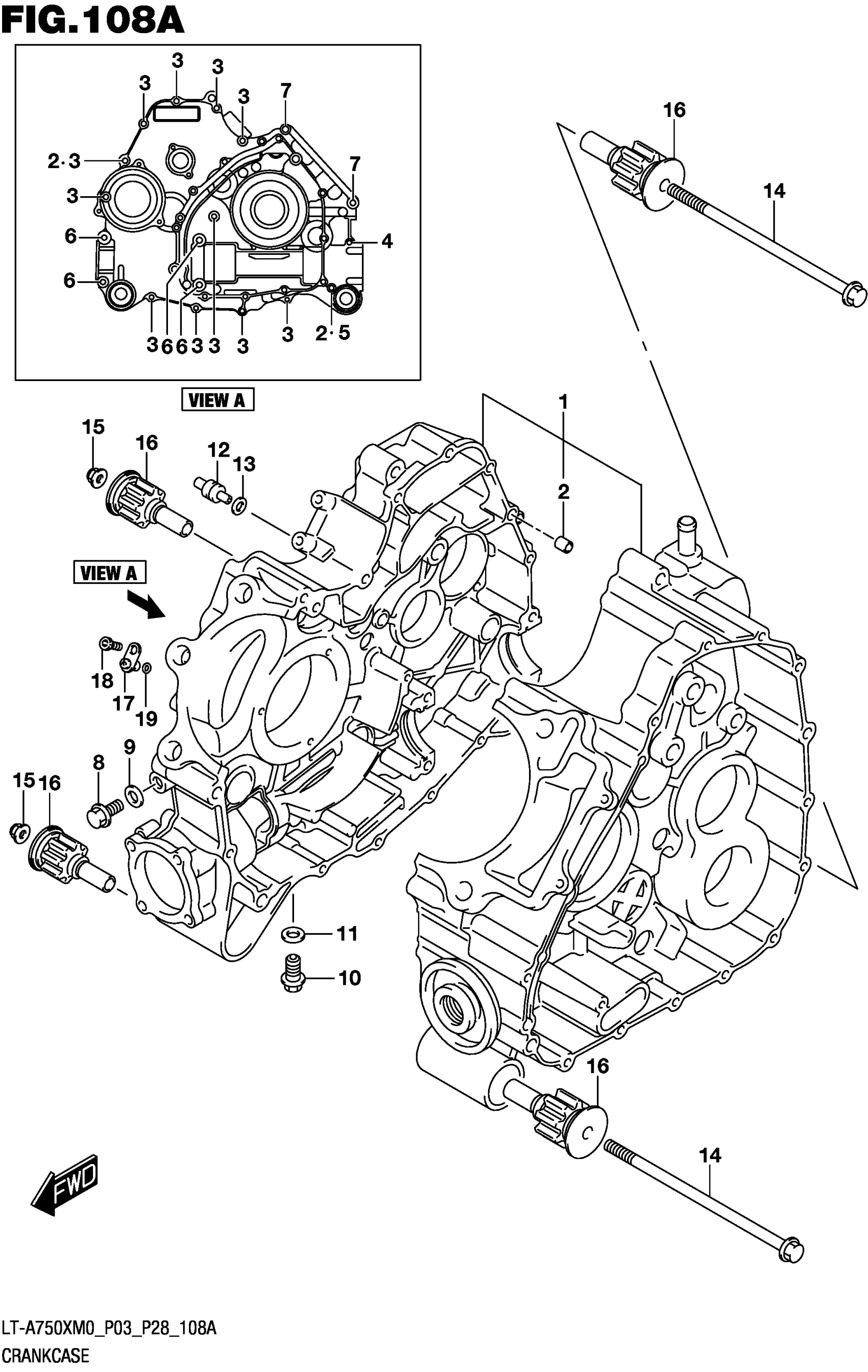

Suzuki LT-A750X M0 (2020) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-34860

$1,521.52

2

PIN

04211-11169

$1.78

3

BOLT

01547-0650A

$2.46

4

.BOLT

01547-0680A

$3.30

5

.BOLT

01547-0690A

$2.70

6

.BOLT

01550-0850A

$3.67

7

BOLT

01550-0875A

$3.55

8

BOLT (8X12)

01550-0812A

$2.32

9

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

10

PLUG, DRAIN | OIL DRAIN This part replaces 09247-12102.

09247-12104

$2.73

11

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

12

JET,T/M OIL GALLERY

09493-20014

$16.87

13

O-RING (D:1.2,ID:4)

09280-04004

$1.91

14

BOLT (10X195)

09103-10118

$11.56

15

NUT (M10)

09159-10115

$3.55

16

BUSH, ENG MTG

11651-31G10

$21.96

17

JET,PISTON COOLING

11390-34K00

$90.20

18

BOLT

09106-06142

$3.03

19

O-RING (D:1.2,ID:4.7)

09280-05007

$1.92
