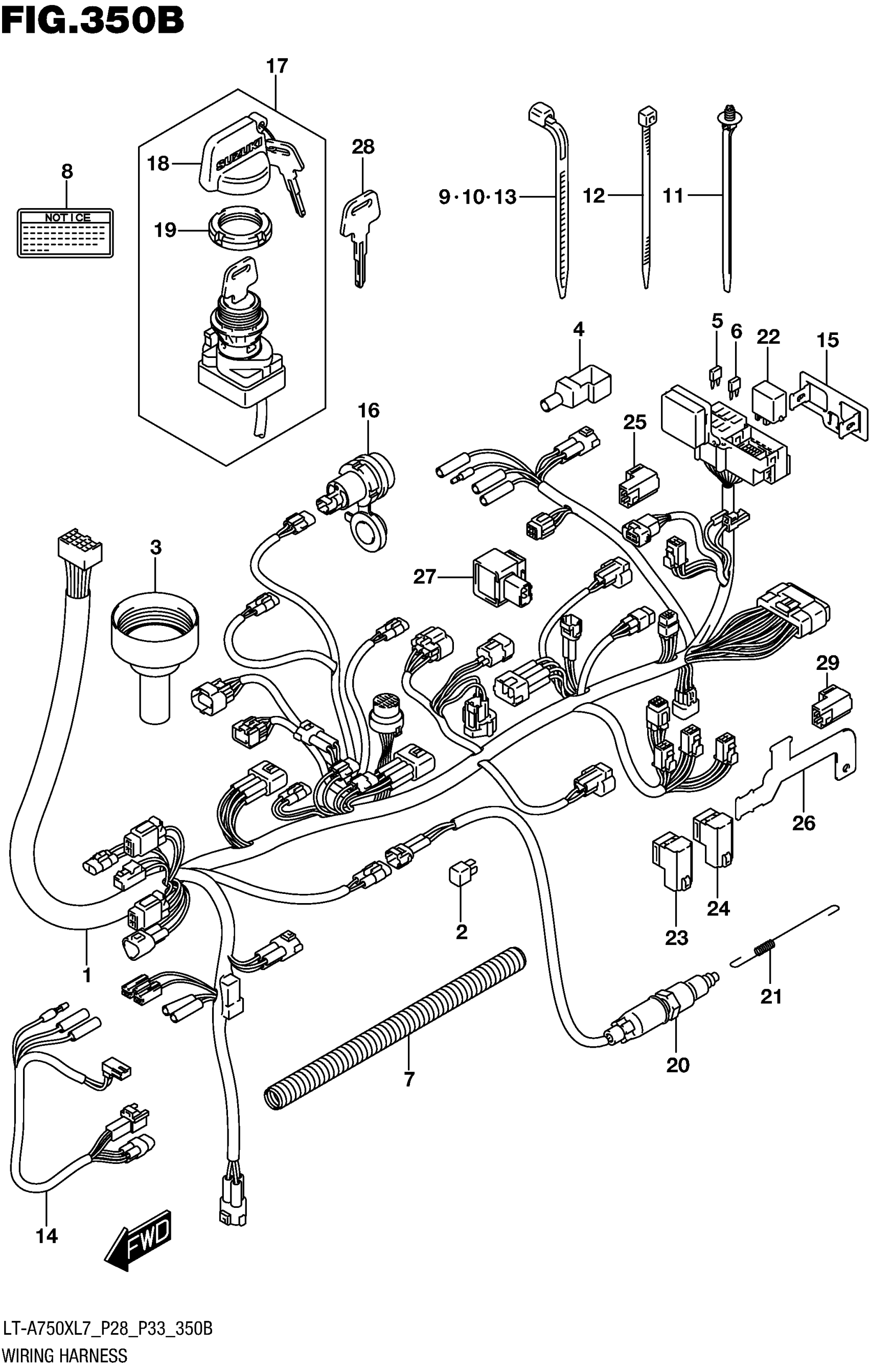

Suzuki LT-A750X AXI (RED, GREEN) (2017) WIRING HARNESS (LT-A750XL7 P33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-31GN0

$705.33

2

.RECTIFIER ASSY

32800-16A00

$22.07

3

.COVER, SPEED

36618-31G00

Unavailable

4

.COVER, CONNECTOR

36618-31G10

$10.50

5

.FUSE (10A)

09481-10501

$2.14

6

.FUSE (15A)

09481-15501

$2.14

7

GUIDE, WIRING HARNESS

36619-31G00

$20.42

8

LABEL, POWER SOURCE TERMINAL

38852-09F50

$8.21

9

CLAMP (L:95)

09407-11401

$2.87

10

CLAMP (L:125)

09407-14403

$2.31

11

CLAMP (L:170)

09407-17403

$4.79

12

CLAMP (L:145)

09407-14407

$2.84

13

CLAMP (L:190)

09407-19401

$3.32

14

WIRE, FRONT BRAKE SW LEAD

36855-31G00

$65.58

15

BRACKET,FUSE BOX

36744-38F00

$12.83

16

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$17.03

17

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$78.26

18

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.77

19

.NUT,IGNITION SWITCH

37112-24500

$12.60

20

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

21

SPRING

09443-06080

$6.00

22

RELAY,NEUTRAL START

38730-09F00

$44.54

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

24

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

25

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$36.47

26

BRACKET, RELAY

38741-31G30

Unavailable

27

RELAY ASSY, DRIVE

38750-31G00

$116.07

28

RELAY ASSY This part replaces 38740-31G10.

38740-31G11

$27.01

29-1

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.71

29-2

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.71

29-3

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.71

29-4

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.71
