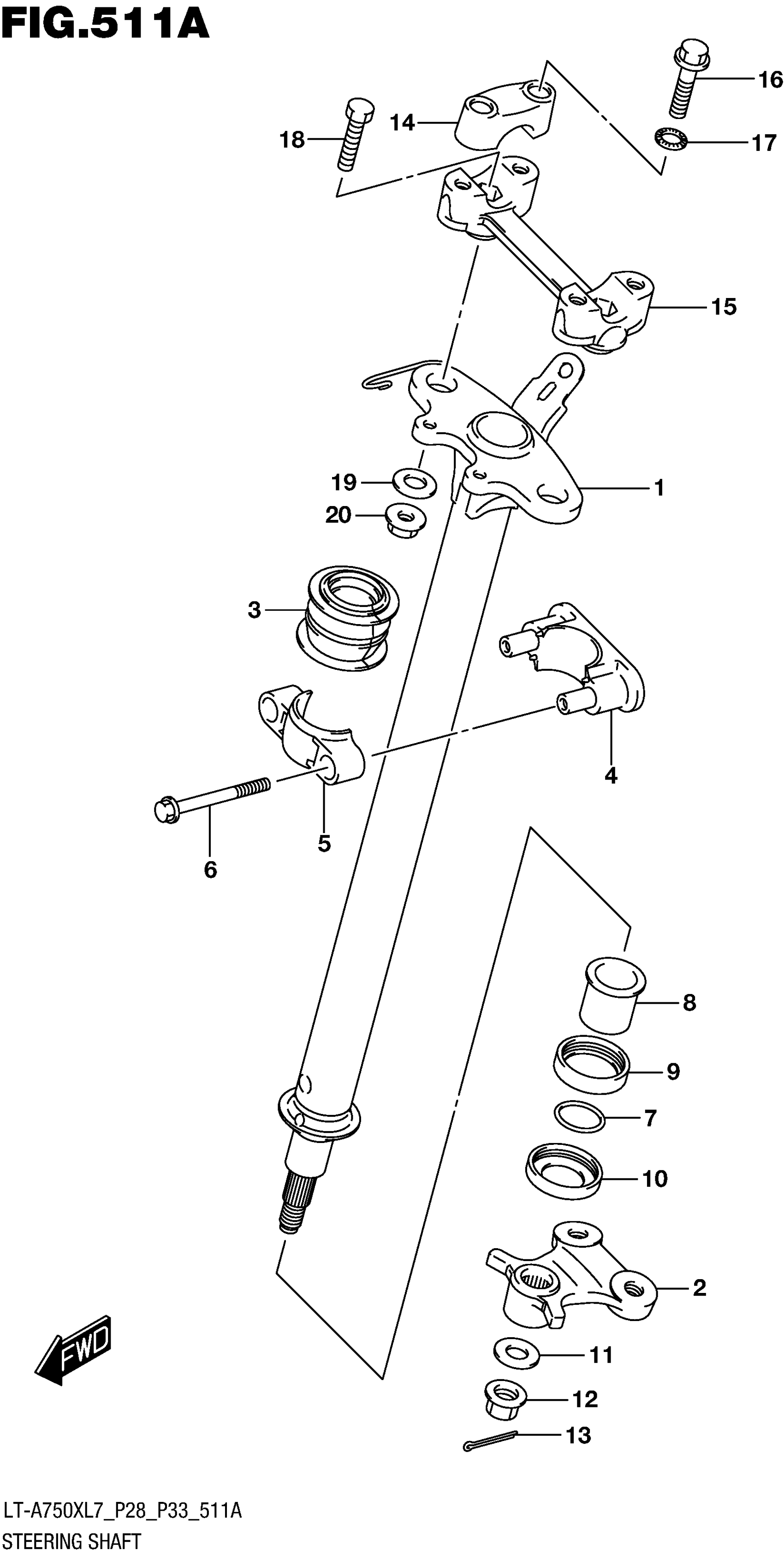

Suzuki LT-A750X AXI (RED, GREEN) (2017) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING

51650-31G20

$309.10

2

PLATE, STEERING ARM

51653-31G20

$135.25

3

BUSH, STEERING SHAFT HOLDER This part replaces 51678-31G00.

51678-31G01

$11.64

4

HOLDER, STEERING SHAFT

51670-31G00

$35.72

5

HOLDER, STEERING SHAFT FRONT

51673-31G00

$25.52

6

BOLT

01550-0875A

$3.55

7

O RING (D:2.4,ID:23.7)

09280-24010

$5.64

8

BUSH, STEERING SHAFT LOWER

51661-31G00

$30.05

9

SEAL, DUST This part replaces 51662-31G00.

51662-31G01

$10.28

10

SEAL, DUST This part replaces 51663-31G10.

51663-31G11

$15.38

11

WASHER (14.5X30X3.2)

09160-14062

$2.81

12

NUT

09159-14027

$13.67

13

PIN

04111-2020A

$1.49

14

CLAMP, HANDLEBAR UPPER (BLACK

56211-09F00-291

$29.37

15

CLAMP, HANDLE HOLDER

56211-31G10

$43.17

16

BOLT (8X35)

01550-0835A

$3.04

17

WASHER

09164-08015

$3.21

18

BOLT

01500-1035A

$3.72

19

WASHER (10.5X22X2.3)

09160-10039

$2.26

20

NUT

09159-10115

$3.55
