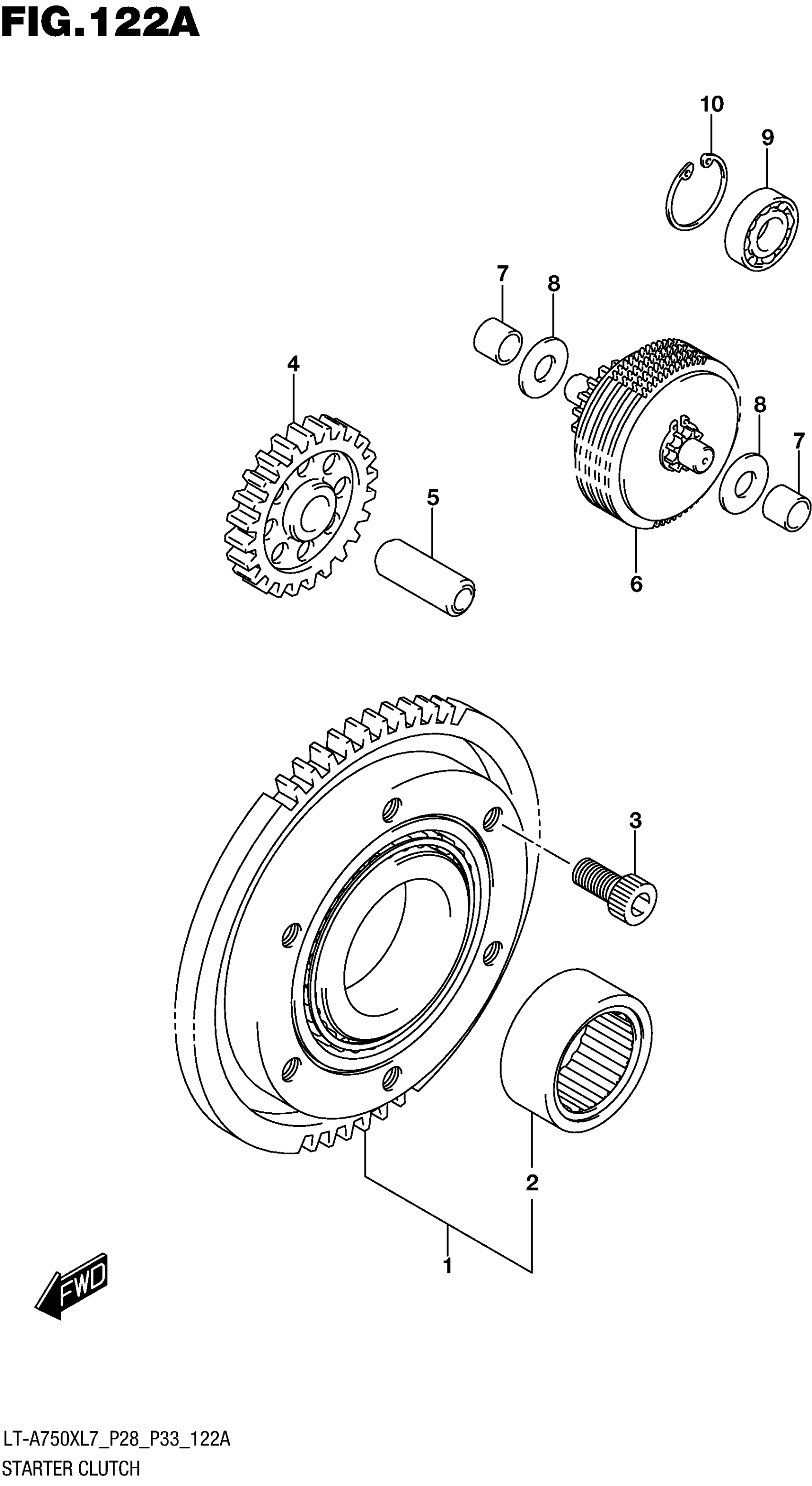

Suzuki LT-A750X AXI (RED, GREEN) (2017) STARTER CLUTCH Diagram

#

Description
Price

1

CLUTCH SET, STARTER (NT:73)

12600-31810

$347.67

2

.BEARING (35X45X20)

09263-35042

$48.78

3

BOLT (8X20)

09106-08106

$2.72

4

GEAR, STARTER IDLE NO.2

12612-31G00

$86.82

4

(NT:27)

12612-31G00

$86.82

5

PIN (8X12X33)

09206-12007

$6.83

6

LIMITER ASSY, STARTER IDLE

12600-31G01

$218.72

6

GEAR (NT:14/57)

12600-31G01

$218.72

7

BUSH, LIMITER GEAR SHAFT

12618-31G00

$4.03

8

WASHER

08211-10221

$2.28

9

BEARING (12X28X8)

09262-12001

$18.47

10

CIRCLIP

08331-41289

$2.68
