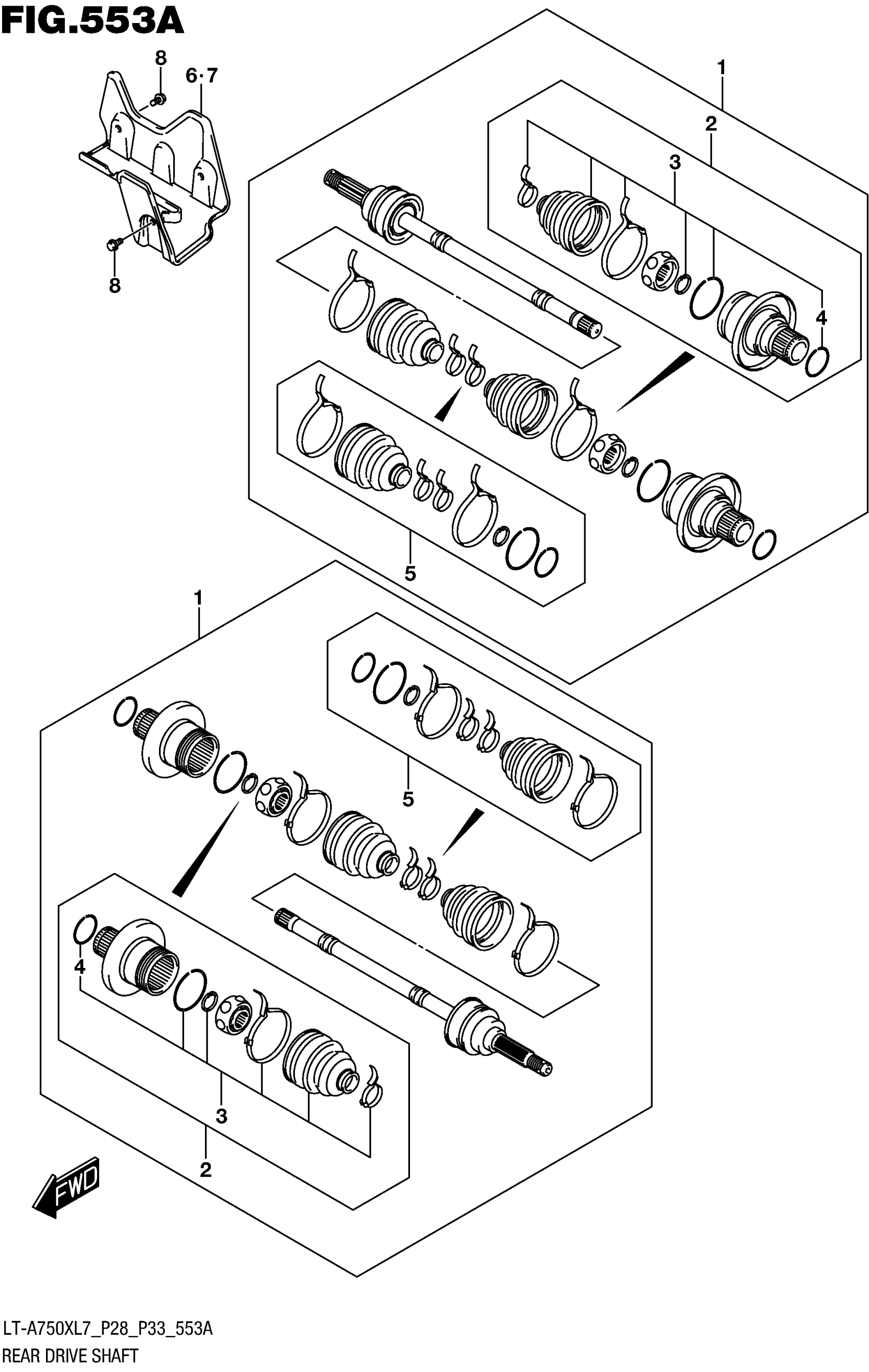

Suzuki LT-A750X AXI (RED, GREEN) (2017) REAR DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, REAR DRIVE

64901-31G41

$328.20

2

.JOINT SET

64933-31G12

$280.03

3

..BOOT SET, INNER

64931-31G12

$103.47

4

...CIRCLIP

54925-31G01

$6.17

5

.BOOT SET, OUTER

64930-31G13

$139.42

6

PROTECTOR,RR DRIVE SHAFT,R This part replaces 64903-31G00.

64903-31G11

$26.54

7

PROTECTOR,RR DRIVE SHAFT,L This part replaces 64904-31G00.

64904-31G11

$26.38

8

BOLT (6X12)

09111-06085

$4.54
