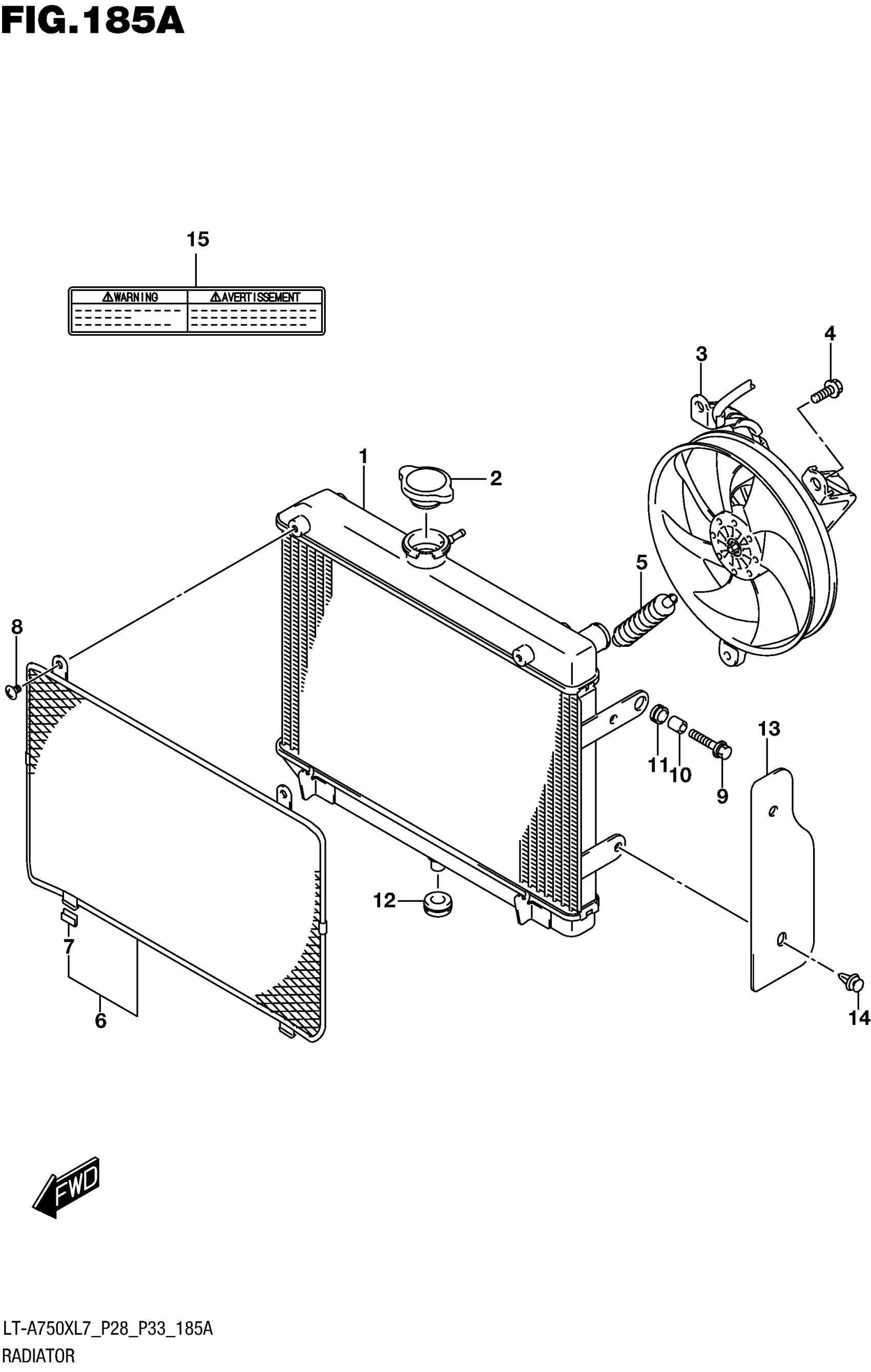

Suzuki LT-A750X AXI (RED, GREEN) (2017) RADIATOR (LT-A750XL7 P28) Diagram

#

Description
Price

1

RADIATOR ASSY

17710-31G30

$210.55

2

CAP ASSY, RADIATOR

17730-14G00

$40.97

3

FAN ASSY, RADIATOR

17800-31G20

$227.71

4

BOLT

01550-0610A

$2.01

5

.BOOT,RDTR FAN MOTOR

17820-07G10

$7.36

6

COVER, RADIATOR This part replaces 17760-09F00.

17760-09F01

$69.87

7

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.82

8

SCREW

02142-0608A

$1.36

9

BOLT (6X25)

09118-06097

$2.57

10

SPACER (6.5X10X12)

09180-06290

$2.09

11

CUSHION

09320-10042

$2.90

12

CUSHION

09320-12036

$2.21

13

GUARD, RADIATOR FAN

17811-31G00

$59.92

14

CLIP

09409-07333

$2.37

15

LABEL, COOLING FAN This part replaces 17991-02F40.

17991-02F41

$3.39
