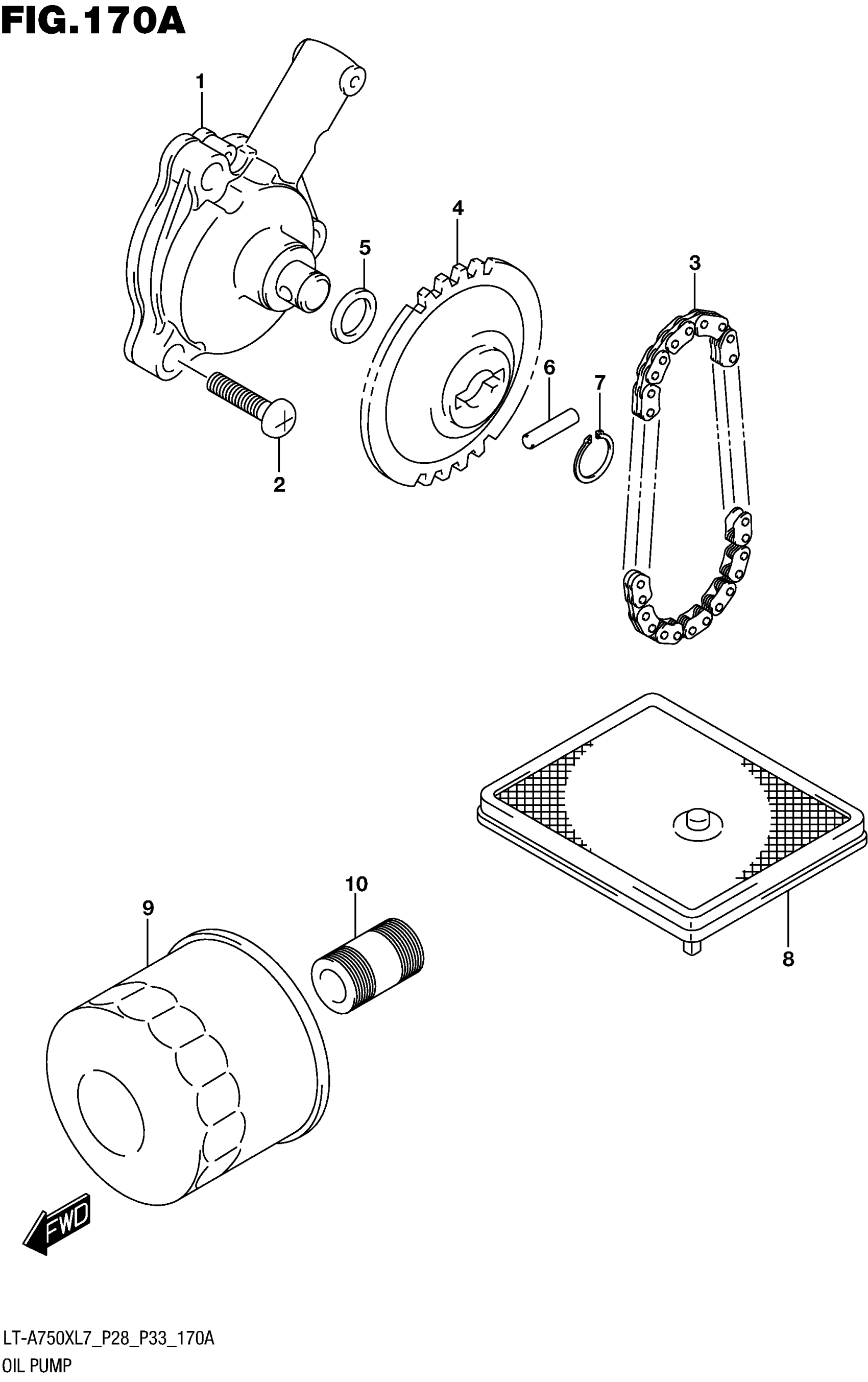

Suzuki LT-A750X AXI (RED, GREEN) (2017) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-31G00

$176.37

2

SCREW (6X25)

09125-06035

$2.23

3

CHAIN, OIL PUMP DRIVE

16310-31G00

$32.86

3

(82RH2005-60M)

16310-31G00

$32.86

4

SPROCKET, OIL PUMP DRIVEN

16331-31G00

$66.88

4

(NT:31)

16331-31G00

$66.88

5

SHIM (10X18X0.5)

09181-10158

$1.97

6

PIN (4X15.8)

09261-04009

$1.56

7

CIRCLIP

08331-31109

$1.78

8

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

9

FILTER ASSY, ENG OIL

16510-07J00

$13.10

10

UNION,OIL STAND

16591-06B01

$7.05
