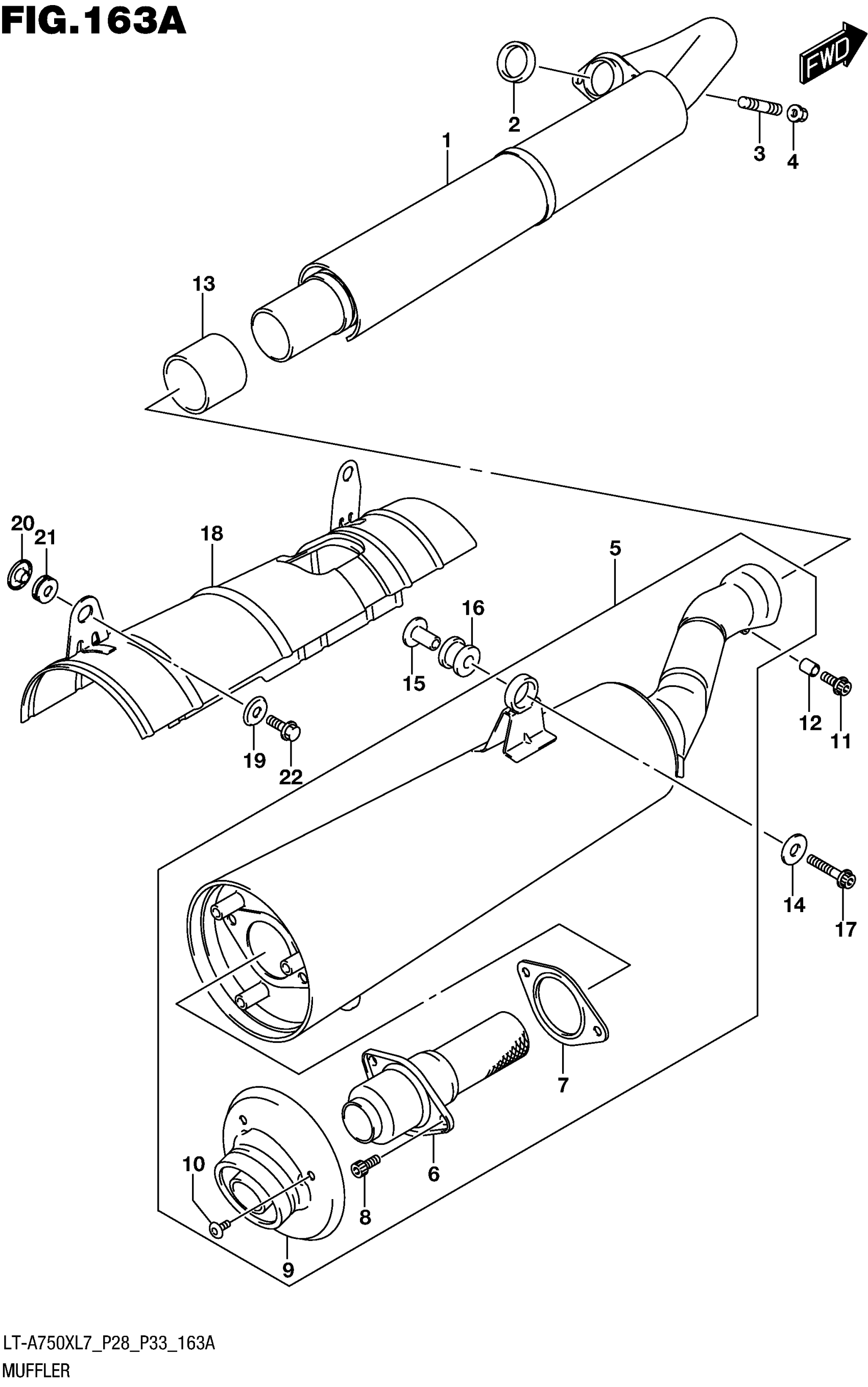

Suzuki LT-A750X AXI (RED, GREEN) (2017) MUFFLER Diagram

#

Description
Price

1

PIPE ASSY, EXH

14100-31G60

$318.77

2

GASKET, EXH PIPE

14181-31G00

$13.28

3

STUD BOLT

01421-0820A

$1.91

4

NUT

08319-3108A

$2.32

5

BODY, MUFFLER

14320-31G70

$848.17

6

.ARRESTER

14850-31G70

$66.48

7

.GASKET

14773-31G02

$13.85

8

.BOLT

07130-0612B

$3.05

9

.COVER, MUF TAIL

14790-31G60

$108.97

10

.SCREW (6X12)

09139-06027

$2.16

11

BOLT

07120-0835B

$4.58

12

SPACER, CLAMP

14458-45G01

$6.92

13

CONNECTOR, MUFFLER JOINT

14771-45G00

$25.76

14

WASHER (8.5X30X2.3)

09160-08503

$2.50

15

SPACER (8.6X12X24.2)

09180-08152

$5.83

16

CUSHION

09320-12071

$9.15

17

BOLT

07120-0840A

$3.42

18

COVER, MUF

14880-31G60

Unavailable

19

WASHER, MUF COVER

14184-07G00

$1.98

20

SPACER, MUF COVER

14185-07G00

$3.76

21

CUSHION

09320-08069

$8.37

22

BOLT

01550-0616A

$1.97
