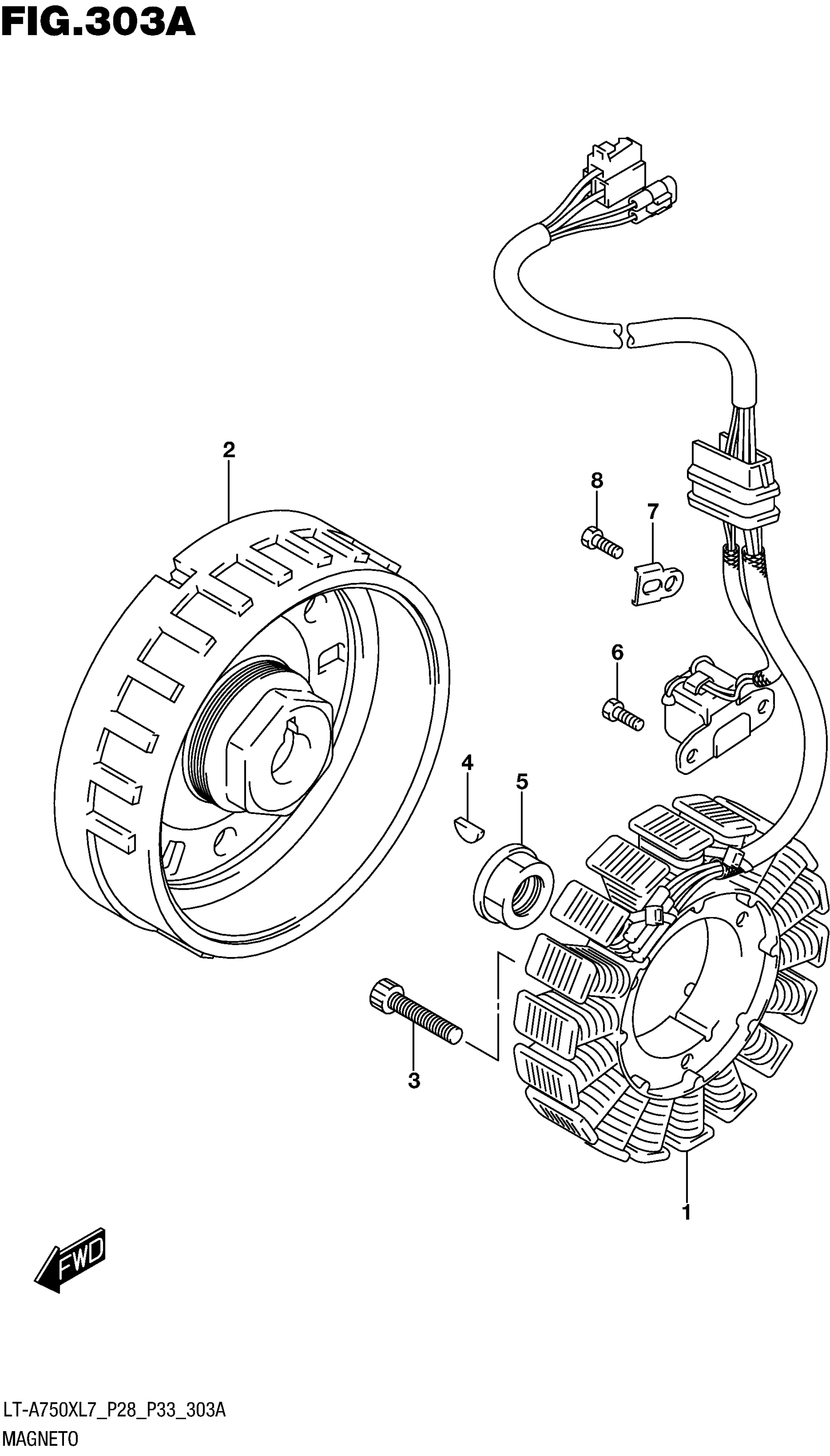

Suzuki LT-A750X AXI (RED, GREEN) (2017) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY, MAGNETO This part replaces 32101-31G01.

32101-31G02

$758.97

2

ROTOR ASSY

32102-31G10

$829.28

3

BOLT

07130-0630A

$3.72

4

KEY

09420-05007

$4.60

5

NUT,MAGNETO ROTOR

31792-11H00

$11.78

6

BOLT (5X10)

09100-05019

$1.93

7

CLAMP, MAGNETO LEAD

31497-45000

$1.92

8

BOLT (5X10)

09100-05019

$1.93
