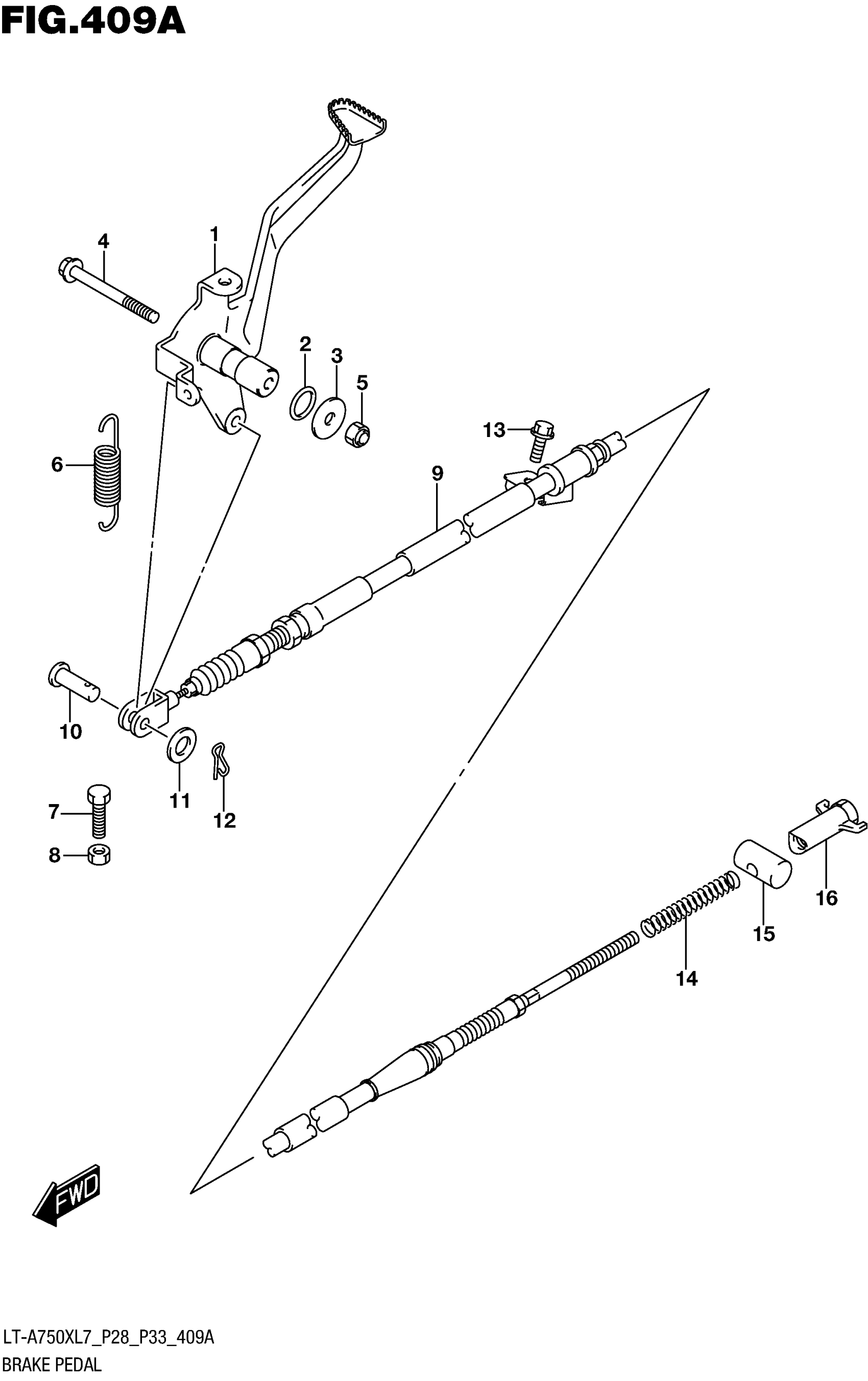

Suzuki LT-A750X AXI (RED, GREEN) (2017) BRAKE PEDAL Diagram

Description

Price

PEDAL, BRAKE

43110-31G00

$196.61

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

WASHER (6.5X22X2.3)

09160-06138

$1.91

BOLT (6X65)

09103-06195

$4.00

NUT

08319-2106A

$1.91

SPRING

09443-11036

$4.93

BOLT

01500-0620A

$1.78

NUT

08310-0006A

$1.84

CABLE, REAR BRAKE

58510-31G00

$84.36

PIN (L:17.5)

09200-05001

$1.65

WASHER

08322-0106B

$2.26

CLIP

09385-06012

$1.89

BOLT

01547-0616A

$2.03

SPRING

09440-08042

$2.92

09209-13006

$5.24

NUT

09150-06015

$3.56
