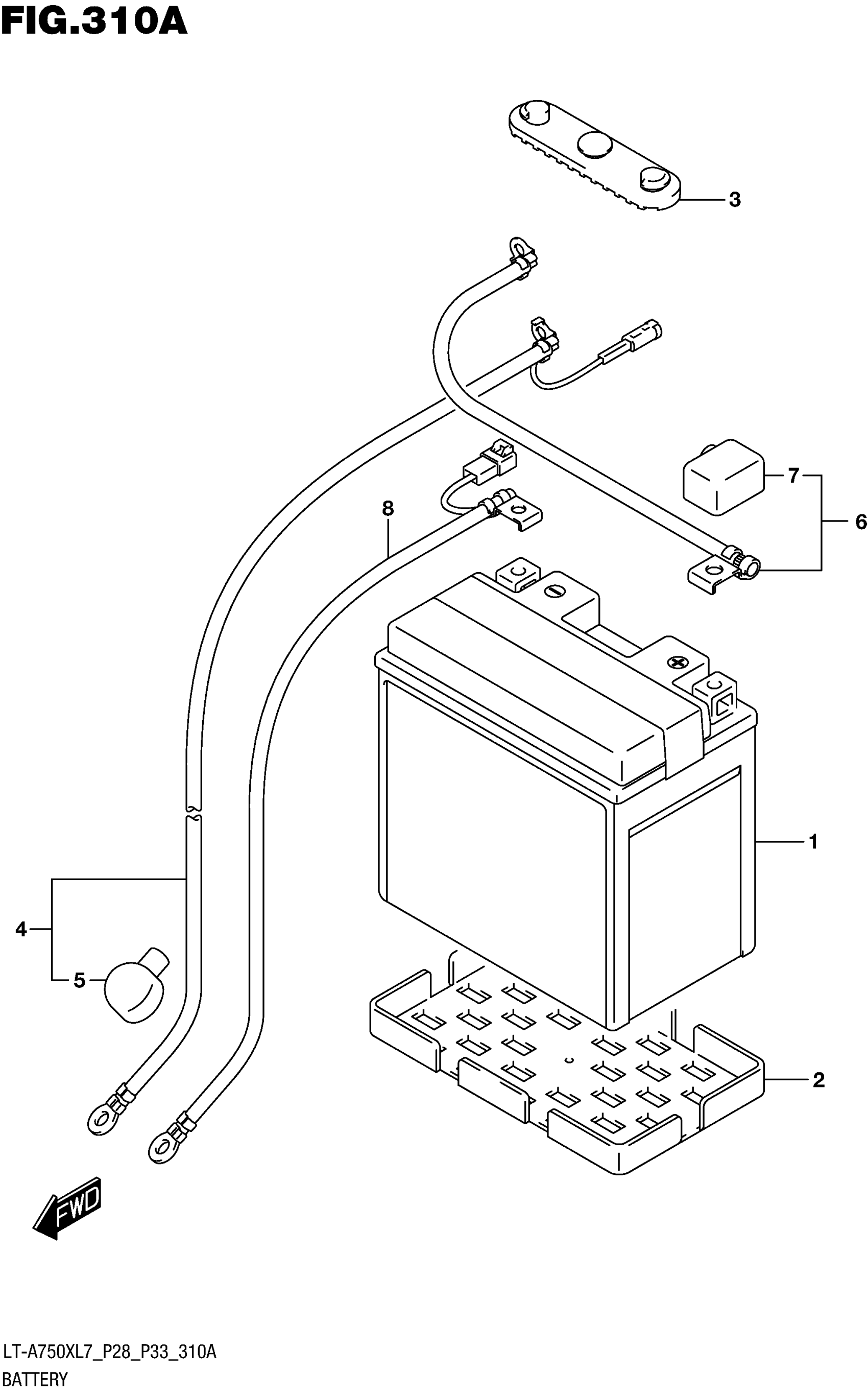

Suzuki LT-A750X AXI (RED, GREEN) (2017) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY This part replaces 33610-03G12.

33610-03G10

$143.65

1

BATTERY ASSY This part replaces 33610-03G12.

33610-03G10

$143.65

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

PROTECTOR, BATTERY

33652-07G00

$4.04

4

WIRE, STARTER MOTOR

33810-31G12

$76.83

5

.CAP,STARTER MOTOR

33624-27H00

$6.67

6

WIRE, BATTERY PLUS

33820-31G00

$32.80

7

.CAP, BATTERY PLUS

33624-10D00

$6.30

8

WIRE, BATTERY MINUS

33860-31G10

$35.76
