2018 Suzuki LT-A750X Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2018 Suzuki LT-A750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

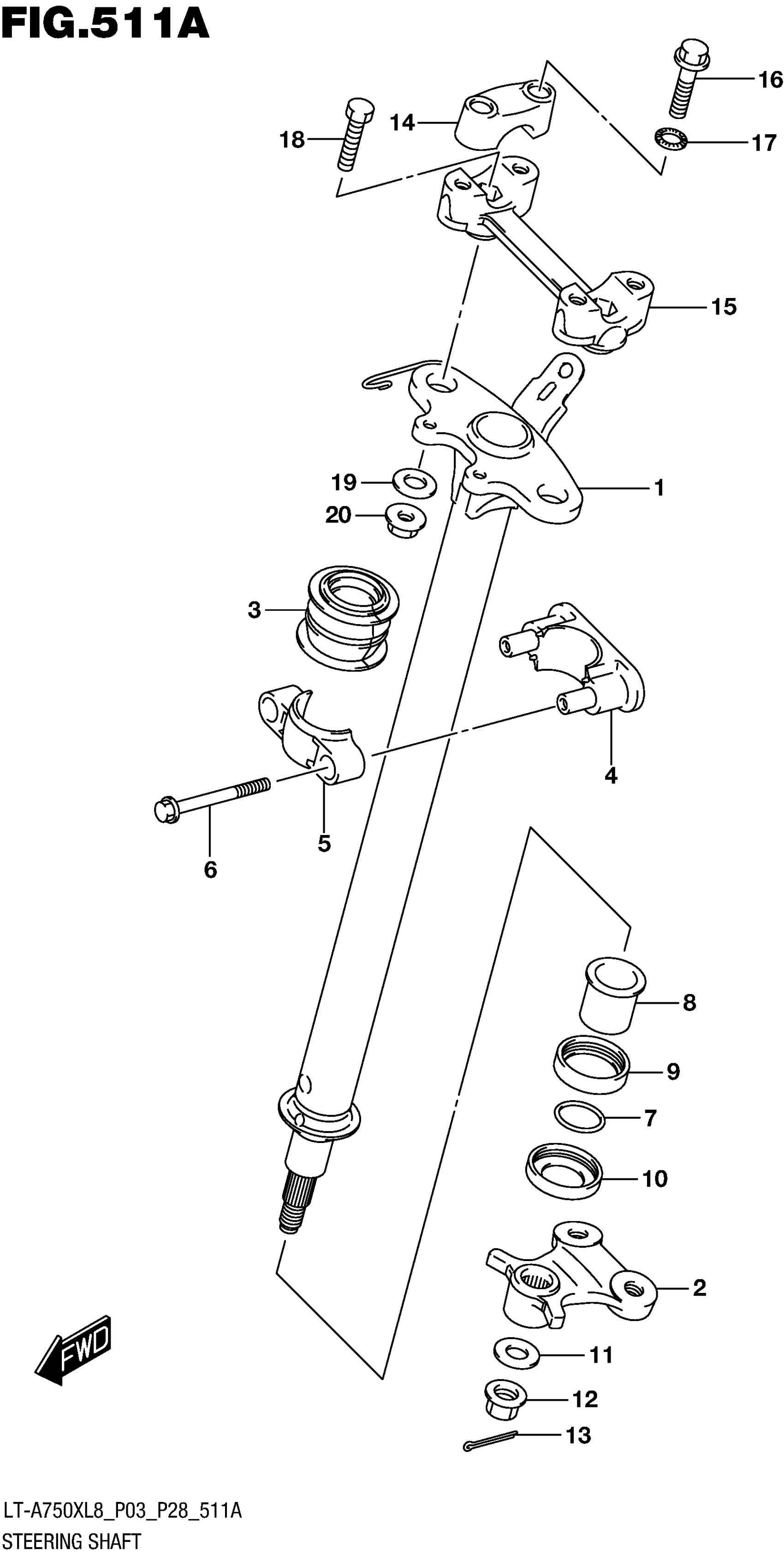

2018 Suzuki LT-A750X Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

51650-31G20

1
Out of stock

2

PLATE, STEERING ARM

51653-31G20

1
Out of stock

3

BUSH, STEERING SHAFT HOLDER This part replaces 51678-31G00.

51678-31G01

1
Out of stock

4

HOLDER, STEERING SHAFT

51670-31G00

1
Out of stock

5

HOLDER, STEERING SHAFT FRONT

51673-31G00

1
Out of stock

6

BOLT

01550-0875A

2
Out of stock

7

O RING (D:2.4,ID:23.7)

09280-24010

1
Out of stock

8

BUSH, STEERING SHAFT LOWER

51661-31G00

1
Out of stock

9

SEAL, DUST This part replaces 51662-31G00.

51662-31G01

1
Out of stock

10

SEAL, DUST This part replaces 51663-31G10.

51663-31G11

1
Out of stock

11

WASHER (14.5X30X3.2)

09160-14062

1
Out of stock

12

NUT

09159-14027

1
Out of stock

13

PIN

04111-2020A

1
Out of stock

14

CLAMP, HANDLEBAR UPPER (BLACK

56211-09F00-291

2
Out of stock

15

CLAMP, HANDLE HOLDER

56211-31G10

1
Out of stock

16

BOLT (8X35)

01550-0835A

4
Out of stock

17

WASHER

09164-08015

4
Out of stock

18

BOLT

01500-1035A

2
Out of stock

19

WASHER (10.5X22X2.3)

09160-10039

2
Out of stock

20

NUT

09159-10115

2
Out of stock
