2018 Suzuki LT-A750X Handle Lever Diagram

← All diagrams

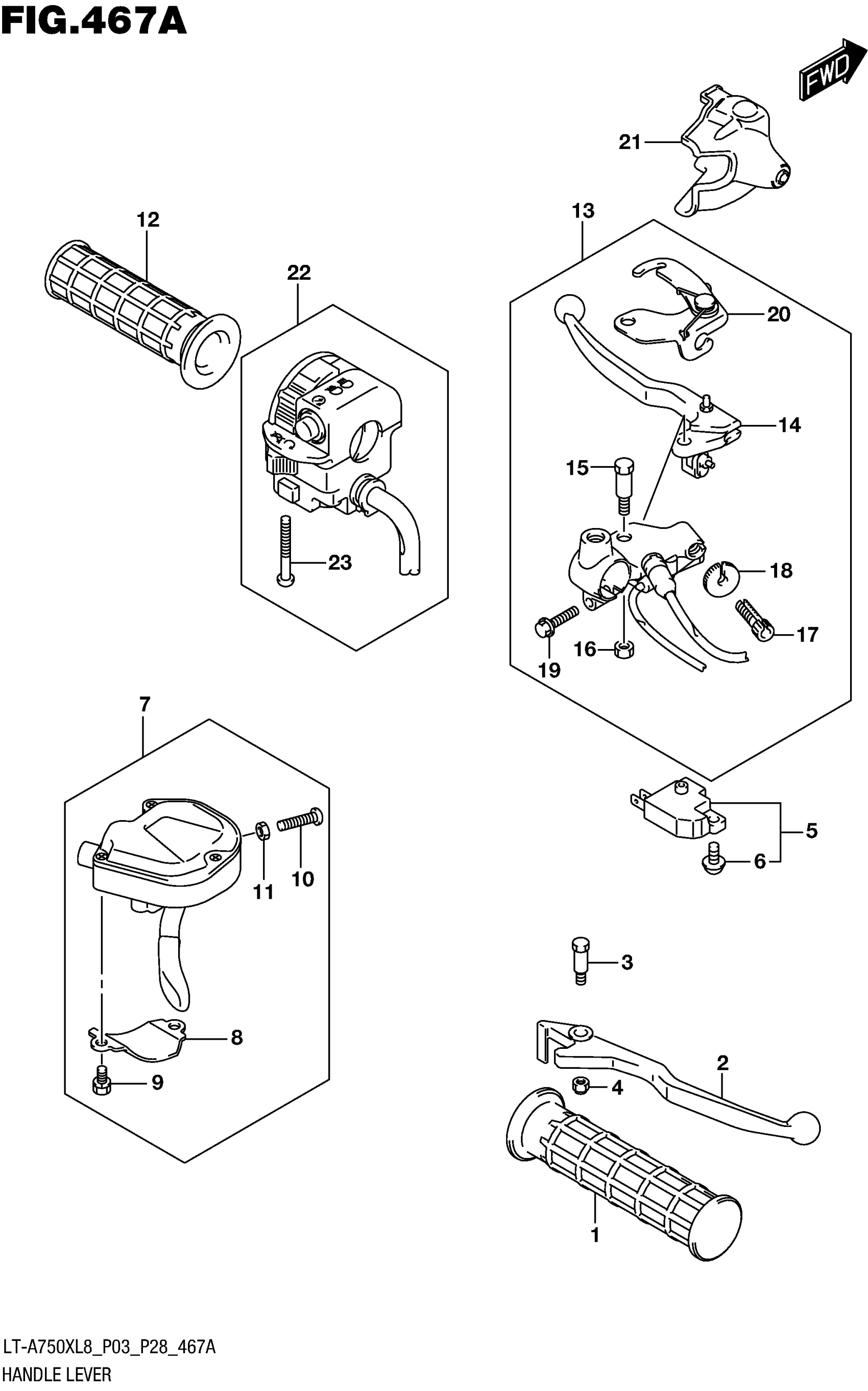

Find the part on the Handle Lever diagram for your 2018 Suzuki LT-A750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki LT-A750X Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

57211-21G10

1
Out of stock

2

LEVER,FRONT BRAKE

57421-39D20

1
Out of stock

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

1
Out of stock

4

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

1
Out of stock

6

.SCREW

57465-17C00

1
Out of stock

7

CASE ASSY,THROT This part replaces 57100-27H11.

57100-27H13

1
Out of stock

8

.HOLDER

57126-07G00

1
Out of stock

9

.BOLT

57127-07G00

2
Out of stock

10

.SCREW

02112-0520B

1
Out of stock

11

NUT This part replaces 08310-0005B.

08310-0005A

1
Out of stock

12

GRIP

57211-21G10

1
Out of stock

13

LEVER SET,REAR BRAKE This part replaces 57501-27H10.

57501-27H12

1
Out of stock

14

.LEVER SET,BRAKE

57620-27820

1
Out of stock

15

.BOLT,PIVOT

57431-09F00

1
Out of stock

16

.NUT

08319-2106A

1
Out of stock

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

19

..BOLT

01547-0620B

1
Out of stock

20

.STOPPER,BRAKE LEVER

57790-38FA0

1
Out of stock

21

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

1
Out of stock

22

SWITCH ASSY, LH

37400-31G00

1
Out of stock

23

.SCREW

02112-0535B

2
Out of stock
