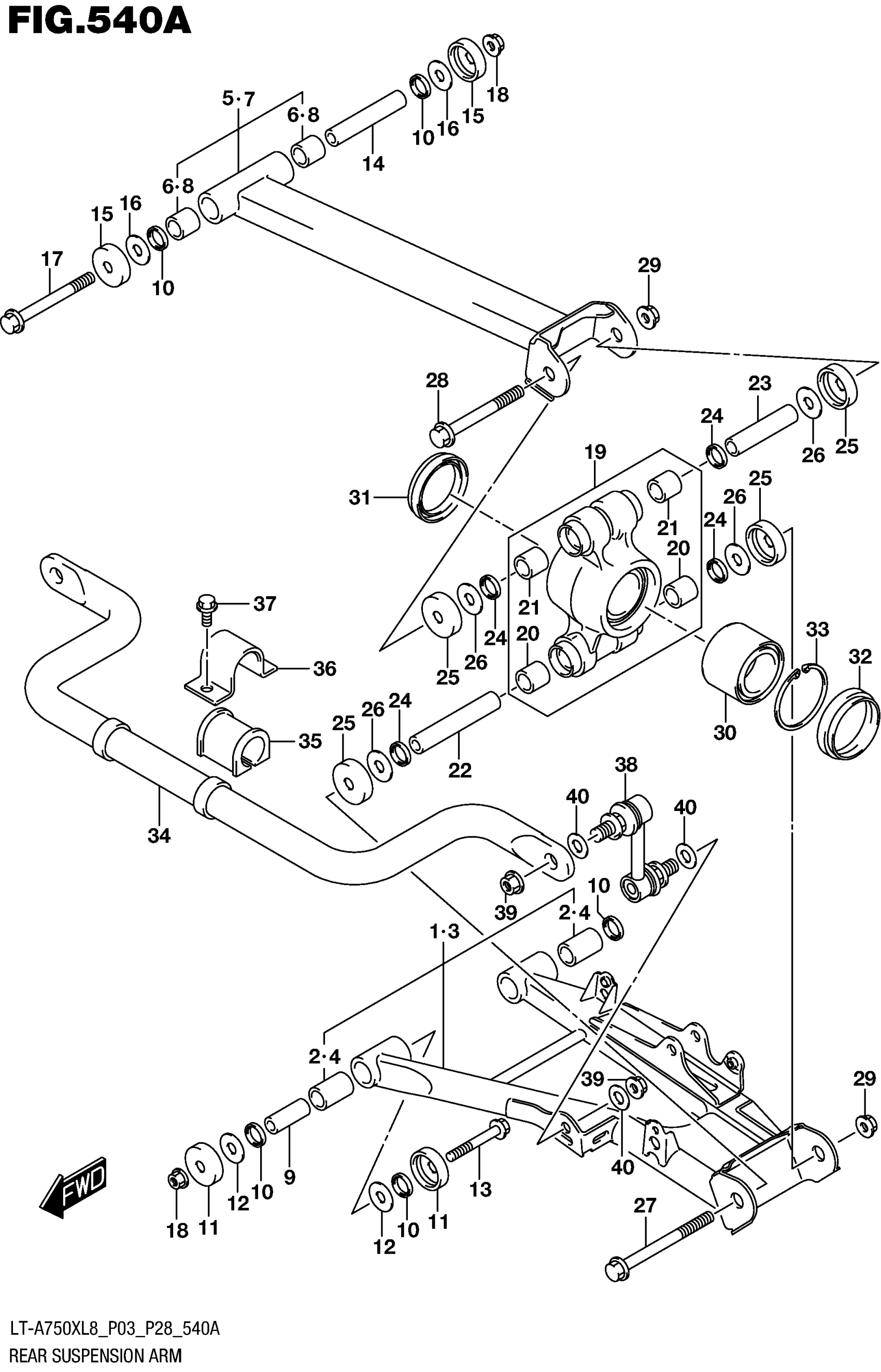

Suzuki LT-A750X (2018) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION LOW RH

61510-31821

$375.42

2

.BUSH, RR SPNSN ARM LOWER

51236-31G00

$16.56

3

ARM SET, RR SUSPENSION LOW LH

61520-31821

$382.52

4

.BUSH, RR SPNSN ARM LOWER

51236-31G00

$16.56

5

ARM SET, RR SUSPENSION UP RH

61530-31830

$249.18

6

.BUSH, RR SPNSN ARM UPPER

51236-31G00

$16.56

7

ARM SET, RR SUSPENSION UP LH

61540-31830

$244.46

8

.BUSH, RR SPNSN ARM UPPER

51236-31G00

$16.56

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$20.82

10

SEAL, RR SPNSN ARM INNER DUST

52454-45G00

$7.32

11

SEAL, RR SPNSN ARM LOWER DUST

51255-18900

$4.28

12

WASHER

08211-10281

$2.13

13

BOLT (10X70)

09103-10392

$4.55

14

SPACER, RR SPNSN ARM UPPER

61554-31G00

$19.35

15

SEAL, RR SPNSN ARM UPPER DUST

51255-31G00

$16.55

16

WASHER

08211-10281

$2.13

17

BOLT (10X120)

09103-10388

$5.64

18

NUT

09159-10115

$3.31

19

KNUCKLE SET, RR SUSPENSION

61600-31830

$409.48

20

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.56

21

.BUSH, RR KNUCKLE UPPER

61551-31G10

$16.77

22

SPACER, RR KNUCKLE LOWER

61554-31G00

$19.35

23

SPACER, RR KNUCKLE UPPER

61553-31G10

$23.48

24

SEAL, RR KNUCKLE INNER DUST

52454-45G00

$7.32

25

SEAL, RR KNUCKLE DUST

51255-18900

$4.28

26

WASHER

08211-10281

$2.13

27

BOLT (10X120)

09103-10388

$5.64

28

BOLT (10X96)

09103-10387

$8.48

29

NUT

09159-10115

$3.31

30

BEARING, RR HUB This part replaces 43440-58J00.

43440-58J01

$71.62

31

SEAL, REAR HUB INNER DUST

61615-31G00

$20.05

32

SEAL, REAR HUB OUTER DUST

61616-31G00

$17.79

33

CIRCLIP

08331-4162A

$3.69

34

BAR, RR STABILIZER

61651-31G10

$243.83

35

BUSH, RR STABILIZER This part replaces 61652-31G20.

61652-34K00

$6.91

36

PLATE, RR STABILIZER

42415-66D00

$11.83

37

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.39

38

JOINT, RR STABILIZER

61660-31G20

$77.54

39

NUT

09159-10223

$4.90

40

WASHER (10.5X22X2.3)

09160-10039

$2.31
