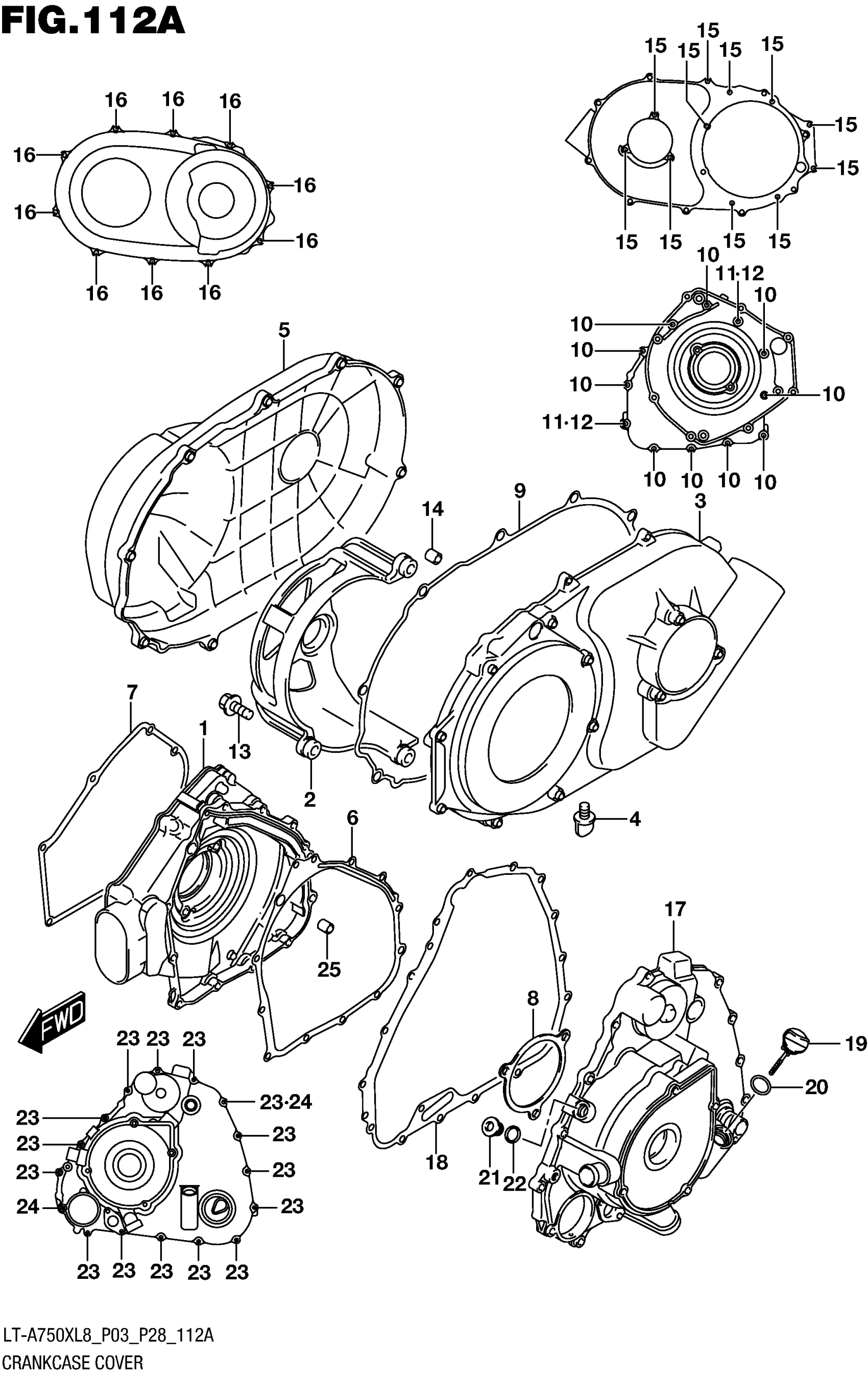

Suzuki LT-A750X (2018) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH This part replaces 11341-31G00.

11341-31G02

$232.70

2

HOUSING,V-BELT BEARING

11342-31G00

$105.51

3

COVER,V BELT INNER

11370-31G00

$209.15

4

PLUG, WATER DRAIN

11375-31G00

$3.96

5

COVER,V BELT OUTER

11380-31G00

$139.04

6

GASKET, CLUTCH COVER

11482-31G00

$13.36

7

GASKET, V-BELT COVER INNER FR

11484-31G00

$22.37

8

GASKET, V-BELT COVER INNER RR

11485-31G00

$7.51

9

GASKET, V-BELT COVER OUTER

11486-31G00

$23.16

10

BOLT

01547-0625A

$2.09

11

BOLT

01547-0635A

$2.38

12

PIN

04211-11169

$1.82

13

BOLT

01547-0635A

$2.38

14

PIN

04211-09149

$1.70

15

BOLT

01547-0625A

$2.09

16

BOLT

01547-0625A

$2.09

17

COVER,MAGNETO

11350-31G01

$444.97

18

GASKET, MAGNETO COVER

11483-31G00

$23.90

19

GAUGE,OIL LEVEL

11971-09F50

$9.36

20

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

21

PLUG

09248-14011

$2.81

22

GASKET (14X18X1.5)

09168-14014

$2.23

23

BOLT

01547-0625A

$2.09

24

BOLT

01547-0635A

$2.38

25

PIN

04211-11169

$1.82
