2018 Suzuki LT-A750X CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2018 Suzuki LT-A750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

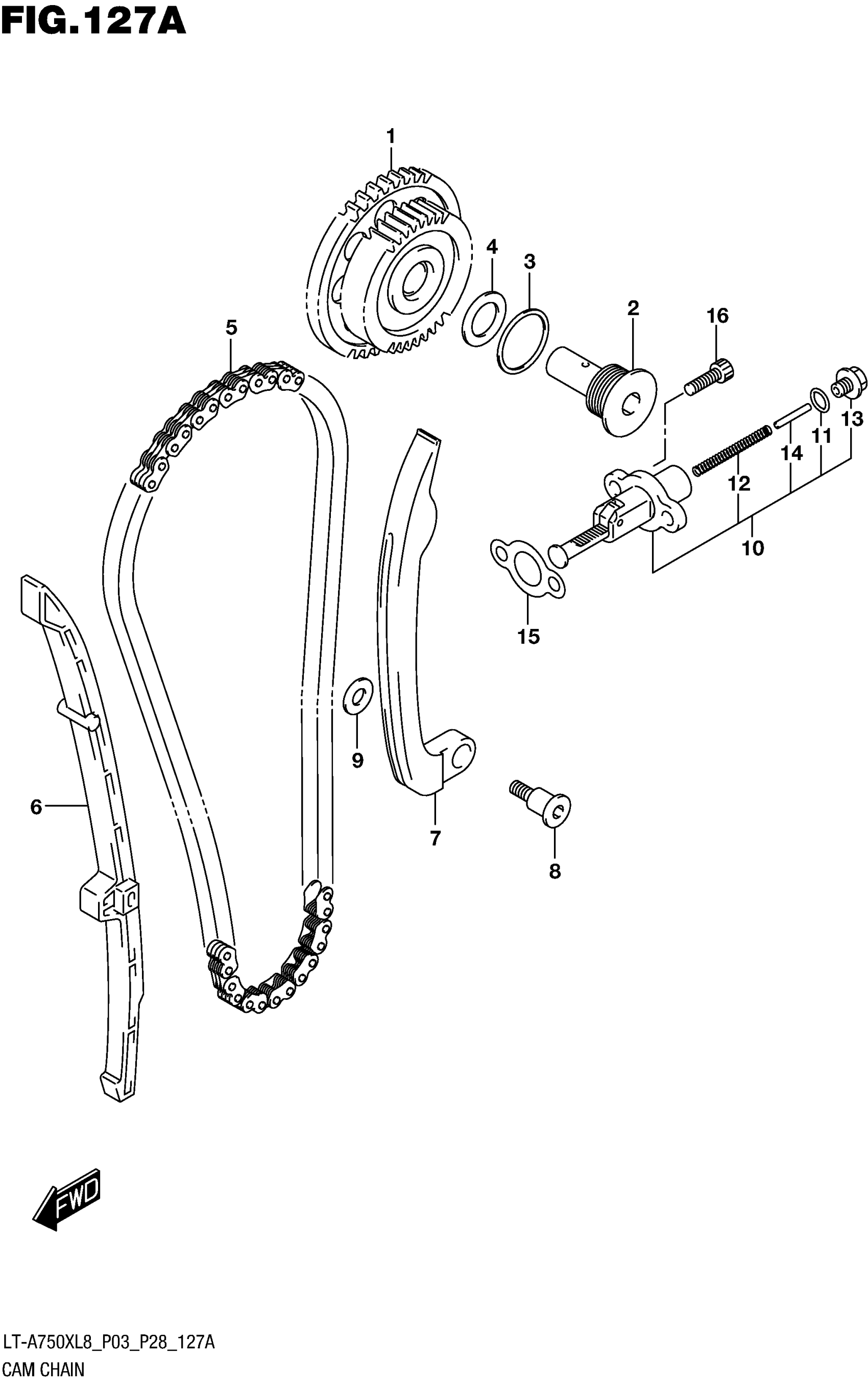

2018 Suzuki LT-A750X CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, CAM CHAIN IDLER

12750-31G00

1
Out of stock

1

(NT:41/44)

12750-31G00

1
Out of stock

2

SHAFT, CAM CHAIN IDLER GEAR

12755-02F01

1
Out of stock

3

GASKET (26.5X30.5X1)

09168-26001

1
Out of stock

4-1

SHIM (T:0.9)

09181-15164

1
Out of stock

4-2

SHIM (T:1.0)

09181-15166

1
Out of stock

4-3

SHIM (T:1.1)

09181-15172

1
Out of stock

4-4

SHIM (T:1.2)

09181-15176

1
Out of stock

4-5

SHIM (T:1.3)

09181-15181

1
Out of stock

4-6

SHIM (T:1.4)

09181-15182

1
Out of stock

5

CHAIN, CAMSHAFT DRIVE

12760-31G00

1
Out of stock

5

(92RH2015-126)

12760-31G00

1
Out of stock

6

GUIDE,CAM CHAIN

12771-31G00

1
Out of stock

7

TENSIONER,CAM CHAIN This part replaces 12811-31G00.

12811-31G01

1
Out of stock

8

BOLT, CAM CHAIN TENSIONER

12812-31G00

1
Out of stock

9

WASHER

08211-08202

1
Out of stock

10

ADJUSTER ASSY, TENSIONER

12830-19B02

1
Out of stock

11

.O RING

12832-02A00

1
Out of stock

12

.SPRING

12833-19B00

1
Out of stock

13

.PLUG

12834-19B00

1
Out of stock

14

.BAR

12835-19B00

1
Out of stock

15

.GASKET,TENSIONER ADJUSTER

12837-19B10

1
Out of stock

16

BOLT

07130-0620A

2
Out of stock
